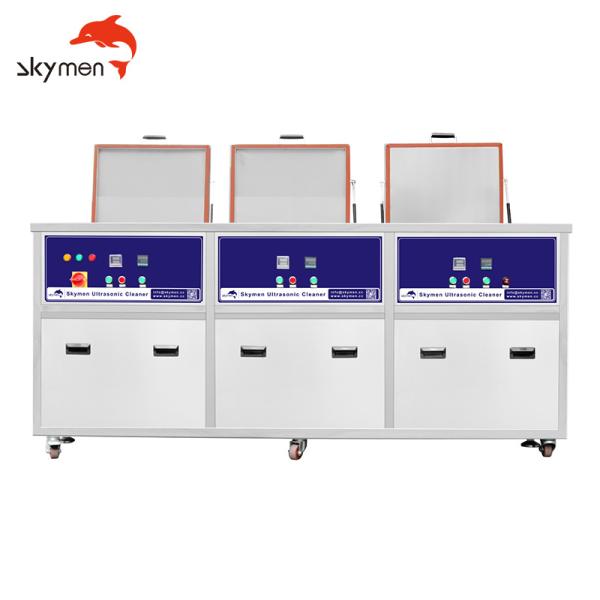

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell
38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell
38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell
38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell
38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell
38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell
Specifications
Brand Name :
skymen
Model Number :
JP-3024GH
Certification :
CE, ROHS, FCC, PSE, SGS, ISO9001
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100 units per month
Delivery Time :
In Stock
Packaging Details :
wooden case: 2650*1350*1250mm
Fuel :
Electric
Tank size :
500x300x250 mm
Use :
Degreasing
Heating power :
1500W
Cleaning process :
Hot Water Cleaning,Solvent Cleaning
Ultrasonic Power (w) :
600W
Frequency :
28KHz/40KHz
Tank capacity :
38L
Description

3 Tanks Cleaning Rinsing Drying Function 28Khz 40Khz Ultrasonic Cleaning Machine

Product Description

1.Automatic frequency tracking generator MCU-SWEEP drive, modular design of the whole machine, easy to operation, convenience to maintenance

2.Digital controlled Dispaly, one-button to start degassing, can quick remove the air in water,and have strong ultrasonic effect, 3.20-100 ℃ heating temperature adjustable, 0-100% ultrasonic power adjustable, cleaning time can be adjusted in minutes or hours to meet the cleaning requirements of different products, constant power output, ultrasonic effect homogeneous and strong,

4.High Q ultrasonic transducers, high strength glue bonding,have higher ultrasonic transfer efficiency and longer service life, the tank body is welded by SUS304 2.0-2.5mm, the vibration surface is plated with environmental protection chromium treatment, when the machine has no liquid level protection, the ultrasonic work will have abnormal alarm function

5.Pass 2500V high voltage test, strict production process and aging process,have mute cover/ 304 stainless steel washing basket, etc.and certificated by CE/ROSH/FCC

6. Additional flitration and circulation, automatic basket lifting system can be added too.

Product parameters

Specification Ultrasonic Frequency 40K Hz or 28KHz
Material Stainless Steel SUS304
Tank thickness 2 mm
Ultrasonc Tank Capacity 38L
Rinsing Tank Capacity 38L
Drying tank capacity 38L
Timer 1~99Hours adjustable
Heater 20°C to 95°C adjustable
Machine voltage AC 220V/380V, 3phases , Or other
Generator voltage AC 110V/220V, 1phase
cleaning tank ultrasonic 600W
Rinsing tank ultrasonic 600W
Drying tank ultrasonic /
Cleaning tank heater 1500W
Rinsing tank heater 1500W
Drying tank heater 30000W
Drain valve 1 inch
Packing Ultrasonic Tank Size 500*300*250mm ( L x W x H )
Rinsing Tank size 500*300*250mm ( L x W x H )
Drying Tank size 500*300*250mm ( L x W x H )
Unit Size 2300*1100*1000mm
Package Size Wooden case 2650*1350*1250mm
N.W. / G.W. 324 kg /430 kg
Warranty 1 year

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell

If you have any inquiry or problem, please directly contact me to know your need.

38L Tank Degreasing Ultrasonic Cleaner 3 Tanks AC380V For Metal Shell
