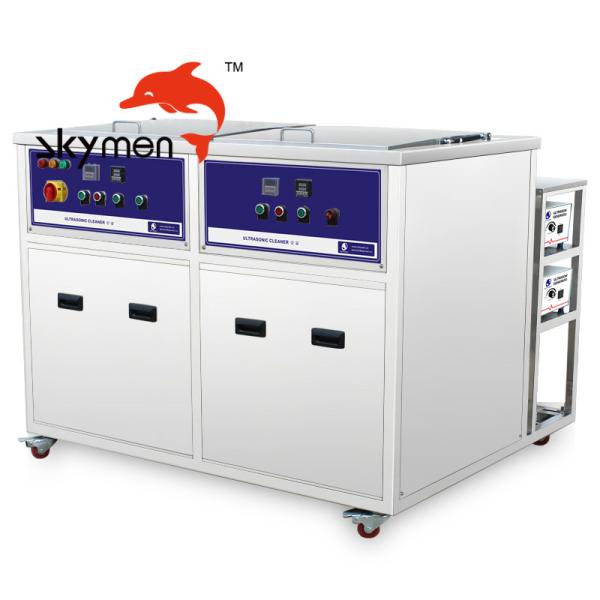

77L Industrial Ultrasonic Cleaner 1200W Bottles / Oven Tray With Drying System 28/40KHz
77L Industrial Ultrasonic Cleaner 1200W Bottles / Oven Tray With Drying System 28/40KHz
Specifications
Brand Name :
Skymen
Model Number :
JP-2024H
Certification :
RoHS, CE, FCC, SGS
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
800 pcs per month
Delivery Time :
In Stock
Packaging Details :
Wooden case
Model :
JP-2024H
First tank volume :
77L
First tank size :
550X400X350mm
Transducers :
24pcs; 50W of every transducer
Ultrasonic Power :
1200W
Heating Power :
3000W
Heating power of dryer :
750W
Frequency :
28/40KHz
Description

77L Ultrasonic Cleaner 1200W bottles, Oven tray Wirth Drying System 28/40KHz

Same series with different size for your choice:

Model Size of every tank Tank Volume Ultrasonic
Power		 Heating Power of Ultrasonic tank Heating Power of drying tank Transducer
L*W*H (mm) (L) (W) (W) 750W (pcs)
JP-2012H 500X300X250 38L*2 600W 1500W 750W 12pcs
JP-2018H 500X350X300 53L*2 900W 1500W 750W 18pcs
JP-2024H 550X400X350 77L*2 1200W 3000W 750W 24pcs
JP-2030H 550X450X400 99L*2 1500W 3000W 750W 30pcs
JP-2036H 600X500X450 135L*2 1800W 4500W 750W 36pcs
JP-2048H 700X500X500 175L*2 2400W 6000W 750W 48pcs
JP-2060H 800X600X550 264L*2 3000W 6000W 750W 60pcs
JP-2072H 1000X600X600 360L*2 3600W 9000W 750W 72cs
JP-2108H 1000X900X600 540L*2 5400W 18000W 1100W 108pcs
JP-2144H 12000*1000*800 960L*2 7200W 24000W 1500W 144pcs


Specification

Model JP-2024H
1st Tank Volume 77L
2nd Tank Volume 77L
First tank size 550X400X350mm
Second tank size 550X400X350mm
Transducers 24pcs 50W of every transducer
Ultrasonic Power 1200W
Heating Power of Ultrasonic tank 3000W
Heating Power of Drying tank 750W
Frenquency 28KHz/40KHz
Drying System 1 set
Unit size 1550*600*950mm
Packing size 1610*660*1070mm
Timer 0~99 minutes adjustable
Heater Room temperature~99℃ adjustable
Material SUS 304 default, can be SUS 316
Power Supply AC 220V 3 phase ; AC 380V 3 phase
N.W. 185G
G.W.

200KG Wrapped by film in wooden case
Lead time 18 working days
Warranty 1 year warranty period, technique support all time
Certificates CE, RoHS, FCC, SGS
Advantage Filter the dirty water; keep the water clear in tank; lower the frequency of changing water


Images:
77L Industrial Ultrasonic Cleaner 1200W Bottles / Oven Tray With Drying System 28/40KHz
Clean effect:

77L Industrial Ultrasonic Cleaner 1200W Bottles / Oven Tray With Drying System 28/40KHz
77L Industrial Ultrasonic Cleaner 1200W Bottles / Oven Tray With Drying System 28/40KHz

How do I know what size of ultrasonic cleaner is best for my operation?
The two points you should think about,

● How about your cleaning volume? For very little small part, a table top ultrasonic are able to do this job. For large size and huge volume, you should consider industrial ultrasonic cleaner , for highest cleanness level , multi-stage ultrasonic cleaning system are recommend.

● The size of cleaning object, it can fit in the basket fully immersed under water.

RFQ

Q: How to control the cleaning time?

A: Generally, 3minutes is enough for daily goods clean.

Q: Does ultrasonic cleaner damage the articles?

A: Ultrasonic cleaning is considered safe for most parts; although in some cases it is necessary to observe caution. Although the effect of thousands of implosions per second is very powerful, the cleaning process is safe.

Q: What about after-sale service?

A: our company provides 1 Year warranty. If any technical problem during warranty time, replacement parts will be sent free of charge. After warranty time, technical support is also available for every customer.

Q: What kind of cleaning solution should I use?

A: A large variety of different formulas designed for specific applications. Proper selection is crucial for acceptable cleaning activity and to prevent unwanted reactions with the work piece.
