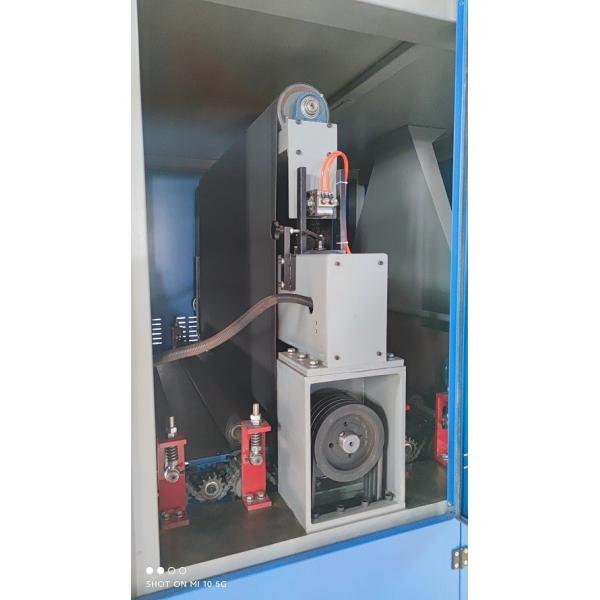

3.9ton Metal Wide Belt Sander For Polishing / Finishing / Slag Removal
3.9ton Metal Wide Belt Sander For Polishing / Finishing / Slag Removal
3.9ton Metal Wide Belt Sander For Polishing / Finishing / Slag Removal
3.9ton Metal Wide Belt Sander For Polishing / Finishing / Slag Removal
3.9ton Metal Wide Belt Sander For Polishing / Finishing / Slag Removal
3.9ton Metal Wide Belt Sander For Polishing / Finishing / Slag Removal
Specifications
Brand Name :
SKD
Model Number :
MS13RR
Place of Origin :
China
Name :
Metal Wide Belt Sander
Type :
Sanding
Function :
Deburring, Grinding, Slag Removal, Finishing
Max Working Width :
1350mm
Weight :
3.9 ton
Table Lifting Motor :
1.5kw
MOQ :
1 set
Price :
USD10000-350000
Packaging Details :
Shrink Wrapped or Woodcase
Delivery Time :
20-60 days
Payment Terms :
TT
Supply Ability :
70-100set per year
Description

Metal Wide Belt Sander

General Description
This is a metalworking wide belt sander for deburring, sanding,polishing, finishing, slag removal and texturing.With 2 powerful sanding drums and vacuum sucking work-table, the metal wide belt sander can process wide metal sheets, plates,middle and small size metal work-piece in an effective way for deburring, grinding and finishing.With a quick change of the abrasive belt, this metal wide belt sander can do slag removal and oxide removal of the metal parts done by plasma cut or flame cut .
The metal wide belt sander is designed for one wide part or multi smaller parts processed in a production line or in an independent way. Vacuum sucking work-table can fix minimum 100mm smaller parts on the conveyor belt to insure a good deburring or finishing.Either high productivity in a flow line or reliable effects for smaller parts, this metal wide belt sander will not let you down, but saving labor and time.
FEATURES
  • 1350mm max working width
  • Digital thickness readout for conveyor height
  • Control panel with motor load meter,digital readout
  • Electronic abrasive belt tracking
  • Pneumatic abrasive tensioning
  • High quality contact drum
  • Robust welded frame
SPECIFICATIONS

  1. Power supply: 380v 50Hz or on request
  2. Dust port size: drum 150mm x 6, space 100mm x 4
  3. Automatic Thickness Control: Yes (Thickness or)
  4. Foot Print: 51-1/2″ x 19″
  5. Sanding Belt Oscillation: Yes
  6. Sanding Belt Motor Break: Yes
  7. Conveyor Opening 0-80mm
  8. Floor to Table Height 900-990mm
  9. Conveyor Drive Motor 5.5kw
  10. Feed Speed 5-25 meter per minute variable
  11. Dimension 2200x2500x2300mm WxDxH
  12. Weight 3.9 ton
  13. Work piece Max Width 1350mm
  14. Work piece Max Thickness 60mm
  15. Work piece Min. Length 100mm
