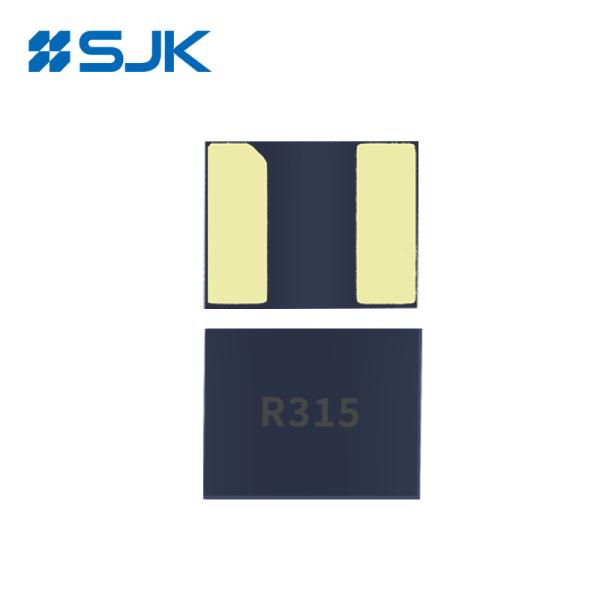

433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices
433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices
433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices
433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices
Specifications
Brand Name :
SJK
Model Number :
433.92MHz One-Port SAW Resonators
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
3000pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30K pcs per Month
Delivery Time :
2~4weeks
Packaging Details :
3000pcs /Reel
Nominal Frequency :
433.92MHz
Frequency Tolerance :
+/-150KHz
Insertion Loss :
1.3dB Typ.
Quality Factor :
12000
Turnover Temperature :
25℃ Typ.
Frequency Temperature Coefficient :
0.032ppm/℃
DC Insulation Resistance between Any Two Pins :
1.0MΩ min.
Operating Temperature Range :
-40°C to +85°C
Size :
1.8x1.4x0.9mm
Rohs Compliant :
Yes
Description

433.92MHz One Port SAW Resonator SMD1814 Size High Stability and Reliability Applicationfor Remote Control etc

Features:

  • One-port Resonator
  • CSP Package for Surface Mounted Technology (SMT)
  • RoHS compatible
  • Package size 1.80x1.40x0.90mm
  • Electrostatic Sensitive Device(ESD)

Specifications:

Item Minimum Typical Maximum Unit
Center Frequency Absolute Frequency fc 433.770 433.920 434.070 MHz
Tolerance from 433.920MHz △fc ±150 KHz
Insertion Loss(min) IL 1.3 2.2 dB
Quality Factor Unloaded Q QU 12000
50Ω Loaded Q QL 1500
Temperature Stability Turnover Temperature T0 10 25 40 ℃
Turnover Frequency f0 fc
Frequency Temperature Coefficient FTC 0.032 ppm/℃
Frequency Aging Absolute Value during the First Year |fA| ≤10 ppm/yr
DC Insulation Resistance between Any Two Pins 1.0 MΩ
RF Equivalent RLC Model Motional Resistance RM 12.196 Ω
Motional Inductance LM 183.82 μH
Motional Capacitance CM 0.733 fF
Static Capacitance C0 2.23 pF

Dimensions And Soldering Plattern:

433.92MHz One Port SAW Resonator SMD1814 Size High Stability for Remote Control Devices
