MCF 3 Pole Monolithic Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃
MCF 3 Pole Monolithic Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃
MCF 3 Pole Monolithic Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃
MCF 3 Pole Monolithic Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃
Specifications
Brand Name :
SJK
Model Number :
SJK-45MQ15BA6
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
70KKpcs/M
Delivery Time :
4-6 wks
Packaging Details :
1Kpcs/Reel
Model :
CF Series 3-Pole SMD Filter
Pole :
3
Nominal frequency :
45MHz
Pass bandwidth :
±15KHz min./3dB
Insertion loss :
3dB max.
Size :
7.0*5.0*1.3mm
Applications :
Radio communications, Cordless phones, Wireless communications, etc
Description

MCF 3-Pole Crystal Filter 7050 45MHz With ±15KHz Min/3dB -20~+70℃

Features

Typical 7.0×5.0×1.3mm, light weight and miniature SMD monolithic crystal filter

3 Pole function in a single package

Excellent guaranteed attenuation

Excellent shock and vibration resistance

Automatic mounting and reflow soldering

Applications: Radio communications, Mobile communications, Cordless phones, Cellular, Wireless communications, etc

RoHS Compliant / Pb-Free

Specifications

Type CF Series 3-Pole SMD Monolithic Filter
Nominal Frequency 45.000MHz
Pole 3
Overtone Order Fundamental
Pass Bandwidth ±15KHz min./3dB
Stop Bandwidth ±50KHz min./20dB
Ripple 1dB max.
Insertion Loss 4.0dB max.
Guaranteed Attenuation 80dB min.
Terminating Impedance 600Ω//2pF
Operating Temperature -20~+70℃, or specify
Packing Unit 1000pcs./reel

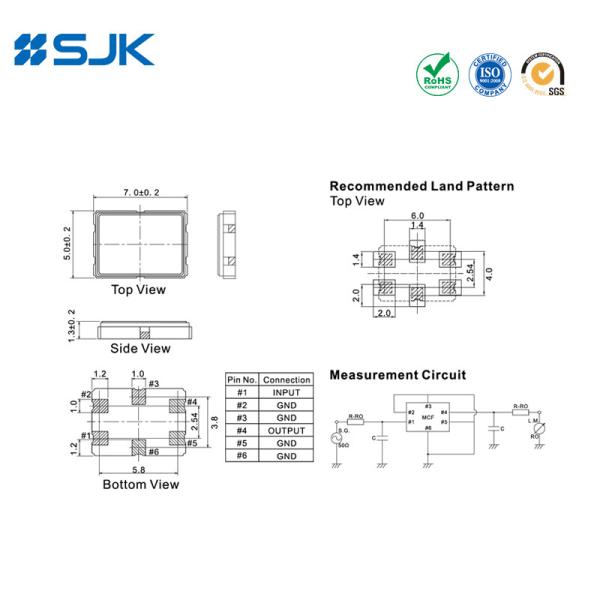

Dimensions [mm]
