SMD 7050 VCXO With LVPECL Output 50.000MHz 3.3V For PC Application
SMD 7050 VCXO With LVPECL Output 50.000MHz 3.3V For PC Application
SMD 7050 VCXO With LVPECL Output 50.000MHz 3.3V For PC Application
SMD 7050 VCXO With LVPECL Output 50.000MHz 3.3V For PC Application
Specifications
Brand Name :
SJK
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
70KKpcs/M
Delivery Time :
4-6 wks
Packaging Details :
1Kpcs/Reel
Model :
7P Series (SMD 7050 LVPECL VCXO)
Frequency range :
50~700MHz
Output type :
LVPECL
Supply voltage :
3.3V
Size :
7.0u00d75.0u00d71.3mm
Applications :
PC, Base station, Ethernet, SONET, Sever, etc
Description

SMD 7050 VCXO With LVPECL Output 50.000MHz 3.3V For PC Application

Features of 7P Series SMD 7050 LVPECL VCXO

Voltage Controlled Crystal Oscillator (VCXO)

7050 size, 1.3mm hign, SMD 7050 LVPECL VCXO

LVPECL output, output frequency range from 50MHz to 700MHz

Excellent low phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Electrical Specifications Of 7P Series SMD 7050 LVPECL VCXO

Item /Type 7P Series (SMD 7050 LVPECL VCXO)
Output Type LVPECL
Output Load 50Ω to Vcc-2V
Supply Voltage 3.3V
Frequency Range 50~700MHz
Supply Current 99mA Max.
Frequency Stability ±25ppm, ±50ppm, or specify
Operating Temperature -40~+85℃, or specify
Storage Temperature -55~+125℃
Voltage Vol (Max.) /Voh (Min.) Vcc-1.62V /Vcc-1.025
Rise (Tr) /Fall (Tf) Time 1ns Max.
Start-up Time 10ms Max.
Duty Cycle 45~55%
Absolute Pulling Range (APR)* ±50ppm Min., or specify
Nominal Control Range 0.5 Vcc
Control Voltage Range 0~Vcc
Lineartiy 10% Max.
Phase Jitter (12KHz~20MHz) 10pS Max.
Packing Unit 1000pcs./Reel

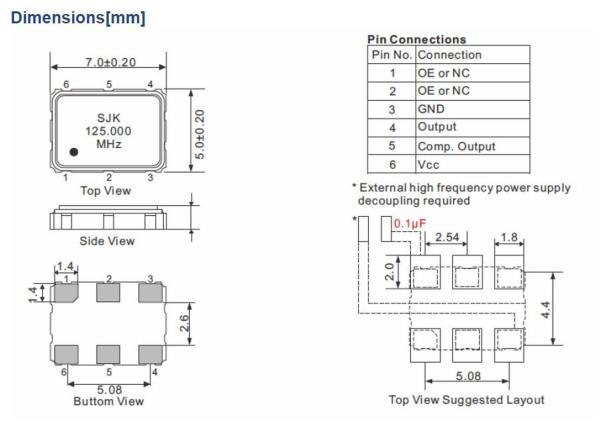

Dimensions[mm]
