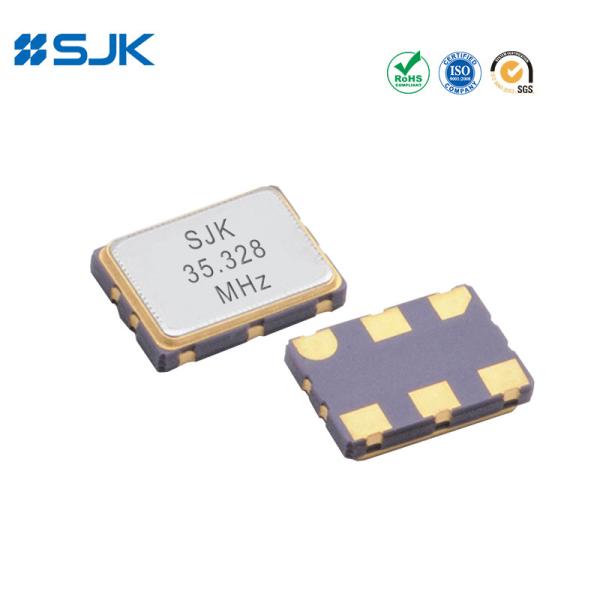

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃
SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃
SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃
SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃
Specifications
Brand Name :
SJK
Certification :
SGS, RoHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
70KKpcs/M
Delivery Time :
4-6 wks
Packaging Details :
1Kpcs/Reel
Model :
6S Series (SMD 7050 VCXO)
Frequency range :
1~200MHz
Output type :
CMOS
Supply voltage :
3.3V/5V
Size :
7.0*5.0*1.3mm
Applications :
PC, Base station, Ethernet, SONET, Sever, etc
Pins Number :
6 Pins
Description

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃

Features

Voltage Controlled Crystal Oscillator (VCXO)

7050 size, 1.3mm high, SMD 7050 VCXO

CMOS output, output frequency range from 1MHz to 200MHz

Excellent low-phase noise and jitter

3-state function available

Automatic mounting and reflow soldering

Applications: Base station, Server, Communications, Ethernet, SONET, Femtocell, etc

RoHS Compliant /Pb-Free

Specifications

Type 6S Series (SMD 7050 VCXO)
Output Type CMOS
Output Load 15pF, or specify
Supply Voltage 3.3V
Frequency Range 1~200MHz
Supply Current 60mA Max.
Frequency Stability ±25ppm, ±50ppm, or specify
Operating Temperature -40~+85℃, or specify
Storage Temperature -55~+125℃
Voltage Vol (Max.) /Voh (Min.) 0.1Vcc /0.9Vcc
Rise (Tr) /Fall (Tf) Time 5ns Max.
Start-up Time 10ms Max.
Duty Cycle 45~55%
Absolute Pulling Range (APR)* ±50ppm Min., or specify
Nominal Control Range 0.5 Vcc
Control Voltage Range 0~Vcc
Linearity 10% Max.
Phase Jitter (12KHz~20MHz) 1pS Max.
Packing Unit 1000pcs./Reel

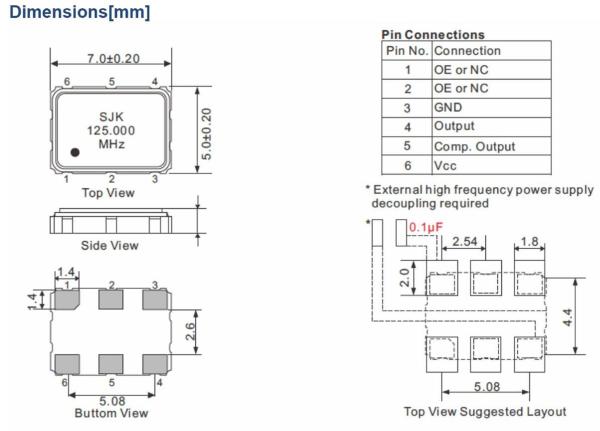

Dimensions [mm]

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃+86-755-88352869

SMD 7050 VCXO CMOS 1-200MHz 3.3V ±25ppm -40~+85℃rita@q-crystal.com
