SMD 1610 Tuning Fork crystal 32.768KHz 12.5pF for RTC,IoT application
SMD 1610 Tuning Fork crystal 32.768KHz 12.5pF for RTC,IoT application
SMD 1610 Tuning Fork crystal 32.768KHz 12.5pF for RTC,IoT application
SMD 1610 Tuning Fork crystal 32.768KHz 12.5pF for RTC,IoT application
Specifications
Brand Name :
SJK
Model Number :
SMD 1610 7K 32.768kHz
Place of Origin :
China
MOQ :
3000 pieces
Price :
$0.25 - $0.32/pieces
Type :
Tuning Fork crystal
Operating Temperature Range (°C) :
-20~+70℃,-40~+85℃
Dimension :
1610
Package Type :
SMD
Frequency Tolerance :
±20ppm,or specify
Load Capacitance :
12.5pF,other spec
Frequency Range :
32.768kHz
Frequency :
32.768kHz
Frequency Stability :
±20ppm
Mounting Type :
Surface Mount
Application level :
Industrial & Consumer
Description :
SJK
Description

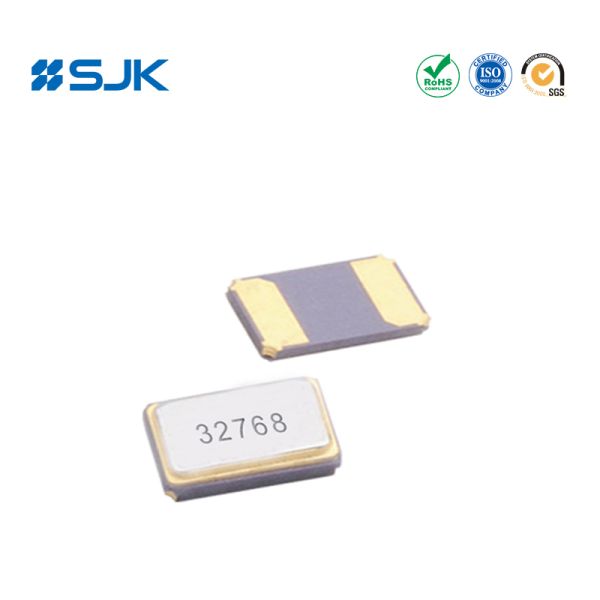

SMD 1610 Tuning Fork crystal 32.768KHz 12.5pF for RTC,IoT application

7K 32.768 kHz SMD Crystal

Frequency Range: 32.768 kHz

Overtone: Fundamental Size: 1.6×1.0×0.5 mm

Application: Small communication device, Clock and more.

Specifications and Dimensions

Features:

· 2 pads surface mount package

· 1610 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.5mm.

· High reliable environmental performance.

· Automatic mounting and reflow soldering.

· Application for small communication device, Clock, Wireless communication, Telecommunication, Wave clock, RFID products and more.

· RoHS Compliant /Pb-Free

· Electrical Specifications:

Item /Type

7K (1610 SMD 32.768kHz Crystal Unit)

Frequency Range

32.768kHz

Frequency Tolerance

±20ppm, or specify

Load Capacitance

12.5pF, or specify

Operating Temperature

-20~+70℃, -40~+85℃

Storage Temperature

-55~+125℃

Turnover Temperature

±25℃±5℃

Parabolic Coeffcient

(0.03±0.01)*10-6/℃2

Drive Level

0.5μW Max.

Shunt Capacitance

1.3pF Typ.

Aging (at 25℃)

±3ppm at first year

Series Resistance

90KΩ Max.

Packing Unit

3000pcs. /Reel

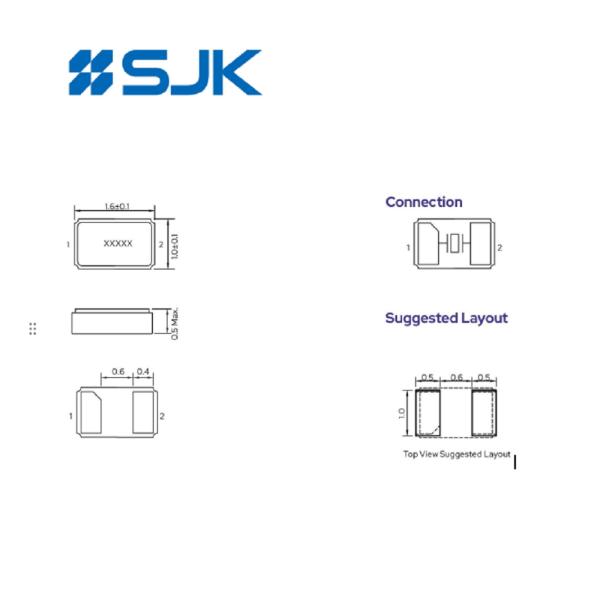

Dimensions [Units: mm]

SMD 1610 Tuning Fork crystal 32.768KHz 12.5pF for RTC,IoT application

REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
