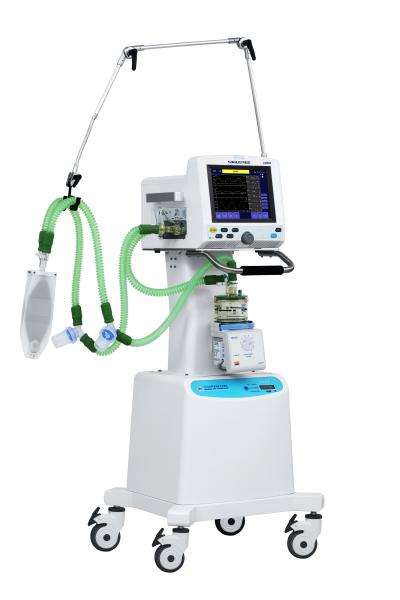

Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Medical Siriusmed R30 Ventilator With TFT Color Touch Screen
Specifications
Brand Name :
R30P
name :
medical portable touchscreen siriusmed ventilator
keyword :
siriusmed ventilator
Power Source :
Electric
Material :
Metal, Plastic
Warranty: :
1 Year
Instrument classification :
Class III
Widely usage range :
Suitable for infants and adults
Tidal Volume setting :
20~2500mL
Sufficient modes of Ventilation: :
VCV, PCV, SIMV-VC, SIMV-PC, SPONT/CPAP+PSV, DuoPhasic
Friendly user interface: :
TFT color screen with touch screen
Description

Ventilator R30P- Sufficient Modes Of Ventilation:VCV, PCV, SIMV-VC+PSV, SIMV-PC+PSV, SPONT/CPAP+PSV, BACKUP, Manual

Good integration:

  • Built-in active expiratory PEEP valve
  • Built-in O2 & Air mixture device
  • Built-in synchronized nebulizer
  • Built-in battery (≥ 90 mins)
  • Optional etCO2 , SPO2 monitoring module
  • Lung mechanics parameters and loops
  • Inspiratory hold with static compliance measurements
  • Manual inspiration
  • 100% O2 suction
  • Nurse Call
  • 72 hours Trend
Technical Specification
Pneumatic Ventilator
R30
l Display
l Respiratory mode
l Graphical display
l Battery
l Data communication port
l 10.4”, TFT display, with touch screen
l VCV, PCV, SIMV-VC, SIMV-P, CPAP/PSV, BACKUP (Optional:Duophasic / APRV, NIV )
l P-T, F-T, V-T(Optional: CO2-time, pulserate-time)
l loop: P-V, F-V
l NI-MH battery, >120mins
l RS232, VGA, USB, Remote alarm
Operating Conditions
l Gas supply: Air, O2, 280kPa -600kPa (40~87 PSI)
l Power supply: 100-240V, 50/60Hz
l Temperature: 10-40℃ (Operation), -20-60℃ (Storage)
l Relative humidity: 5-95%, non-condensing (Operation)
≤95%, non-condensing (Storage)
l Atmospheric pressure (Operation & Storage): 500hPa-1060hPa
l Dimensions (H×W×D):
Ventilator: 455mm x 400mm x 300mm
Trolley: 565mm X 535mmX 910mm
l Weight:
Ventilator: 12.5 kg
Trolley: 20 kg
Pneumatic Ventilator
R30
l Display
l Respiratory mode
l Graphical display
l Battery
l Data communication port
l 10.4”, TFT display, with touch screen
l VCV, PCV, SIMV-VC, SIMV-P, CPAP/PSV, BACKUP (Optional:Duophasic / APRV, NIV )
l P-T, F-T, V-T(Optional: CO2-time, pulserate-time)
l loop: P-V, F-V
l NI-MH battery, >120mins
l RS232, VGA, USB, Remote alarm
Operating Conditions
l Gas supply: Air, O2, 280kPa -600kPa (40~87 PSI)
l Power supply: 100-240V, 50/60Hz
l Temperature: 10-40℃ (Operation), -20-60℃ (Storage)
l Relative humidity: 5-95%, non-condensing (Operation)
≤95%, non-condensing (Storage)
l Atmospheric pressure (Operation & Storage): 500hPa-1060hPa
l Dimensions (H×W×D):
Ventilator: 455mm x 400mm x 300mm
Trolley: 565mm X 535mmX 910mm
l Weight:
Ventilator: 12.5 kg
Trolley: 20 kg
Standards
IEC 60601-1, IEC 60601-1-2, IEC 60601-1-8, IEC 60601-2-12
Alarm
Upper limit
Lower limit
Tidal volume
Minute volume
Oxygen concentration
Airway pressure
Respiratory frequency
SPO2
ETCO2
Pulse rate
20~3000 mL
1~99 L
22~100%, OFF
1~99 cmH2O
1~120 bpm
50~99%, OFF
0.1~13.3 kPa
31~250 bpm
OFF,20~2999 mL
0~98 L
20~100%
0~98 cmH2O
0~99 bpm
49~99%
0~13.2 kPa
30~249 bpm
Circuit occlusion
Apnea alarm
O2 SUPPLY DOWN alarm
Mains failure alarm
Battery power low alarm
Battery discharged alarm
Alarm silence
(PEEP+15) cmH2O, 15s
15~60s
< 280 kPa
Automatically switch
< 10 min
< 5 min
≤120 s
Auxiliary O2
Auxiliary O2 Flow meter(O2: 0～15LPM) (Optional)
ACGO
Yes
O2 Flush
25-75L/Min
Battery
NI-MH battery build in.
>90mins
Yoke
2 (O2, N2O) (Optional)
Gas Cylinder
O2, N2O (Optional)
Cycle Absorber
Intergrade, bypass Design, heating system.
Setting
Parameter
Monitoring
Parameter
Tidal volume (optional 20ml)
Respiratory frequency
Inspiratory time
Breath-hold time
Pressure triggering
Flowrate triggering
PEEP
Pressure support
Pressure control
High pressure level
Low pressure level
Oxygen concentration
100% O2
Thigh (optional)
freeze
20~2500mL
1~120 bpm
0.1~12 s
0~50%
-20cmH2O~PEEP 0
0.5~20 L/min
0~50 cmH2O
0~80 cmH2O
5~80 cmH2O
5~80 cmH2O
0~50 cmH2O
21~100%
2min
0.1~30s
Yes
Inspiratory tidal volume
Expiratory tidal volume
Minute volume
Spontaneous minute volume
Spontaneous respiration frequency
PEEP
Airway peak pressure
Mean airway pressure
Inspiratory platform pressure
Minimum airway pressure
Inhaled oxygen concentration
Airway resistance
RSBI
SPO2 (Optional)
Pulse Rate (Optional)
EtCO2 (Optional)
0~4000 mL
0~4000 mL
0~99 L
0~99 L
0~120 bpm
0~100 cmH2O
0~100 cmH2O
0~100 cmH2O
0~100 cmH2O
-20~100 cmH2O
15% ~100 %
0~600 cmH2O/(L/S)
0 ~ 9999 bpm/L
70 ~ 100 %
30~250 bpm
0 ~ 100 mmHg
