Specifications
Brand Name :
Sirivision
Place of Origin :
Shenzhen,China
Model Number :
SR-ST1005
Certification :
CE, ROHS, FCC, UKCA
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Warranty :
1 Year
Forwarding Rate :
74.4Mpps
Switching Capacity :
100Gbps
Power Supply :
AC 100-240V 50/60Hz
Jumbo Frame Support :
Yes
Mounting Options :
Rack-mountable
Humidity :
10% To 90% Non-condensing
Description

Product Description:

With a forwarding rate of 74.4Mpps, this 10G Unmanaged Desktop Ethernet Switch provides fast data transfers and efficient network performance. Its internal power supply ensures that it is always ready for use and eliminates the need for external power adapters.

The 10G Unmanaged Desktop Ethernet Switch is designed to be energy-efficient. This saves you money on your electricity bill while also reducing your carbon footprint.

This 10G Unmanaged Desktop Ethernet Switch comes with a 1-year Warranty, ensuring that you are getting a reliable and high-quality product.

In summary, this 10G Unmanaged Desktop Ethernet Switch is a powerful and efficient solution for businesses that require fast and reliable network performance. Its compact size, internal power supply, and energy-efficient design make it an ideal choice for any desktop or rack mountable environment. With its good quality and 1-year Warranty, you can be confident that you are getting a high-quality product that will last for years to come.

Features:

  • Product Name: 10G Unmanaged Switch
  • Operating Temperature: 0°C To 45°C
  • Mounting Options: Rack-mountable
  • Power Supply: Internal
  • Number Of Ports: 5 100M/1000M/2.5G/5G/10G RJ45

This 10G Unmanaged Desktop Ethernet Switch is designed to operate in an office environment. It comes with 5 ports, making it ideal for small to medium-sized businesses. The switch is rack-mountable, and it has an internal power supply, making it easy to install and use. The switch can operate at temperatures ranging from 0°C to 45°C.

Technical Parameters:

Product Name 10G Unmanaged Desktop Ethernet Switch Number of Ports 5 Port Speed 10Gbps Forwarding Rate 74.4Mpps Power Supply Internal, Mounting Options Rack-mountable, Dimensions 218 X 165 X 44 Mm, Humidity 10% To 90% Non-condensing Warranty 1 year.

Technical Specification Value
Power Supply AC 100-240V 50/60Hz
Standards IEEE 802.3i,802.3u,802.3ab,802.3x,802.3az
Number of Fans 1
Ports 5 x 100M/1000M/2500M/5G/10Gbps RJ45 ports
Mounting Method Rack mounting
Network Media (Cable)

100BASE-TX:
UTP/STP of Cat. 5 or above (MAX 100 m)

1000BASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

2.5GBASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

5GBASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

10GBASE-T:
UTP of Cat 6 (MAX 55m) or STP of Cat 7 (MAX 100m)

VLAN Support Yes
Dimensions 218*165*45 mm
Port Count 5
Transfer Method Store-and-Forward
MAC Address Table 16K
Switching Capacity 100Gbps
Packet Forwarding Rate 74.4Mpps
Packet Buffer 12Mbit
Jumbo Frame 12KBytes
Environment Operating Temperature: 0℃ ~45℃ Storage Temperature: -40℃ ~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing

Applications:

The 10G Unmanaged Rackmount Switch comes with 5 ports, providing ample space for multiple devices to connect simultaneously. This switch is ideal for small to medium-sized businesses, as it offers plug-and-play functionality, which means no complicated setup is required. Just connect your devices, and you're good to go.

This switch is perfect for a variety of applications, including:

  • Small Business Networks: This switch is ideal for small business networks, such as small offices and home offices. It provides fast and reliable connectivity, ensuring smooth data transfer and seamless communication between devices.
  • Media Streaming: The 10G Unmanaged Rackmount Switch is perfect for media streaming applications such as video conferencing, online gaming, and streaming movies. With its high-speed connectivity, you can enjoy uninterrupted streaming without any lag or buffer.
  • Data Centers: This switch is also perfect for data centers that require high-speed connectivity for their servers, storage devices, and other networking equipment.
  • 10G Unmanaged Desktop Ethernet Switch: This switch can also be used as a 10G Unmanaged Desktop Ethernet Switch for small offices and home offices. Its compact size makes it easy to place on a desk or shelf, and its plug-and-play functionality ensures easy setup.
  • 10G Unmanaged Rackmount Switch: As the name suggests, this switch can be used as a 10G Unmanaged Rackmount Switch for medium-sized businesses and data centers. Its rackmount design ensures easy installation and maintenance, and its high-speed connectivity ensures fast and reliable data transfer.

The 10G Unmanaged Rackmount Switch has an operating temperature of 0°C to 45°C, making it suitable for use in a variety of environments. Its plug-and-play functionality, combined with its high-speed connectivity, makes it an ideal choice for businesses that require reliable and efficient networking solutions.

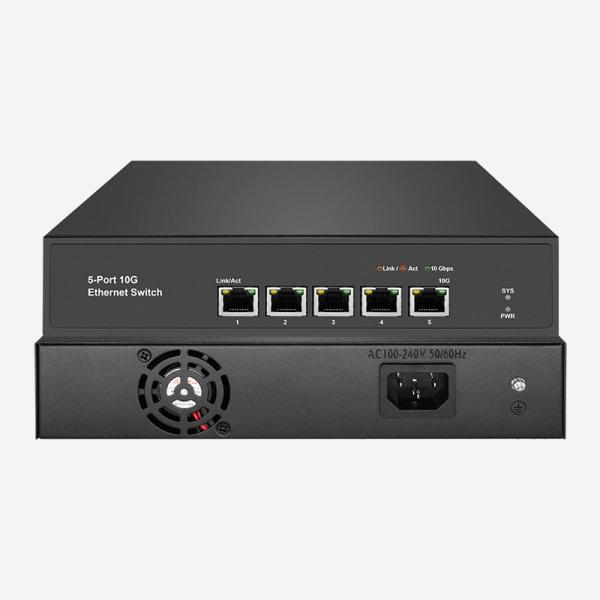

100Gbps 10G Unmanaged Switch With 5 10G Auto-Sensing RJ45 And Internal Power Supply Rack Mountable Lightweight

FAQ:

Q: What is the brand name of this 10G Unmanaged Switch?

A: The brand name of this 10G Unmanaged Switch is Sirivision.

Q: Where is this 10G Unmanaged Switch manufactured?

A: This 10G Unmanaged Switch is manufactured in Shenzhen, China.

Q: What is the maximum data transfer rate of this 10G Unmanaged Switch?

A: The maximum data transfer rate of this 10G Unmanaged Switch is 10 Gigabits per second.

Q: How many ports does this 10G Unmanaged Switch have?

A: This 10G Unmanaged Switch has 5 ports.

Q: Is this 10G Unmanaged Switch suitable for home or office use?

A: This 10G Unmanaged Switch is suitable for both home and office use, as it provides high-speed connectivity for multiple devices.
