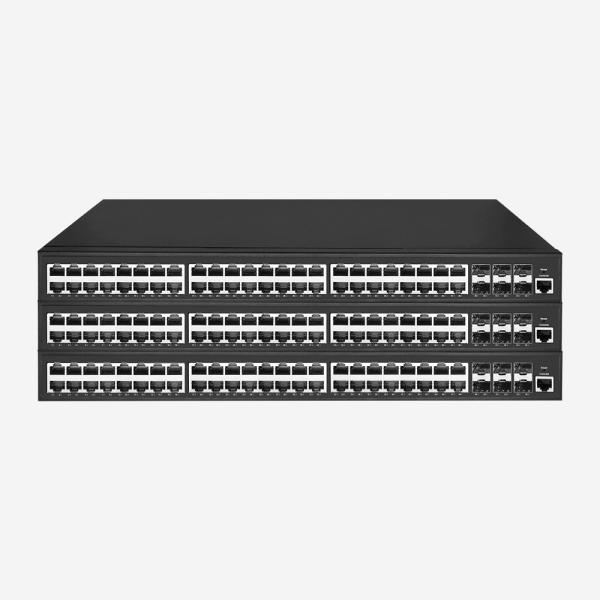

ERPS Ring Network 10gb Layer 3 Switch 48 10/100/1000Base-T RJ45 Ports 6 10G SFP+ Slots
ERPS Ring Network 10gb Layer 3 Switch 48 10/100/1000Base-T RJ45 Ports 6 10G SFP+ Slots
Specifications
Brand Name :
Sirivision
Model Number :
SR-ST3654F
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
6 10G SFP+, 48 10/100/1000Base-T RJ45 10gb Layer 3 Switch
Manage :
Layer 3
Installation :
Rack Mounting
Working Temperature :
0-45℃
Ethernet Ports :
54
SFP Fiber Ports Speed :
10G
Description

48 10/100/1000Base-T RJ45 Ports 10gb Layer 3 Switch With 6 10G SFP+ Slots, 1 Console, ERPS Ring Network SR-ST3654F

6 10G SFP+ Fiber Ports L3 Managed Switch With 48GE Ports and 1 Console Port

Description Of The Layer 3 Switch:

The "SR-ST3654F" series is Sirivision's self-developed 10G Layer 3 managed Ethernet fiber switch. This switch is equipped with 48 Gigabit RJ45 auto-sensing electrical ports and 6 10 Gigabit SFP+ fiber ports, all of which support full wire-speed forwarding.


The switch is designed with low power consumption and natural heat dissipation in a full steel case, which ensures stable operation without fans and is noiseless. 19" standard rack mountable. 10G uplink, wire speed forwarding more smoothly.

Features Of The Switch Pro Aggregation:

  • Provide 48 10/100/1000Mbps RJ45 ports, 6 10G SFP fiber ports.
  • Support IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.
  • Abundant port management functions, complete security protection policy.
  • Abundant Layer 3 and Layer 2 features.
  • Complete ACL, QoS policies and abundant VLAN features.
  • Built-in 4KV lightning protection.

Product Spectification Of The Layer3 Switch:

SR-ST3654F
Power Supply AC100~240V 50/60Hz
Standards IEEE 802.3i,802.3u,802.3ab,802.3x,802.3az
Ports 48 x 10/100/1000Mbps ports,6 x 10G SFP+ slots,1x Console port
Indicators Electrical port indicators, SFP fiber port indicators, power input indicator, system running indicator.
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF
Dimensions 440*310*44.5 mm
Transfer Method Store-and-Forward
MAC Address Table 16K
Switching Capacity 216Gbps
Packet Forwarding Rate 160.704Mpps
Packet Buffer 12Mbit
Jumbo Frame 10KBytes
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Automatic Edge Port
VLAN 8 groups Protocol-based VLAN
support VLAN Translation
256 MAC-based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP,Private VLAN,GVRP,VLAN VPN
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
MVR, MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
QoS 8 priority queues per port
Support port-based and VLAN-based PolicyMap binding
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
Support flow classification based on ACL flow, COS, TOS, DSCP
ACL Custom ACL, MAC-based, IP-based, port-based
Security Features IEEE 802.1X certification,Guest VLAN,Port-based,Host-based,MAC Auth,Web Auth
Storm Control, Ports Security,Port Isolation
DHCP Snooping,CPU Defence Engine,DoS Prevention,256 IP Source Guard
Dynamic ARP Check,IP,MAC,Port Binding,Dynamic VLAN Assignment,Management Access,
HTTPS,BPDU,SSH v1/v2,8 TACACS+,8 RADIUS
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis

Product Application Of The Layer 3 Managed Switch:

ERPS Ring Network 10gb Layer 3 Switch 48 10/100/1000Base-T RJ45 Ports 6 10G SFP+ Slots
