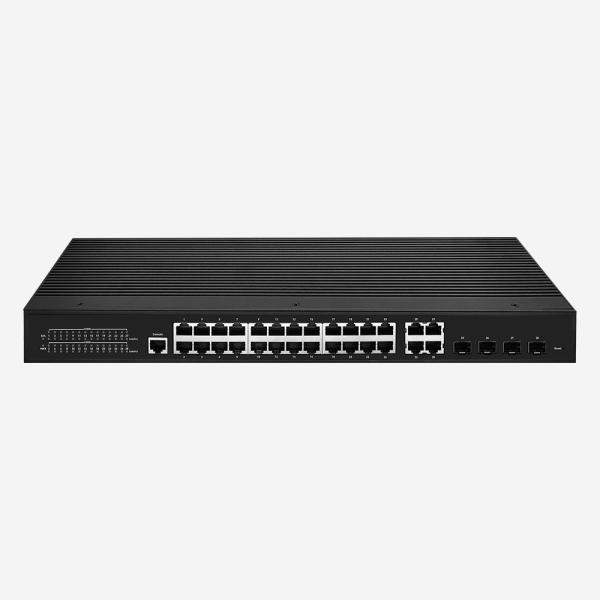

Industrial Layer 2+ Ethernet Switch 4G SFP Slots And 24GE RJ45 Ports
Industrial Layer 2+ Ethernet Switch 4G SFP Slots And 24GE RJ45 Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG3428FCI
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
24GE 4SFP Layer 2+ Ethernet Switch
Power Supply :
12~ 57 VDC or AC 220V/2A(MAX)
Forwarding Rate :
41.664Mpps
Switching Capacity :
56Gbps
Safety Class :
IP30
Transmission Rate :
10，100，1000Mbps
Description

24 RJ45 Ports 4 SFP Industrial Layer 2+ Ethernet Switch STP, RSTP, MSTP SR-SHG3428FCI

4G SFP Slots And 24GE RJ45 Ports Industrial Layer 2+ Managed Gigabit Ethernet Switch

Description Of The 24 Ports Gigabit Switch:

"SR-SHG3428FCI" series is Sirivision's self-developed Gigabit industrial L2+ managed Ethernet fiber switch, designed to meet the needs of industrial fields and systems, and can operate stably in harsh usage environments for a long time. It has 24 Gigabit RJ45 adaptive electrical ports, 4 Gigabit SFP fiber ports, and all ports support full wire-speed forwarding.


SR-SHG3428FCI industrial Ethernet switch has good mechanical stability, 4kv lightning protection, operating temperature from -40 to 75°C, IP30 protection level, low-power fanless cooling technology, MTBF up to 10 years, and 3-year warranty. It is suitable for intelligent transportation, rail transportation, electric power industry, mining, petroleum, port, metallurgy, green energy construction and other industry scenarios to establish an economical and efficient, stable and reliable communication network.

Features Of The Industrial Ethernet Switch:

  • Provide 24 10/100/1000Mbps RJ45 ports, 4 10/100/1000Mbps SFP fiber ports.
  • Support IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.
  • Support rack mounting.
  • Support IPV4/IPV6 management.
  • CE, FCC, RoHS certified.
  • Support QoS, ACL, DHCP, SNMP V1/V2C/V3, STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s).

Product Spectification Of The 24 Port Network Switch:

SR-SHG3428FCI
Power Supply 12~ 57 VDC or AC 220V/2A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports 24×10/100/1000Mbps RJ45 ports+4×SFP fiber ports
Indicators • Link/Act (green)
• Power Indicator: green
Ethernet Port Feature 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive
SFP Port Characteristic Gigabit SFP optical fiber interface, default matching optical modules, need to
buy separately, (optional order mode / multi-mode, single fiber / double fiber
optical module.
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 440 mm *242 mm *45 mm
Power Consumption Standby:<18W(NOT PoE)
MAC Address Table 8K
Switching Capacity 56Gbps
Packet Forwarding Rate 41.664Mpps
Packet Buffer 4.1Mbit
Net /Gross Weight <3kg / <3.5kg
Warranty 3 years , lifelong maintenance
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Self-loop detection
Automatic Edge Port
VLAN Port based VLAN(4k)
MAC address-based VLANs
protocol based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
Multicast VLAN, 1024 multicast groups
MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
Industrial Ring Network ERPS Ring<20ms
QoS 8 priority queues per port
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
ACL L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based
Security Features IEEE 802.1X certification
Storm Control
DHCP Snooping
Dynamic ARP Check
BPDU,SSH v1/v2
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis

Product Application Of The 24 Port Managed Switch:

Industrial Layer 2+ Ethernet Switch 4G SFP Slots And 24GE RJ45 Ports
