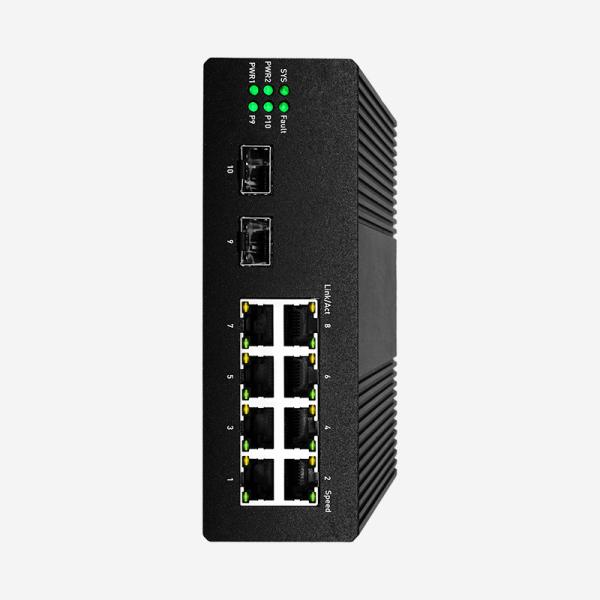

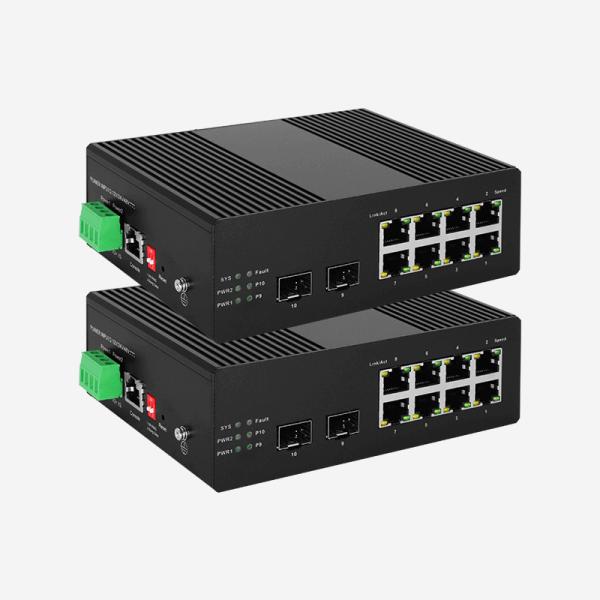

8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG3210FI
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
8 10/100/ 1000Mbps RJ45 2 Gigabit SFP Industrial full Managed Switch
Managed :
Layer 2+
Transmission Mode :
storage and forward
Warranty :
replacement within 1 year; 3 years repairing
Safety Class :
IP30, EMC
Mounting Method :
Din-rail and wall mounting
Description

8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots SR-SHG3210FI

Industrial Easy Smart Gigabit Switch With 2GE SFP Slots And 8GE RJ45 Ports

Description Of The Oem Ethernet Switch:

The SR-SHG3210FI is a 10 port full Gigabit industrial fully managed switch equipped with 8 RJ45 ports and 2 SFP slots. It supports industrial fast ring ERPS and STP/RSTP/MSTP spanning tree protocols to eliminate two-layer loops and enable link backup.

Features Of The Industrial Smart Switch:

  • Offers high-bandwidth connectivity with high-speed 8× Gigabit RJ45 ports and 2× Gigabit SFP slots.

  • 8GE RJ45 ports and 2GE SFP slots feature a total 20 Gbps switching capacity.

  • Supports IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.

  • Supports "Ethernet port + SFP port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.

  • Supports non-blocking wire speed forwarding.

  • Supports full duplex based on IEEE802.3x and half duplex based on backpressure.

Product Spectification Of The Ruggedized Network Switch:

SR-SHG3210FI
Power Supply 12~ 57 VDC/ 3A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports 8×10/100/1000Mbps RJ45 ports+2×SFP ports
Indicators

Speed Indicators, Link/Act Indicators, SFP Indicators, PWR1,

PWR2, SYS
Ethernet Port Feature

10/100/1000BaseT (X) automatic detection, full / half duplex

MDI/MDI-X adaptive
SFP Port Characteristic

Gigabit SFP optical fiber interface, default matching optical

modules, need to buy separately, (optional order mode / multi-

mode, single fiber / double fiber optical module.
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 153 mm * 122 mm * 50 mm
Power Consumption Standby:<10W(NOT PoE)
MAC Address Table 8K
Switching Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps
Packet Buffer 4Mbit
Installation DIN-rail/wall mount
Net /Gross Weight <1.1kg / <1.4kg
Warranty 3 years , lifelong maintenance
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Self-loop detection
Automatic Edge Port
VLAN Port based VLAN(4k)
MAC address-based VLANs
protocol based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
Multicast VLAN, 1024 multicast groups
MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
Industrial Ring Network ERPS Ring<20ms
QoS 8 priority queues per port
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
ACL L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based
Security Features IEEE 802.1X certification
Storm Control
DHCP Snooping
Dynamic ARP Check
BPDU,SSH v1/v2
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis

Product Application Of The Best Industrial Switches:

8 10/100/1000M RJ45 Ports Industrial Fiber Switch With 2 Gigabit SFP Slots
