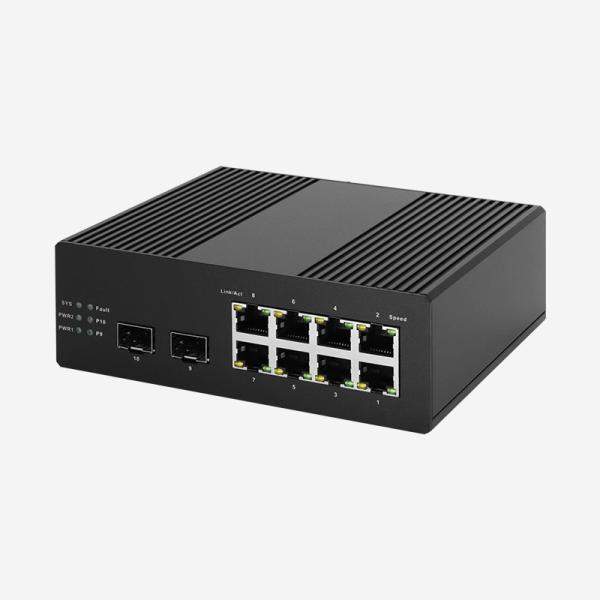

10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SHG3210FI
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
8GE RJ45 2GE SFP Industrial full Managed Gigabit Switch
Voltage :
12-57 VDC
Ethernet Ports :
10pcs
Warranty :
replacement within 1 year; 3 years repairing
Safety Class :
IP30, EMC
Mounting Method :
Din-rail and wall mounting
Description

2 Gigabit SFP Slots Industrial Switch 8 Port Support RJ45 10/100/1000M Speed SR-SHG3210FI

Industrial Easy Smart Gigabit Switch With 2GE SFP Slots And 8GE RJ45 Ports

Description Of The 10 Port Industrial Ethernet Switch:

The SR-SHG3210FI is a 10 port industrial fully managed switch equipped with eight 10/100/1000M auto-sensing RJ45 ports and two Gigabit SFP fiber ports. It supports QoS for a latency-free experience, ensures smooth traffic for latency-sensitive applications, such as voice and video.

Features Of The Ethernet Industrial Switch:

  • Offers high-bandwidth connectivity with high-speed 8× Gigabit RJ45 ports and 2× Gigabit SFP slots.

  • 8GE RJ45 ports and 2GE SFP slots feature a total 20 Gbps switching capacity.

  • Supports IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.

  • SR-SHG3210FPI industrial series products fully follow industrial product design and material.

  • The shell adopts aluminum alloy to enhance heat dissipation efficiency, IP30 protection grade, and ensures the stable operation of the equipment in bad environment.

  • According to the actual application needs, through Web, CLI, SNMP network management, port flow control, VLAN division, STP, RSTP and other functions of the application service configuration.

Product Spectification Of The Ruggedized Switches:

SR-SHG3210FI
Power Supply 12~ 57 VDC/ 3A(MAX)
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab
Ports 8×10/100/1000Mbps RJ45 ports+2×SFP ports
Indicators

Speed Indicators, Link/Act Indicators, SFP Indicators, PWR1,

PWR2, SYS
Ethernet Port Feature

10/100/1000BaseT (X) automatic detection, full / half duplex

MDI/MDI-X adaptive
SFP Port Characteristic

Gigabit SFP optical fiber interface, default matching optical

modules, need to buy separately, (optional order mode / multi-

mode, single fiber / double fiber optical module.
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 153 mm * 122 mm * 50 mm
Power Consumption Standby:<10W(NOT PoE)
MAC Address Table 8K
Switching Capacity 20Gbps
Packet Forwarding Rate 14.88Mpps
Packet Buffer 4Mbit

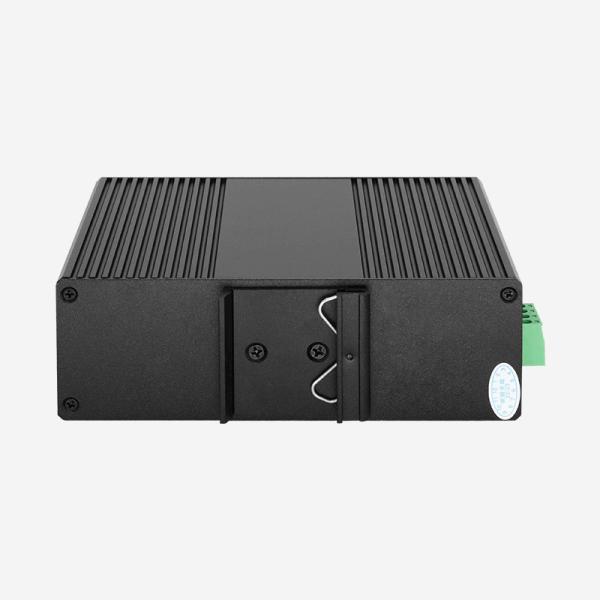

Installation DIN-rail/wall mount
Net /Gross Weight <1.1kg / <1.4kg
Warranty 3 years , lifelong maintenance
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Self-loop detection
Automatic Edge Port
VLAN Port based VLAN(4k)
MAC address-based VLANs
protocol based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
Multicast VLAN, 1024 multicast groups
MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
Industrial Ring Network ERPS Ring<20ms
QoS 8 priority queues per port
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
ACL L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based
Security Features IEEE 802.1X certification
Storm Control
DHCP Snooping
Dynamic ARP Check
BPDU,SSH v1/v2
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis

Product Application Of The Network Switch Industrial:

10 Port Industrial Ethernet Switch With 8 Auto Sensing RJ45 Ports 2 SFP Fiber Ports
