24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
Specifications
Brand Name :
Sirivision
Model Number :
SR-SG1428FCP
Certification :
CE, ROHS, FCC, UKCA
Place of Origin :
Shenzhen，China
MOQ :
20
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000pcs Per Month
Delivery Time :
5-8 work days
Packaging Details :
1pc in box, 1pc Warranty Card in box
Product Name :
24 Port Gigabit Unmanaged PoE Switch
Power input :
AC100~240V 50/60Hz
Operating temperature :
0℃~45℃ (0℉~113℉)
Combo port :
4
Size :
440*290*44.5 mm
Warranty :
3 Years
Description

24 Port PoE Unmanaged full Gigabit Switch With 4 Combo Ports And 4 SFP Ports SR-SG1428FCP

Unmanaged Full Gigabit PoE Switch With 24GE PoE Ports, 4 Combo Ports And 4 SFP Ports

Description Of The Unmanaged Ethernet Switch:

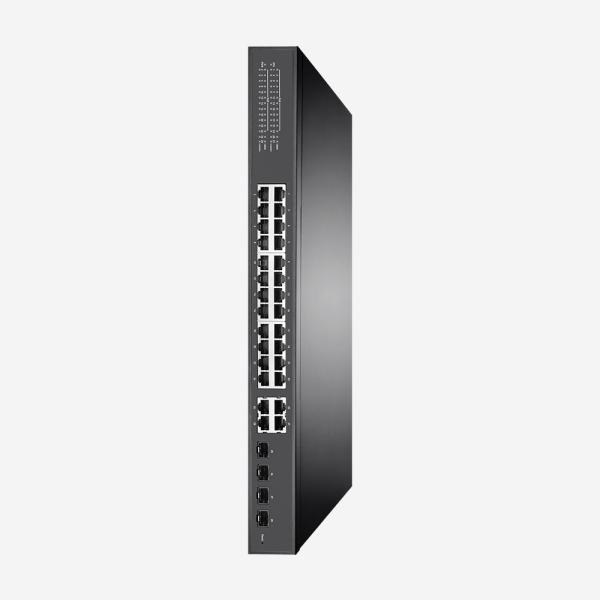

SR-SG1428FP is equipped with 24 10/100/1000M adaptive RJ45 ports, 4 Gigabit optical multiplexed ports and 4 Gigabit optical ports. It has 24 optical port indicators, 24 electrical port indicators, power input indicators and system indicators. It has a power input of AC100~240V 50/60Hz, dimensions of 440*290*44.5 mm, suitable for rack mounting, plug and play, and easy to use.

Features Of The Dumb Switch:

  • Provides 24 10/100/1000M adaptive RJ45 ports.
  • It compliants with IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3at, IEEE802.3af, IEEE802.3z standards.
  • Supports MDI/MDIX auto-flip and duplex/rate self-negotiation per port.
  • 24 Gigabit RJ45 ports support IEEE 802.3af/at standard, PoE power up to 380W in total.
  • Support for 8K MAC addresses.
  • Operating temperature: 0℃ ~45℃ (0℉ ~113℉)
    Storage temperature: -40℃ ~70℃ (-40℉ ~158℉)
    Operating Humidity: 10% ~ 90% Non-condensing
    Storage humidity: 5% ~95% Non-condensing.

Product Spectification Of The 24 Port Poe Switch Unmanaged:

SR-SG1428FCP
Power Supply AC100~240V 50/60Hz
Standards IEEE 802.3,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z
Ports

24 10/100/1000Mbps RJ45 ports, 4 Gigabit sfp fiber ports
Indicators

Electrical port indicators, sfp fiber port indicators, power input indicator,

system running indicator.
Dimensions 440*290*44.5 mm
PoE port 24 802.3at/af standard POE
PoE Pin Definition 1/2(+),3/6(-)
PoE power 380 W
Total power 400 W
Transfer Method Store-and-Forward
MAC Address Table 8K
Switching Capacity 56Gbps
Packet Forwarding Rate 41.664Mpps
Packet Buffer 4.1Mbit
Jumbo Frame 10KBytes
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Product Application Of The Best Unmanaged Ethernet Switch:

24 Port Full Gigabit Unmanaged PoE Switch With 4 Combo Ports 4 SFP Ports
