IEC 60529 IPX5 IPX6 Strong Water Spray Test Chamber for Electrical Products & Components

Product information:

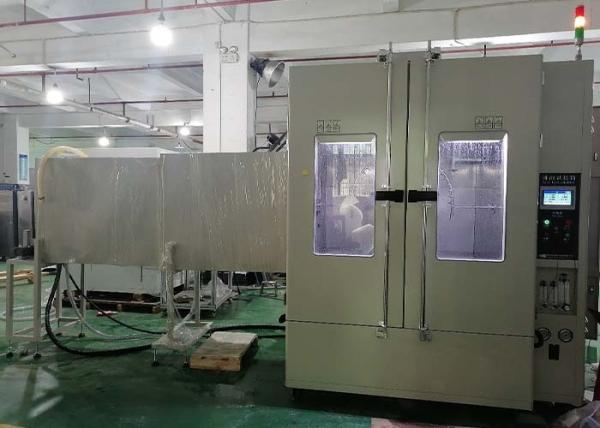

This equipment is designed to test the performance of products in rainy climate conditions, simulating storage, transportation, and usage environments. It is mainly used for electronic and electrical products, lamps, electrical cabinets, components, automobiles, motorcycles, and their parts. The equipment checks the physical properties and performance of these products under simulated rainy conditions. After testing, the product's performance is evaluated to determine if it meets required standards, helping with product design, improvement, verification, and factory inspections. Can meet IPX5 and IPX6 protection levels

Design Principle:

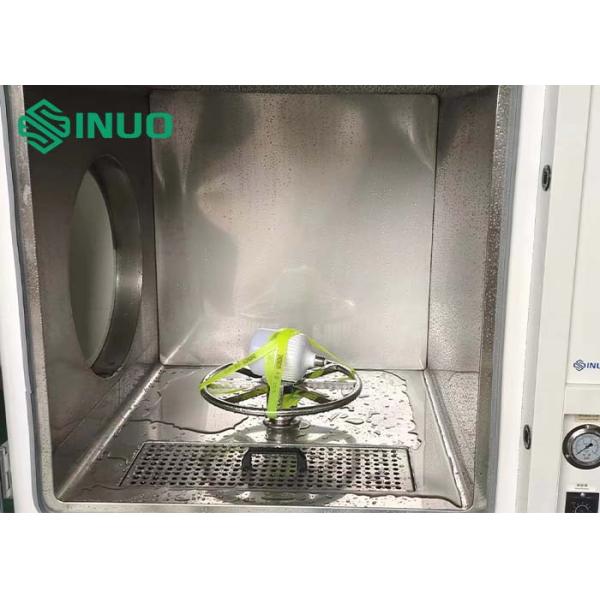

A water tank is set at the bottom. Water is pumped and pressurized by a stainless steel water pump inside the right control box and then sent to the nozzle of the side water spray pipe device. The nozzle sprays water horizontally onto the samples on the turntable and then scatters into the water tank, thus forming a water circulation system. The nozzle sprays water horizontally onto the sample on the turntable, and then scatters into the water tank, thus forming a water circulation system. The water pump outlet is designed with control components such as flow meter, pressure gauge, solenoid valve, etc. A waterproof turntable is installed in the inner box, and the speed is controlled on the panel.

IEC 60529 IPX5 IPX6 Strong Water Spray Test Chamber for Electrical Products & Components

Technical Parameters:

IP56-4000L
Inner chamber size 2200*2200*1000mm(W×D×H)
Outer chamber size About 5000*2060*1800mm(W×D×H)
Turntable diameter 1800mm (2 pcs, with an additional external turntable)
Customer sample size 1500*500*500mm
Turntable load bearing capacity 25 kg
Number of nozzles 2 pcs; 1 pcs IPX5 nozzle and 1 pcs IPX6 nozzle
Water surface Side face
Distance from nozzle to sample 2500*3000mm (between)
Inner diameter of spray hole IPX5 (level) φ6.3 mm, IPX6 (level) φ12.5 mm
Water spray flow IPX5 (level) 12.5 ± 0.625 (L/min), IPX6 (level) 100 ± 5 (L/min)
Pipe diameter One piece of 1/4-inch high-pressure soft hose and one piece of 1-inch high-pressure soft hose.
Water spray pressure 30～200kpa (adjusted by flow rate)
Turntable speed 1-7R/min
Water spray duration 3, 10, 30, 9999min (adjustable)
Run time control 1～9999min(adjustable)
Water circulation system Ensure water recycling
Water spray pressure gauge Display water spray pressure
Control system Self-developed touch screen control system (Sinuo)
Sprinkler system It consists of a water pump, a water pressure gauge, and a fixed nozzle bracket.
Nozzle material Stainless steel pipe
Inner chamber material SUS304# stainless steel
Outer chamber material A3 iron plate spraying

Electrical control

1. Electrical controller: LCD touch key controller.

2. Test time: 1-999,999min (adjustable)

3. Turntable control: speed reduction motor, stable speed regulation.

4. Pressure gauge: Dial pressure gauge displays the pressure of each single row test level.

5. Flow meter: Digital water flow meter, showing the flow rate of each single column test level.

6. Flow and pressure control: manual valve is used to control flow and pressure, digital flow meter indicates flow, stainless steel case spring pressure gauge indicates pressure.

7. Preset test time: 0S～99H59M59S adjustable.

Usage Environment

1. Ambient temperature: RT10～35℃(average temperature within 24 hours ≤28℃).

2. Ambient humidity: ≤85%RH.

3. Power supply: 380V 50HZ three-phase five-wire + protective ground wire, the grounding resistance of the protective ground wire is less than 4Ω; the user is required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must be independent and dedicated for this equipment.

4. Power: About 4KW.

Protection system: leakage protection, phase sequence protection, alarm prompt.
