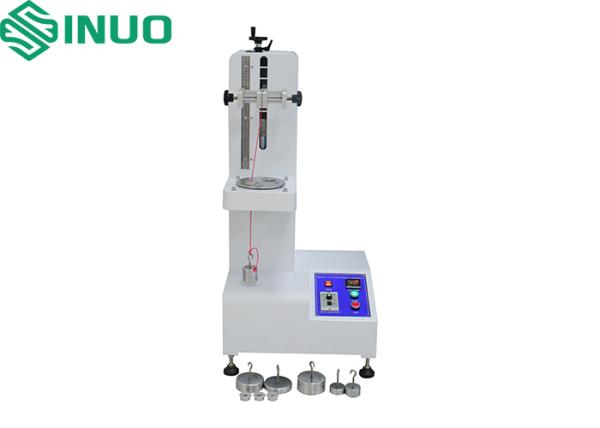

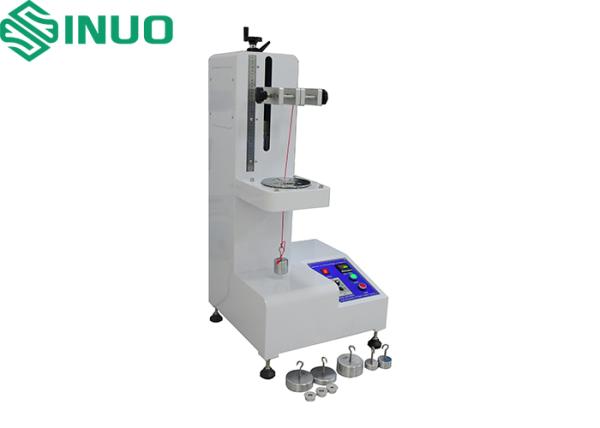

IEC 60669-1 Conductor Damage Degree Test Machine for Terminal Reliability Evaluation
IEC 60669-1 Conductor Damage Degree Test Machine for Terminal Reliability Evaluation
IEC 60669-1 Conductor Damage Degree Test Machine for Terminal Reliability Evaluation
IEC 60669-1 Conductor Damage Degree Test Machine for Terminal Reliability Evaluation
IEC 60669-1 Conductor Damage Degree Test Machine for Terminal Reliability Evaluation
IEC 60669-1 Conductor Damage Degree Test Machine for Terminal Reliability Evaluation
Specifications
Brand Name :
Sinuo
Model Number :
SN2111
Certification :
Calibration Certificate(Cost Additional )
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Test Rate :
10±2 RPM
Weight Value :
0.3, 0.4, 0.7, 0.9, 1.4, 2kg
Gyration Diameter :
75mm
Ferrule Diameter :
6.5, 9.5, 13, 14.5mm
Applied Standard :
IEC 60669-1:2017 figure 9
Power Supply :
AC220V±10%, 60Hz
Description

IEC 60669-1 Conductor Damage Degree Test Machine for Terminal Reliability Evaluation

Product information:

Standards Compliance:

IEC 60884-1:2022 (Clause 12.2.5, Figure 13)

IEC 60669-1:2017 (Clauses 12.2.5 & 12.3.10, Figure 9)

Application:

This testing equipment evaluates the mechanical strength of both screw-type and screwless terminals under normal operating conditions. It verifies whether terminal designs can securely clamp conductors without causing excessive damage.

Test Samples:

Terminals and connectors

Key Features:

Guided Rail Structure for precise alignment

Programmable Test Cycles (0–9999 repetitions) with automatic stop function

Audible Alarm to signal test completion

Adjustable Parameters including rotation speed (10±2 RPM), weights (0.3–2 kg), and test heights (260–320 mm)

Multi-Standard Compatibility for global certification requirements

Parameters:

Test rate 10±2 RPM
Diameter of gyration 75mm (and 76mm for UL standard)
Test times 0～9999
Weights 0.3, 0.4, 0.7, 0.9, 1.4, 2kg
Test height 260, 280, 300, 320mm
Diameter of ferrule hole 6.5, 9.5, 13, 14.5mm
Standards IEC60669-1:2017, IEC60884-1:2022
Power supply AC220V±10%, 60Hz
