IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
Specifications
Brand Name :
Sinuo
Model Number :
SN2122A
Certification :
Calibration Certificate(Cost Additional )
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Impact Energy :
2J -20J
IK Rating :
IK07-IK10
Lifting Method :
motor-driven, 200–1200 mm
Release Method :
Electromagnetic
Hammer Material :
Steel
Key Function :
Anti-secondary impact
Description
IEC60068-2-75 High Energy Pendulum Hammer Impact Tester for IK07-IK10
Product Specifications
Attribute Value
Impact Energy 2J -20J
IK Rating IK07-IK10
Lifting Method motor-driven, 200–1200 mm
Release Method Electromagnetic
Hammer Material Steel
Key Function Anti-secondary impact
Product Description

This test apparatus conforms to IEC60068-2-75:2014, IEC60598-1:2017, EC62262:2002, and other relevant standards. It is designed to evaluate the impact resistance of household and similar electrical/electronic products and their components, including plugs, sockets, wall-mounted junction boxes, cable glands, covers, switches, and lighting fixtures. It assesses both the safety performance and structural durability of these products.

Test Principle

The striking element is freely released from a predetermined height along a 1-meter pendulum tube. At the lowest point of its swing, it impacts the specimen vertically, converting gravitational potential energy into kinetic energy to perform the impact test.

Technical Parameters
Parameter Specification
Striking Elements (Energy/J) Optional: 2J, 5J, 10J, 20J, 50J (corresponding to IK07, IK08, IK09, IK10 respectively)
Equivalent Mass kg 500g, 1.7kg, 5 kg, 5 kg (for 2J, 5J, 10J, 20J respectively)
Striking Elements Material Steel
Pendulum Tube Steel pipe: 1000 mm length, 15.9 mm outer diameter, 1.5 mm wall thickness
Impact Point Electrically adjustable height, stroke range: 200-1200 mm
Height of Fall 0-500mm, scale display
Lifting Electrical mode, motor-driven
Impact element release method Electromagnetic
Base plate Thicken load-bearing steel base plate
Way of moving Equipped with casters; movable to align with the sample's impact point
Anti-secondary impact function Yes
Product Images

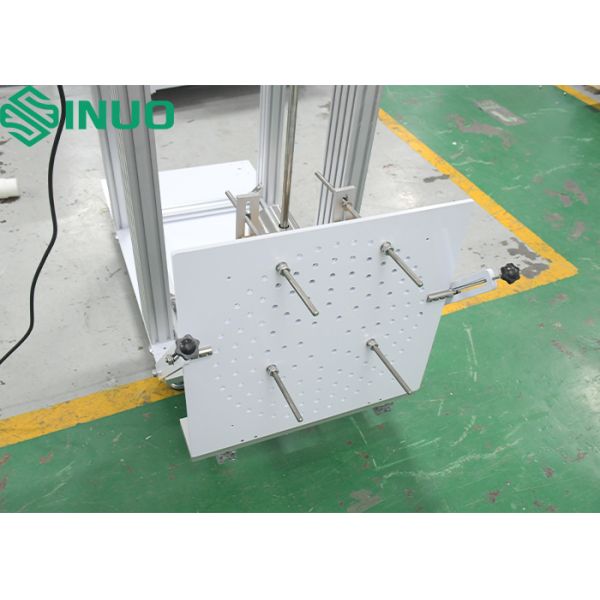

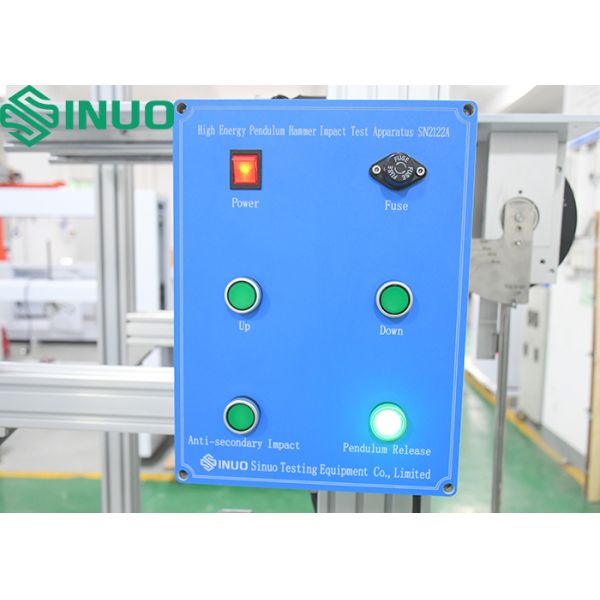

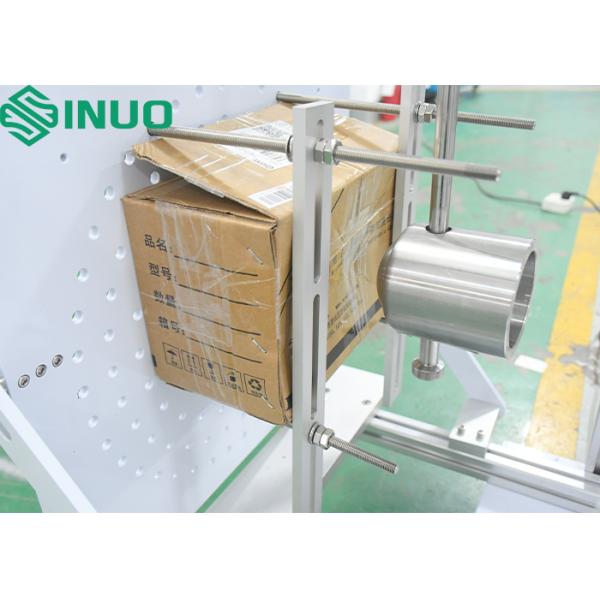

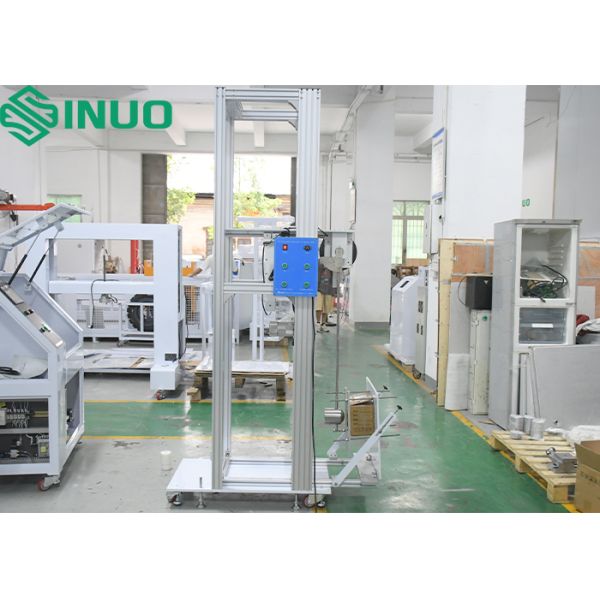

IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10 IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10 IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10 IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10 IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10 IEC60068-2-75 Pendulum Hammer Impact Tester 2J-20J IK07-IK10
