IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SN2122A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 Sets / Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Striking Elements :
2J, 5J, 10J, 20J
Impact Weight :
500g, 1.7kg, 5 kg, 5 kg
Pendulum Length :
1000mm
Pendulum Diameter :
15.9 mm
Stroke :
0-1500mm
Height :
0-500mm
Lifting Mode :
Electrical mode
Release Method :
Electromagnetic
Description


IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus


Product information:

This test apparatus is used for the impact resistance test of household and similar electronic and electrical products and their accessories such as plugs and sockets and wall mounted mounting boxes, screw glands, covers, switches, lamps, etc., to assess the safety performance and strength level of the products.

It conforms to standards:

IEC60068-2-75:2014 “Environment testing for electric and electronic products Part2: Test methods -Test Eh: Hammer tests IDT”

IEC62262:2002 “Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK code)”

It is required by IEC60335-2-25 clause 22.119.3, etc.

Structure:

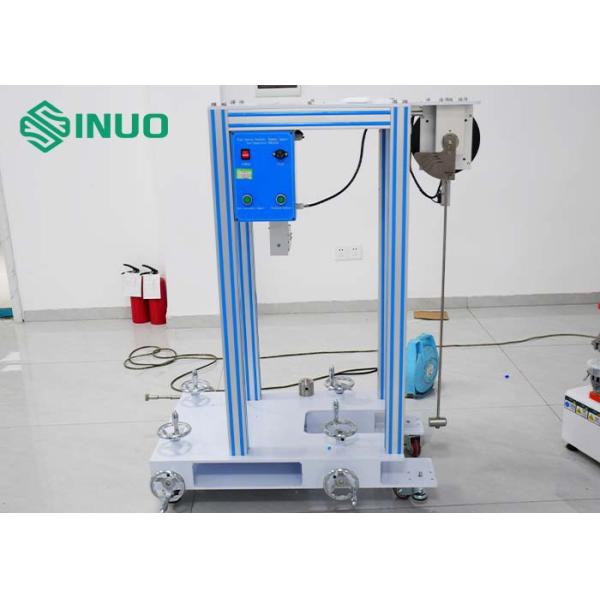

The high-energy pendulum impact test device adopts a trolley structure, can move

around left and right, the height of the upper and lower impact points is adjustable

through the screw guide, the impact angle is adjustable from 0 to 90°.

The striking element is free released at a certain height through a 1 m pendulum tube, impact the specimen at the lowest point in the vertical direction, after the conversion of gravitational potential energy to kinetic energy, to achieve the purpose of impact test on the sample.

Technical parameters:
Striking Elements (Energy/J) Standard: 2J (IK07), 5J (IK08) 10J(IK09), 20J(IK10)

Equivalent Mass

kg

 500g,1.7kg ,5 kg,5 kg are for 2J,5J,10J,20J, please refer to following table 1
Striking Elements Material Steel
Pendulum Tube Length 1000㎜,outer diameter 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point

Can be electrically adjustable up and down, stroke: 0-1500mm

(For large and high UUT, use a forklift to lift the device to a suitable height, thus achieving the impact on the proper point)
Height of Fall

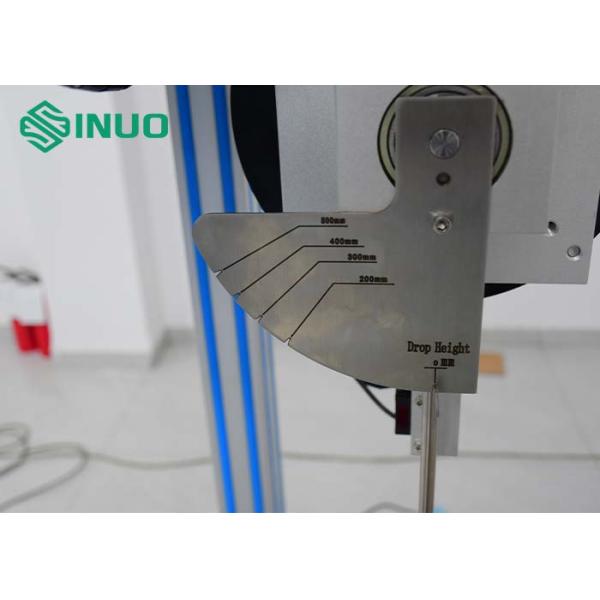

0-500mm, scale display

The height can be adjusted by handwheel
Lifting Electrical mode

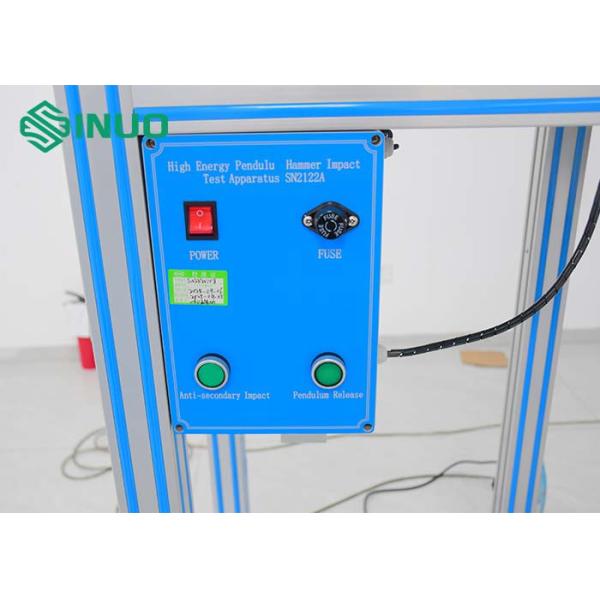

Impact element release method Electromagnetic release
Base plate Thicken load-bearing steel base plate
Way of moving With casters, it can be moved to the position of the impact point of the sample
Anti-secondary impact function Yes


Annex Tables:

IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus

IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus

Table 3 Relationship of IK code and corresponding energy

IK Code IK00 IK01 IK02 IK03 IK04 IK05 IK06 IK07 IK08 IK09 IK10
Energy / J a 0.14 0.2 0.35 0.5 0.7 1 2 5 10 20

Note 1. If higher impact energy is required, the recommended value is 50J.

Note 2: Some other standards use a single digit to indicate the specified impact energy. To avoid mixing with it, the feature number is represented by two digits.
a Unprotected according to this standard
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
IEC 60068-2-75 EV Charging Station High Energy Pendulum Hammer Impact Test Apparatus
