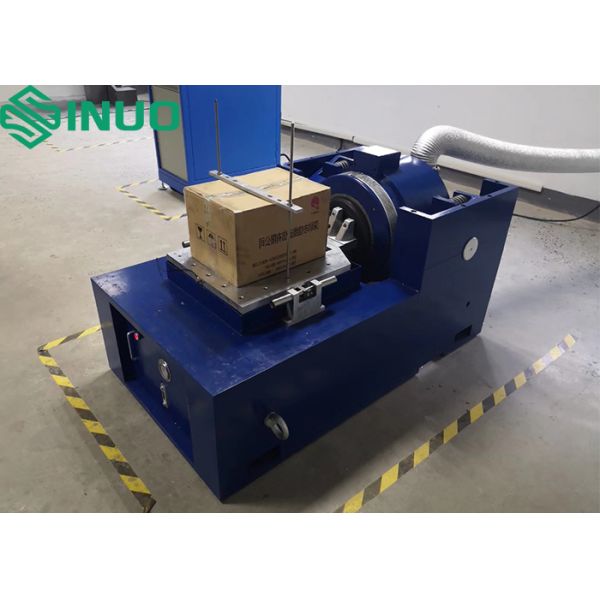

IEC 62133 Electromagnetic Vibration Test System For Battery Testing
IEC 62133 Electromagnetic Vibration Test System For Battery Testing
IEC 62133 Electromagnetic Vibration Test System For Battery Testing
IEC 62133 Electromagnetic Vibration Test System For Battery Testing
IEC 62133 Electromagnetic Vibration Test System For Battery Testing
IEC 62133 Electromagnetic Vibration Test System For Battery Testing
Specifications
Brand Name :
Sinuo
Model Number :
SN553
Certification :
Calibration Certificate(Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
40 days
Packaging Details :
Plywood case
Sine Force :
4000Kg.f
Random Force :
4000Kg.f
Shock Force :
8000Kg.f
Frequency Range :
1～3000 Hz
Max. Displacement :
100 mm p-p
Max. Speed :
2.0m/s
Description
IEC 62133 Electromagnetic Vibration Test System For Battery Testing
Vibration testing involves subjecting a component or device to simulated stresses in order to evaluate its response to real-world conditions. This testing is essential for ensuring product durability and reliability across diverse industries, from aerospace and automotive to consumer electronics.
Sinuo collaborates with you to offer customized vibration testing solutions that go beyond meeting basic compliance standards (including GB, GJB, UL, IEC, ASTM, and more). Our focus is on addressing the specific challenges of your applications, equipping you with the precise testing capabilities needed to accelerate time-to-market, improve product quality, and establish a reputation for reliability and excellence in your industry.
Equipment Technical Parameters
Electromagnetic Excitation Generator Parameters
Parameter Specification
Maximum sinusoidal excitation force 4000Kg.f peak
Maximum Random Exciting Force 4000Kg.f rms
Maximum impact excitation force 8000Kg.f peak
Frequency Range 1～3000 Hz
Maximum displacement 100 mm p-p
Maximum speed 2.0m/s
Maximum acceleration 100G(980 m/s2)
First-order resonant frequency 2500 Hz±5%
Payload 1000 kg
Vibration isolation frequency 2.5 Hz
Moving coil diameter Ф440 mm
Moving coil weight 60kg
Flux leakage ＜10gauss
Allowable eccentric moment ＞500N.m
Equipment size 1400mm×980mm×1230mm (excluding vertical expansion platform)
Equipment weight 2800Kg
Digital Switching Power Amplifier
Parameter Specification
Output power 50KVA
Output voltage 110Vrms
Output current 500Arms
SNR ≥70dB
Amplifier size 910mm×620mm×2050mm
Servo Protection System
Temperature, wind pressure, over-displacement, over-voltage, over-current, input under-voltage, external fault, control power supply, logic fault, input phase loss
Digital Vibration Controller
Parameter Specification
Hardware configuration 2 simultaneous input channels, 1 output channel
Control function module Sine, random, classical shock
Control computer Original brand computer with LCD monitor
Software English operation, time domain and frequency domain analysis, signal source, sine frequency sweep analysis, etc. It can automatically generate WORD test reports. It can display, store the signals and data, and set test parameters and analyze functions.
Acceleration sensor LTE C04A07 Frequency range: 1-8000Hz Sensitivity: 30mv/g Temperature range: -40 - 160℃

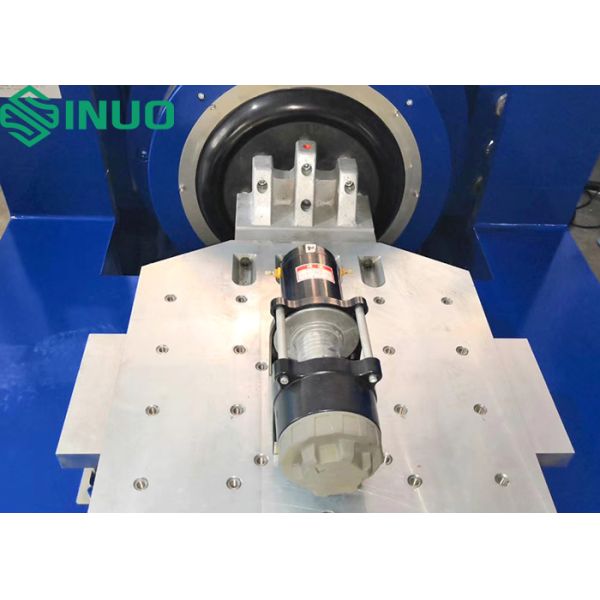

Vertical Extension Table
Parameter Specification
Material Magnesium alloy, surface hard anodized
Table size 2000×1200 mm
Fixed hole M10 rectangular distribution 100mm*100mm stainless steel screw sleeve, durable and wear-resistant
Upper limit usage frequency Sine 100 Hz, Random 200 Hz
Weight About 340KG
Cooling Fan (Including Silencer)
Parameter Specification
Fan power 15kW
Fan flow rate 81.6m3/s
Fan pressure 0.075kgf/cm2
Electrical Requirements
Parameter Specification
Power supply 3-phase 5-wire 380V/50Hz 75 KVA
Compressed air 0.6Mpa
Ground resistance ≤4Ω
System Features
  • High performance and reliability: Closed-loop control with DSP processor ensures real-time response and high precision. All input channels feature 24-bit resolution ADCs, low-noise hardware design, and built-in analog and digital anti-aliasing filters.
  • Easy to operate: Windows-based application software with automatic wizard and test report generation functions. Rich test parameter settings with USB2.0 interface for seamless computer connectivity.
  • Powerful functions and flexibility: Versatile vibration control platform capable of multiple complex tasks. Modular design allows configuration of hardware and software to meet different testing and analysis requirements.
  • Test safety: Small-scale signal control for system preview, multiple safety checks, and interlock settings. Built-in termination key for immediate test shutdown in case of abnormalities.
  • Test report generation: One-click generation of test reports in Word or PDF format. Comprehensive reporting including test control functions, setting parameters, control target spectrum curves, and time/frequency domain curves.
