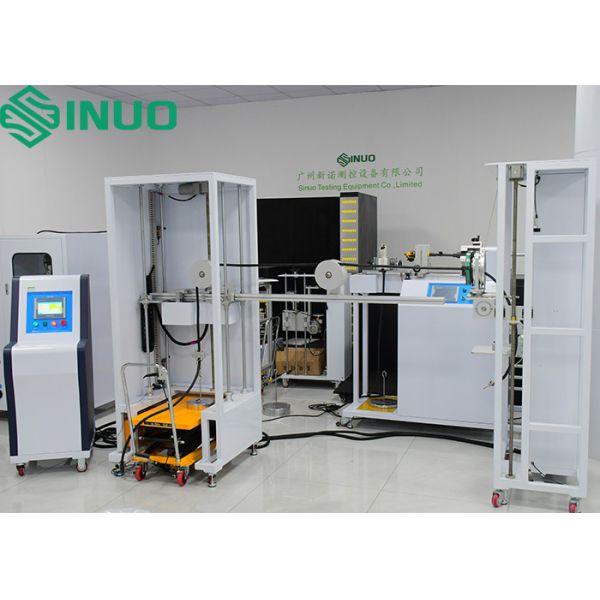

Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
Specifications
Brand Name :
Sinuo
Model Number :
SNQC1007B
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood case
Standard Compliance :
IEC 61851-23:2023
Test Functions :
Pull force and torque testing
Control System :
PLC automatic control with touch screen
Drive Mode :
Electric motor drive
Pull Force :
160N–500N
Torque Apply :
0.6N·m–16.3N·m
Cycle Control :
1–999999 pull cycles preset
Torque Duration :
Up to 99H59M59S preset
Description

Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23



Product information:

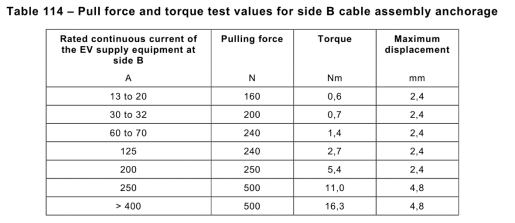

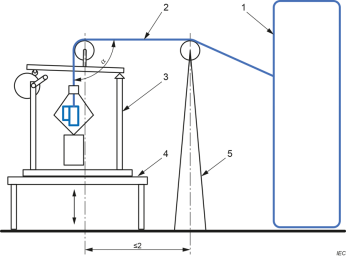

It is designed and manufactured according to IEC 61851-23:2023 clause 11.6.102 and Figure 110, Figure 111 and Table 114.

Sample scope, purpose, principle, structure and use environment

Samples and restrictions

Electric vehicle AC and DC charging station

Test purpose

The flexible cord anchorage of the appliance shall relieve conductors at the terminals from pulling force and torque. This device is used to test the ability of the cord anchorage or cable fixing device of EV AC/DC charging stations to withstand specified tensile force and torque.

Test Principle

The pulling force is realized by using a motor to drive an eccentric wheel mechanism. The motor speed is adjustable to ensure that the pulling force is applied accurately each time. It is equipped with a monitoring function for the pulling force duration. Torque is applied by a motor-driven tray that lifts a weight; When the time is reached, the tray automatically resets the lifting weight and ends the application of torque.

Structure and characteristics

The equipment adopts PLC control and motor drive. The weights apply stable pulling force, and torque is generated through the combination of weights and a torque arm. The system allows setting the number of pulling force applications and the torque test duration. Once the preset number of cycles or duration is reached, the equipment stops automatically. After the test, the maximum allowable displacement of the EV charging connector cable must not exceed the specified limit in the standard. This equipment is compatible with charging station samples fitted with charging guns of different cable lengths.

Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23

Usage Environment

Power supply: AC220V±10%/50-60Hz, 1KW; working temperature 0-40℃, humidity 30%-90%;

Dimensions: about W4000*D600*H1850mm; weight: about 300kg

Technical parameters:

Test content

EV Charging Station Cable Pull and Torque Tests

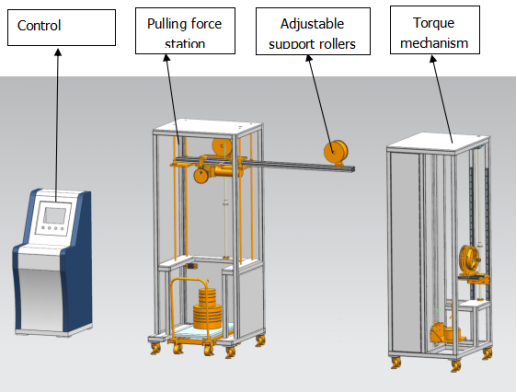

Equipment structure schematic diagram

Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23

Control operation mode

PLC automatic control, touch screen operation

Drive mode

Electric

Pull apply

Meet 160N, 200N, 240N, 250N, 500N specifications, realized by superposition of weights

Torque apply

Meet 0.6N·m, 0.7N·m, 1.4N·m, 2.7N·m, 5.4N·m, 11.0N·m, 16.3N·m specifications,realized by superposition of weights

Torque wheel

R100mm(Ф200mm) ±0.5mm

Tensile frequency

1 time/s, the actual pull time is detected by electrical signal

Pull cycles

1-999999 cycles, can be preset, default is 100±1 cycles

Torque application time

0-99H59M59S,can be preset

Power failure protection

With power-off data storage memory function

Fixture

Universal clamp, one set

Weight matching selection table

Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23

Additional configuration

The equipment features an adjustable fixture height ranging from 500 to 1200 mm (i.e., the cable outlet position), allowing it to meet the testing requirements of charging stations with different cable outlet positions.


Cable Anchorage Pull Force And Torque Tester For EV Charging Stations IEC 61851-23
