IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
Specifications
Brand Name :
Sinuo
Model Number :
SN5513
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
Sinuo
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
5 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood case
Temperature range :
0 ~ 100℃
Temperature fluctuation :
±2.0℃
Analytical accuracy :
0.1℃
Heating rate :
Average 3℃/min
Cooling rate :
Average 1℃/min
Force range :
1kg-200kg
Squeeze stroke :
0~300MM
Force accuracy :
≤0.5％
Description
IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
The Battery Internal Short Circuit Tester is a fully integrated safety testing system designed to evaluate battery behavior under forced internal short-circuit conditions. This advanced equipment combines temperature control, mechanical squeezing, real-time voltage acquisition, and comprehensive safety protection within a single enclosed test chamber.
The system fully complies with IEC 62133-2:2017 (Clause 7.3.9) and JIS C 8714:2007 (Clause 5.5), making it ideal for battery manufacturers, certification bodies, and testing laboratories performing safety and compliance evaluations.
Applications
This equipment simulates extreme conditions where batteries may experience internal short circuits due to mechanical crushing during:
  • Normal use conditions
  • Transportation and storage scenarios
  • Accidental damage situations
  • Disposal as household waste
A battery is considered qualified if no fire or explosion occurs during or after testing. Applicable for:
  • Lithium-ion battery cells and packs
  • Safety qualification and type testing
  • R&D validation and quality control
Technical Specifications
Temperature Control Chamber
1 Temperature range 0 ~ 100℃
2 Analytical accuracy 0.1℃
3 Temperature fluctuation ±2.0℃
4 Low temperature 0℃
5 Heating rate Average 3℃/min (from 0℃ to 100℃, non-linear no-load)
6 Cooling rate Average 1℃/min (from 100℃ to 0℃, non-linear no-load)
7 Heater Fin type heat pipe shaped stainless steel electric heater
8 Air supply circulation system Convection air circulation system
9 Safety devices Over-temperature alarm, MCCB overload protection, etc.
10 Insulation material Rigid polyurethane foam + high-efficiency compressed glass wool
11 Thermostat TEMMI controller imported from Korea
12 Inner chamber size W400*H500*D500mm
13 Inner chamber material Mirror stainless steel plate, bottom reinforcement
14 External chamber size W1200 X H2000 X D1000MM
15 External chamber material Cold rolled steel paint treatment
Force Test System
1 Force range 1kg-200kg
2 Unit Kg/N/Lb
3 Squeeze stroke 0~300MM
4 Force display accuracy 1N
5 Resolution 1/10,000
6 Force accuracy ≤0.5％
7 Speed display accuracy 1mm
8 Driven type Servo motor drive
9 Squeeze speed Adjustable; first contact point: 1.5cm/s; process range: 0.01~900MM/MIN
10 Squeeze head size 10*10*5mm or 10*10*2mm
11 Squeeze head material Nitrile rubber (NBR) and acrylic (acryl)
12 Squeeze workbench material Aluminum alloy plate or 316 stainless steel plate
13 Suitable Battery size 300 X 300 X 300mm(WXDXH)
14 Visual window 300 X 300mm explosion-proof glass
15 Air supply outlet Two air supply vents on the left side
16 Lighting Internal lighting lamp for complete testing space illumination
17 Voltage collection range 0-100V, acquisition frequency 100HZ/second
18 Voltage resolution 0.1mv
19 Voltage acquisition frequency 100/s
20 Deformation range 0-300MM
21 Max. test plane 300X300MM
22 Power supply 220V 50HZ
23 Power 2.0KW
24 Machine weight Approx. 350KG
Working Principle and Purpose
Pressure is applied through a hydraulic cylinder in a vise or cylindrical piston, causing the single cell or unit cell under inspection to be squeezed between two planes. The squeezing continues until approximately 13kN force is reached, followed by immediate decompression. This test evaluates the safety performance of batteries, with successful results indicated by no fire or explosion.
This machine simulates conditions where batteries are subjected to crushing objects during use, transport, storage, or disposal as household waste. The battery is qualified if it does not explode or catch fire.
Key Equipment Features
  • Control System: PLC control for accurate data and simple operation
  • Air Pressure Balancing: Double air supply holes ensure chamber pressure balance
  • Exhaust System: Long-axis motor with aluminum alloy fan blades for outdoor gas discharge
  • Security System: Stainless steel hinges and tight door locks prevent door blow-out
  • Humanized Design: 800mm working height, double-layer tempered glass, internal lighting
  • Voltage Acquisition: Real-time voltage collection with USB data export to EXCEL/BMP formats
  • Transmission System: Servo motor with ball screw and linear guide for precise movement
  • Mobility: 4 universal pulleys and 4 positioning foot cups for flexible positioning
Standard Accessories
  • Flat squeeze disc, diameter 150mm (1 set)
  • 10x10mm squeeze head
  • Nitrile rubber (NBR, side length 10mm, thickness 2mm) - 3 pieces
  • Propylene (acryl, side length 5mm, thickness 2mm) - 3 pieces
Product Images

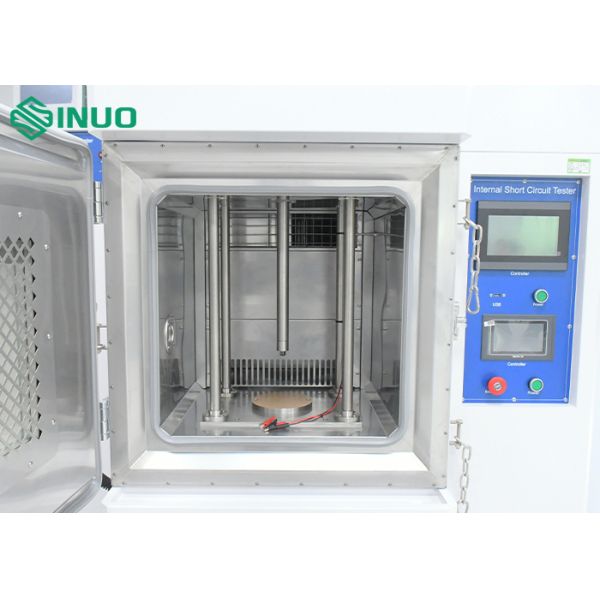

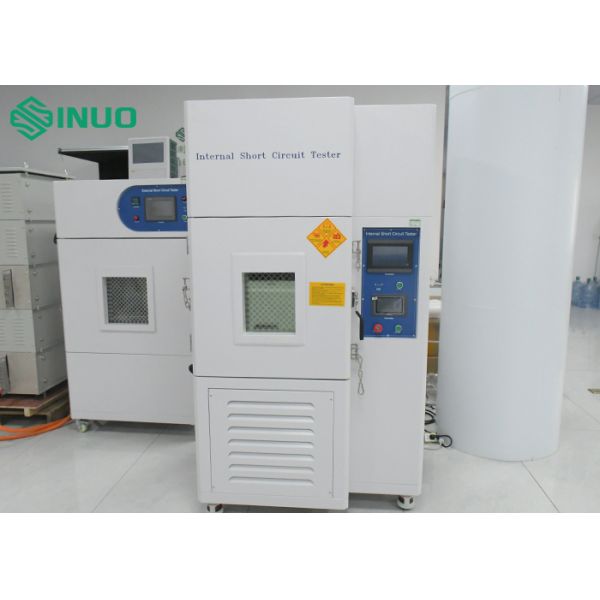

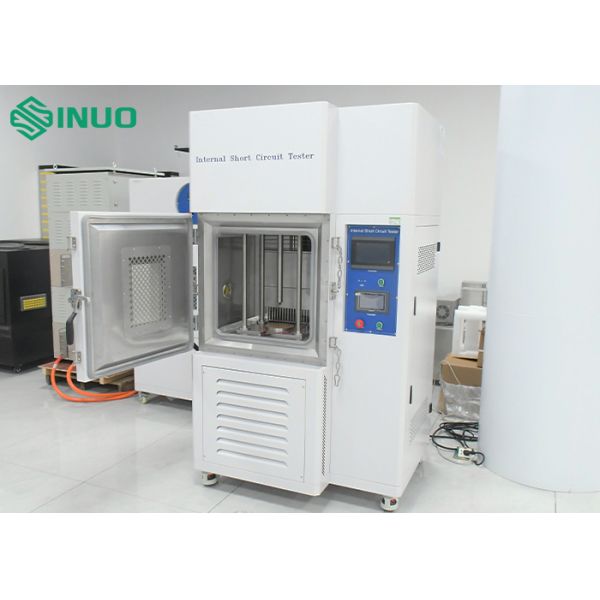

IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control IEC 62133-2 Battery Internal Short Circuit Tester with Temperature & Force Control
