UL 2580 Clause 26 Temperature Controlled External Short Circuit Tester
High-current 2000A testing system for comprehensive battery safety evaluation under controlled temperature conditions.
Compliance Standards
Conforms to UL 2580 Clause 26, IEC62133-1:2017 Clause 7.3.2, IEC62133-2:2017 Clauses 7.3.1 & 7.3.2, IEC62133:2014 Clauses 7.3.2, 8.3.1, 8.3.2, IEC60086-4 Clauses 6.5.1, 6.5.8, 6.5.9, and related standards.
Technical Specifications
Maximum Load Current 2000A (DC)
DC Response Time ≤5μs
Built-in Resistors 20±5mΩ and 80±20mΩ (manually switchable for different standards)

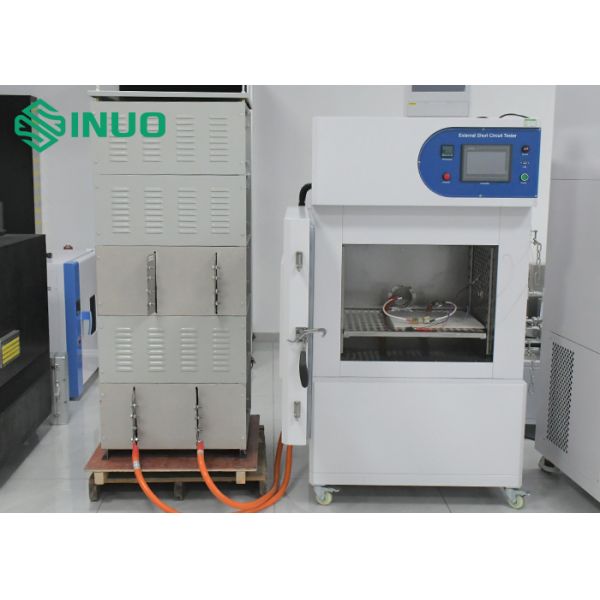

Chamber Dimensions W650mm × D650mm × H500mm
Control System PLC with Touch Screen Interface
Chamber Material Stainless Steel Construction
Sealing Corrosion-resistant Silicone Strips
Temperature Control RT+10℃ to 100℃ (presettable), 3℃/min rise rate, ±2℃ uniformity
Test Termination Battery temperature drops 20% below peak or preset short circuit time
Sample Rack SUS #201 Perforated Steel, 30KG capacity per layer, adjustable height
Key Features
  • Hall Element Current Sensing for stable, accurate data transmission
  • 50mm Lead Access Port for test wire routing
  • Reinforced Chamber Door with explosion-proof locks
  • Pressure Relief System with 300×300mm magnet-adsorbed door
  • High-Brightness LED Chamber Lighting
  • Powerful Smoke Exhaust System (60mm port, 2.2m³/min capacity)
  • High-Temperature Resistant Motor (370W, Taiwan-made)
  • Efficient Fin-type Nickel-Chromium Heater with PID+SSR Control
  • High-Precision PT100Ω Temperature Sensor
  • Triple Explosion-Proof Chain Door Security
  • Recessed Control Panel for safety

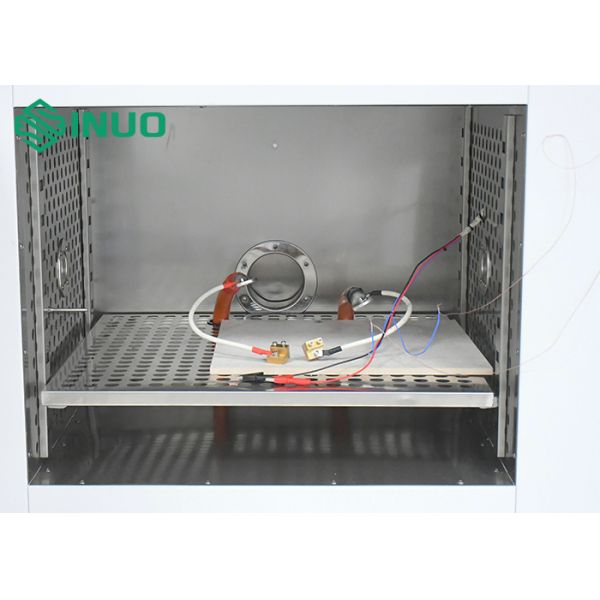

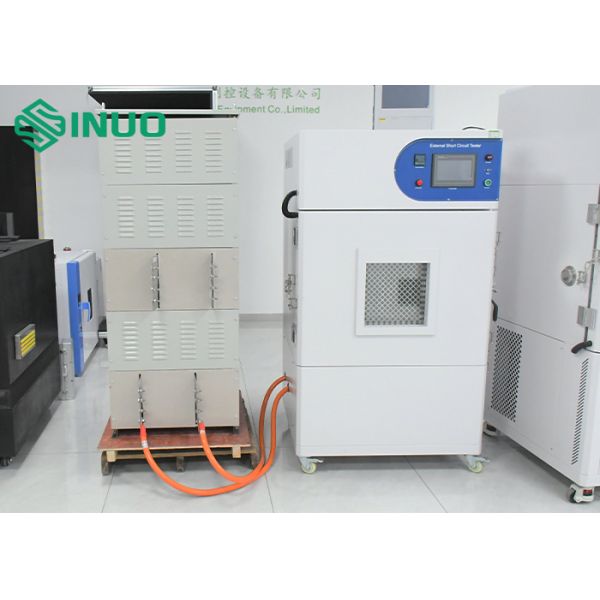

  • 300×300mm Double-Layer Tempered Glass Viewing Window
  • Mobility System with 4 casters and positioning foot cups
Data Acquisition System
Current Channels 1 channel, 0-2000A DC, ±0.5% F.S. accuracy
Voltage Channels 1 channel, 0-100V DC, ±0.2% F.S. accuracy
Temperature Channels 1 channel, 0-100℃, ±2℃ accuracy
Battery Surface Temperature 1 channel, -20 to 1000℃ range
Data Rate 1 sample/second for all channels
Control System
Advanced PLC with 64K memory, 0.065μS instruction processing, and 7-inch TFT touch screen (800×480 resolution, 16.7M colors). Supports USB data export in CSV format and image capture in JPG format.
Physical Specifications
External Dimensions Approx. W900 × D850 × H1500mm
Weight Approximately 300kg
Power Requirements AC 220V, 50/60Hz, 3kW total power
Installation Requirements
  • Minimum 600mm clearance from walls, 1000mm front operating space
  • Floor load capacity ≥300kg/㎡
  • Ventilated laboratory with smoke exhaust system (φ100mm pipe)
  • Proper lighting and emergency evacuation routes
  • Fire safety equipment readily available
  • Stable, vibration-free environment without electromagnetic interference
Installation space requirements diagram:
UL 2580 Clause 26 Temperature Controlled External Short Circuit Tester With High Current 2000A
Operation Procedure
  1. Position equipment and level using adjustable feet
  2. Connect power and perform system test
  3. Configure test parameters via touch screen
  4. Place battery on chamber rack and secure door
  5. Initiate test and monitor until completion
  6. Open door only after observation period ends
