Specifications
Brand Name :
Sinuo
Model Number :
SN9927
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
15 Days
Packaging Details :
Carton
Applicable standards :
IEC 62560
Applicable clause :
Clause 15
Input voltage :
No more than AC 264V
Output current :
No more than 2A
Test station :
Single Station
Operation mode :
Operation Mode
Description

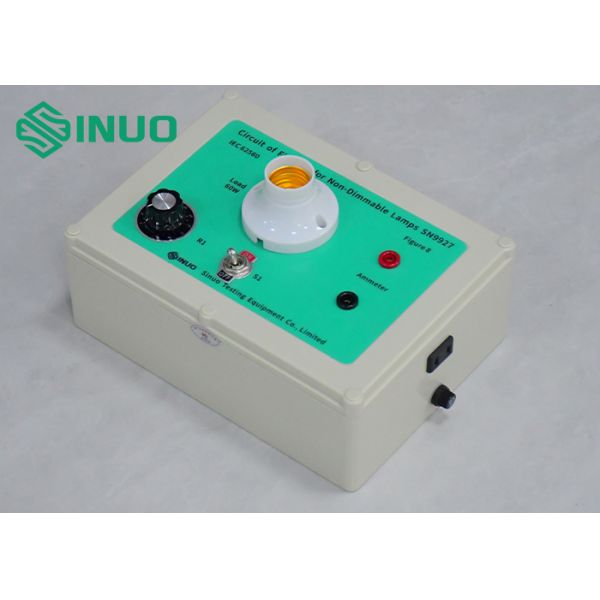

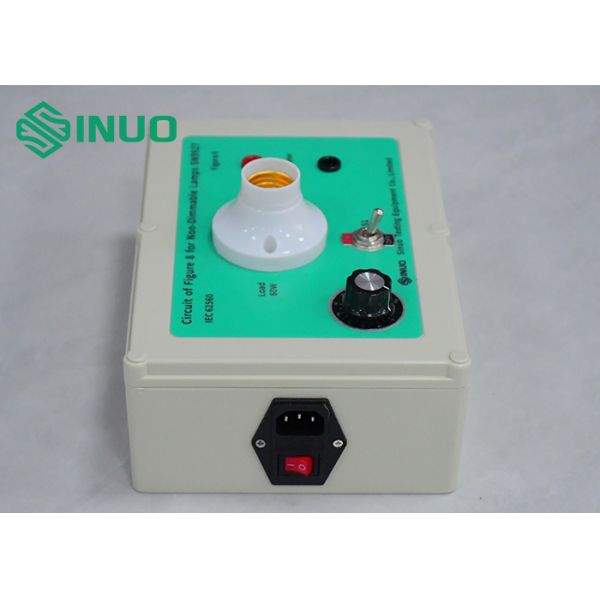

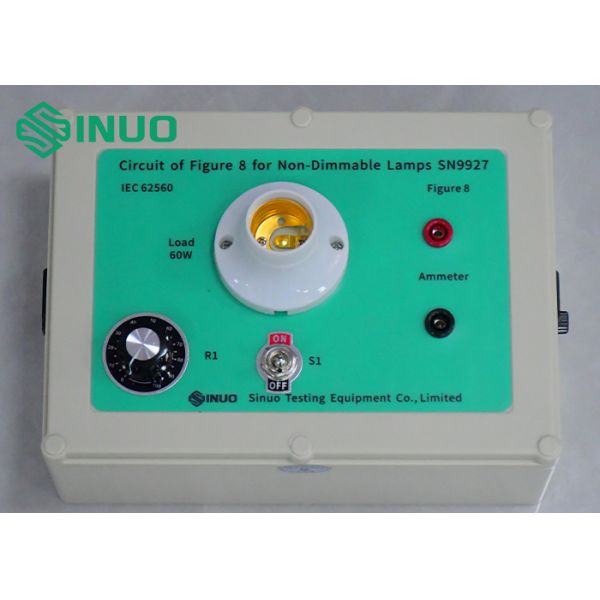

IEC62560 Clause 15 Figure 8 Lamp Testing Equipment for Non Dimmable Lamps Compliance Test
This testing equipment is specifically designed to meet the requirements of IEC 62560 Clause 15, providing a reliable and standardized solution for evaluating the performance of non-dimmable self-ballasted LED lamps. The system simulates the electrical conditions defined in the Figure 8 test circuit, ensuring accurate verification of lamp compliance, stability, and operational characteristics under specified conditions.
IEC62560 Clause 15 Figure 8 Lamp Testing Equipment for Non Dimmable Lamps Compliance Test
Key Features
  • Fully compliant with IEC 62560 Clause 15 testing requirements
  • Designed for non-dimmable self-ballasted LED lamps
  • Accurate simulation of Figure 8 circuit conditions
  • Stable and reliable electrical performance testing
  • Easy operation with user-friendly interface
  • High repeatability for consistent test results
Technical Parameters
Parameter Specification
Input voltage AC ≤ 264V 50Hz
Output current ≤ 2A
Operation Procedure
15. Abnormal Operation Testing
Self-ballasted lamps shall not create hazard under abnormal operating conditions. Self-ballasted lamps shall be constructed so that as a result of abnormal or careless operation, the risk of fire and mechanical damage impairing safety of protection against electric shock is obviated. Applying non-dimmable self-ballasted lamps on a dimmer or an electronic switch is to be tested as a possible case of abnormal operation.
Test Procedure

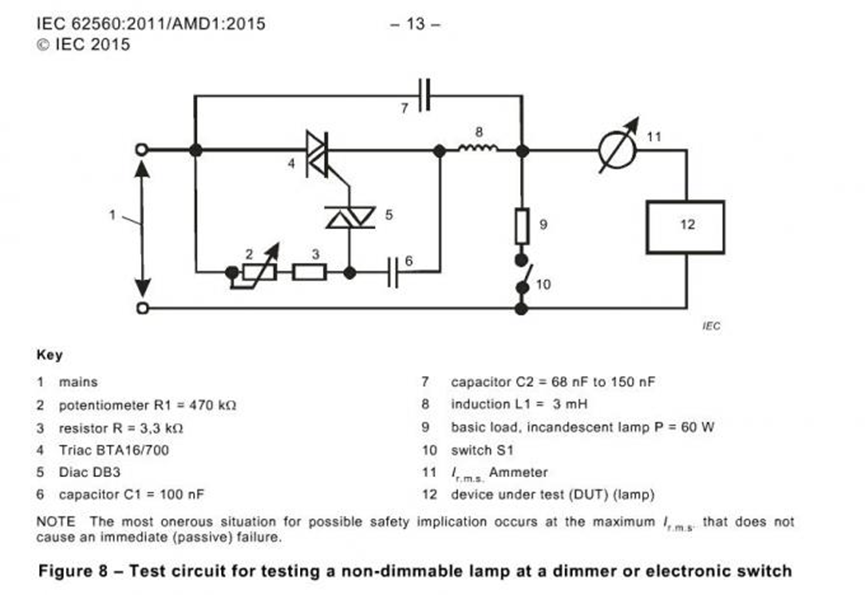

  1. Test non-dimmable lamp in test circuit shown in figure 8
  2. Determine R1 and S1 setting at which the maximum I r.m.s occurs
  3. Test at this situation, and if the lamp passively fails within 60 min, repeat the test at 10% lower I r.m.s
  4. The lower I r.m.s shall be set in the decreasing potentiometer resistance direction
  5. Repeat this procedure until stable operation is achieved for minimum 60 min
IEC62560 Clause 15 Figure 8 Lamp Testing Equipment for Non Dimmable Lamps Compliance Test IEC62560 Clause 15 Figure 8 Lamp Testing Equipment for Non Dimmable Lamps Compliance Test IEC62560 Clause 15 Figure 8 Lamp Testing Equipment for Non Dimmable Lamps Compliance Test
