IEC 62196-1 Cable Anchorage Pull Force & Torque Test Apparatus for EV Plugs & Connectors

Product Information​:

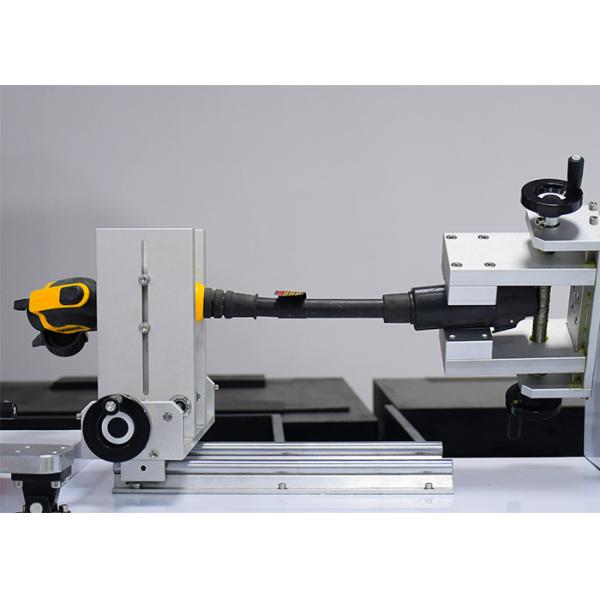

The Cable Anchorage Pull Force and Torque Test Apparatus is a professional testing machine designed for EV plugs, connectors, and socket-outlets, ensuring their ability to withstand specified pull forces and torque stresses. This equipment is manufactured in compliance with IEC 62196-1:2020 clause 25.3 Figure 17 & Table 11 and IEC 60309-1:2012 clause 23.3, making it an essential tool for electric vehicle charging system testing, quality control, and certification.

Working Principle:

Pull Force Test: Achieved through a single-phase speed-regulating motor driving an eccentric mechanism. The motor’s adjustable speed ensures accurate timing for each applied pull cycle.

Torque Test: Realized by releasing the torque weight via an air cylinder, simulating torque stress on EV connectors.

This dual-function design guarantees precise and repeatable results for both pull force endurance and torque resistance tests.

Technical Parameters​:

Operation Method PLC control
Drive Mode Motor and cylinder
Tension schematic diagram IEC 62196-1 Cable Anchorage Pull Force & Torque Test Apparatus for EV Plugs & Connectors
Pull Force Weights

50N, 60N, 110N, 1 each, 40N, 2 pcs, 100N, 3 pcs, can test 160N, 200N, 240N, 250N, 500N, 600N

IEC 62196-1 Cable Anchorage Pull Force & Torque Test Apparatus for EV Plugs & Connectors
Torque Weights

0.1 N.m, 0.15 N.m, 0.20 N.m,, 0.25 N.m, 0.3 N.m, 0.35 N.m, 0.4 N.m, 0.425 N.m, 0.6 N.m, 0.7 N.m, 1.2 N.m, 1.5 N.m, 2.3 N.m, 11.0 N.m
In addition, it complies with UL2594 Table 25: 0.41 N.m, 0.54 N.m, 0.68 N.m, 1.4 N.m, 2.7 N.m, 5.4 N.m, 10.8 N.m, 16.3 N.m, 22 N.m

IEC 62196-1 Cable Anchorage Pull Force & Torque Test Apparatus for EV Plugs & Connectors
Torque Arm R100mm(Ф200mm)
Pull Frequency 1cycle/s
Pull Cycles 1-9999 cycles, can be preset, default 100 cycles
Torque Applied Time 0-99H59M59S, can be preset, default 1min
Fixture One set of universal fixtures
Equipment Dimensions & Weight W1600*D500*H1135mm, the whole machine is about 100Kg
Power Supply Single phase AC220V±10%, 60Hz, 1KW

Key Features & Benefits:

✔ Compliant with IEC 62196-1:2020 & IEC 60309-1:2012

✔ PLC-controlled system with user-friendly interface

✔ Adjustable pull force (up to 600N) and torque (up to 11N·m) for wide applications

✔ High precision motor & cylinder system for stable, repeatable testing

✔ Universal fixture design for different EV plugs and connectors

✔ Suitable for EV charging gun manufacturers, laboratories, certification bodies

Applications:

Electric Vehicle Charging Plugs and Connectors

EV Socket-Outlets Testing

Charging Infrastructure Quality Control

Laboratory and Third-Party Certification Testing

Research & Development of EV Charging Products

IEC 62196-1 Cable Anchorage Pull Force & Torque Test Apparatus for EV Plugs & Connectors

IEC 62196-1 Cable Anchorage Pull Force & Torque Test Apparatus for EV Plugs & Connectors

IEC 62196-1 Cable Anchorage Pull Force & Torque Test Apparatus for EV Plugs & Connectors
