Specifications
Brand Name :
Sinuo
Model Number :
SN441-1000L
Certification :
Calibration Certificate(Cost Additional )
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Fine dust :
≤75 μm
Coarse dust :
≤150 μm
Dust Baking Range :
RT+10℃-60℃
Talcum powder dosage :
2–5 kg/m³
Air flow velocity :
≤2 m/s
Air flow meter :
1–20 L/min
Description

Sand And Dust Test Chamber Simulate Sandy Environments IEC60529 Figure 2

Product information:

This equipment is used to test the resistance of electrical and electronic products, automotive and motorcycle parts, and seals to sand and dust ingress. It simulates natural and artificially induced sandy environments to evaluate product performance during use, storage, and transportation, helping to identify potential damage from airborne particles.

Compliant standards:IEC60529 Fig 2 IP5X and IP6X, IEC60598-1-2008, IEC60335-1 Clause 22.1 and etc.

technical parameters:

1.Dust Conditions

1.1 Baking dust temperature range: RT+10℃ ～ 60℃

1.2 Fine dust: ≤75 μm

1.3 Coarse dust: ≤150 μm

1.4 Dust concentration: 2 kg/m³

1.5 Talcum powder dosage: 2–5 kg/m³

1.6 Dust blowing method: From top to bottom

2. Air Flow & Pressure

2.1 Air flow velocity: ≤2 m/s

2.2 Air flow meter: 1–20 L/min

2.3 Negative pressure difference range: -10 ~ 0 kPa (adjustable),Air pressure can be freely set at -2 kPa, -5 kPa, -10 kPa

3. Filtration & Mesh

3.1 Metal mesh diameter: 50 μm

3.2 Nominal spacing between lines: 75 μm or ≤150 μm

4. Timing Controls (adjustable)

4.1 Shock time: 1 s – 99 h

4.2 Test time: 1 s – 99 h

4.3 Dust blowing control cycle: 1 s – 99 h

4.4 Vacuum time: 1 s – 99 h

5. Controller Functions

5.1 Adjustable dust blowing time (stop / blowing)

5.2 Cycle: Arbitrary adjustable

5.3 Preset test time: 0.1-9999.9 h (adjustable)

5.4 Power control: On- Off-On

6. Mechanical & Electrical

6.1 Circulation fan: Closed alloy low-noise motor, multi-blade centrifugal fan

6.2 Load bearing: 20 kg

6.3 Observation window: 1 PC

6.4 Lighting lamp: 1 PC

6.5 Sample power socket: Dust-proof socket AC220V / 16A

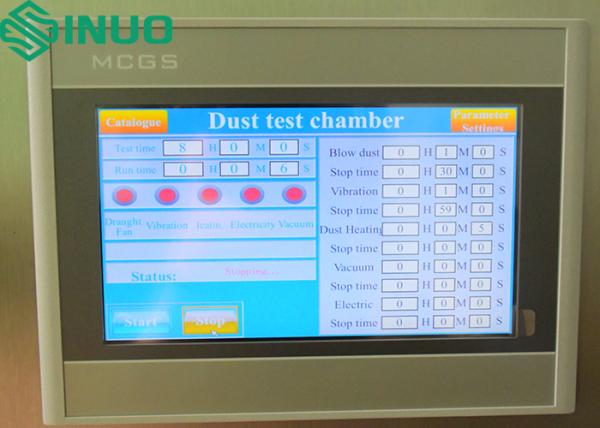

6.6 Control system: PLC controller + touch screen

6.7 Vacuum system: Pressure regulating valve, nozzle, pressure regulating set, connecting pipe, vacuum pump

6.8 Dust heating system: Stainless steel mica sheet heating sleeve

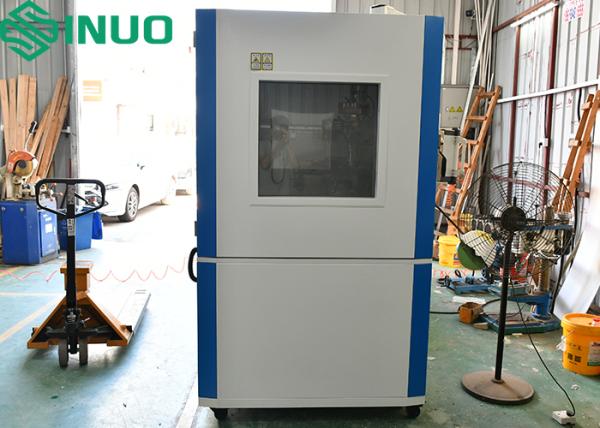

7. Construction

7.1 Inner chamber material: SUS201 stainless steel mirror panel

7.2 Outer chamber material: Electrostatic spray-coated A3 iron plate

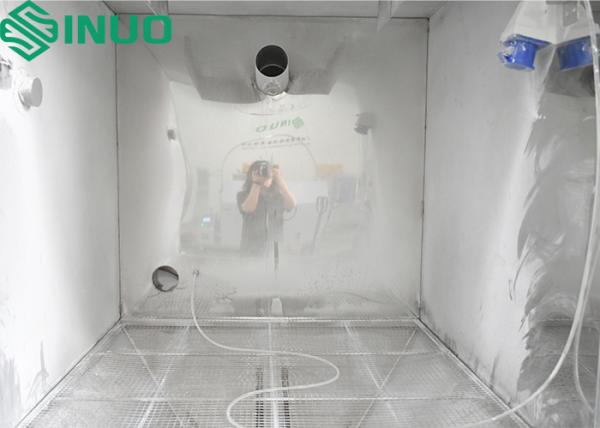

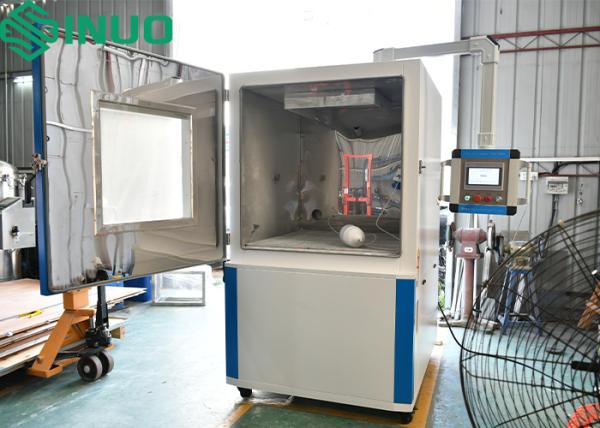

7.3 Structure includes: Test chamber, dust suction port, circulating dust blowing device, vacuum system, flow valve, heating system, protective screen, etc.

8. Power & Environment

8.1 Power supply: AC380V, three-phase five-wire, 50 Hz, Requires separate 32A air switch with terminal blocks, Power cord: ≥4 mm²

8.2 Power consumption: 3 kW (no load)

8.3 Environmental conditions: Temperature (23±5)℃; relative humidity 25%–70% RH; atmospheric pressure 86–106 kPa

9. Safety Protection

9.1Phase sequence protection, Leakage protection

Main accessories list:

No. Name Brand Remark
1 Touch screen controller MCGS
2 PLC XINJE
3 AC contactor CHINT
4 Intermediate relay CHINT
5 Phase sequence protector CHINT
6 Illuminated button ONPOW
7 Emergency stop ONPOW
8 Alarm ONPOW
9 Circuit breaker CHINT
10 Flow meter Made in China
11 Mica heating plate Customize
12 Digital pressure gauge SMC
13 Transfer switch GELEI
14 Vortex air pump JIUZHOU
15 Vibration motor RPM300
16 Smart thermostat DELTA
17 K2M probe KERUNMEI
18 Vacuum mercury FEIYUE
19 Dust bag Made in China
20 Dustproof socket Made in China
21 Dust blowing pipe Customize
