Specifications
Brand Name :
Sinuo
Model Number :
SN9926
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Standard :
IEC60598-1
Clause :
Clause 4.4.4
Force range :
0-500N
Test stroke :
0-500mm
Force speed :
0-300mm/min
Results display :
Force-time curve
Drive mode :
Motor drive
Clamping method :
Mechanical clamping
Description

IEC 60598-1 Fluorescent Lamp Axial Force Tester for Mechanical Strength of Lamp Holder Test

Product Information:

Standard: IEC60598-1:2014 "Luminaries - Part 1: General requirements and tests" clause 4.4.4
IEC62560:2015 "Self-ballasted LED-lamps for General lighting services by voltage >50V - Safety specifications" clause 9.4


Specimen and Limitations: Lampholders for fluorescent lamps and self-rectified lamps.


Test Purpose: Used to test the mechanical strength of lampholders for fluorescent lamps and self-rectified lamps.

Test Principle: A motor-driven pressure plate applies a constant pressure to the center of the lamp holder. This forces the test lamp holder vertically along the axis of the fluorescent lamp until the force reaches a constant value for 1 minute, then releases the pressure.

IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test

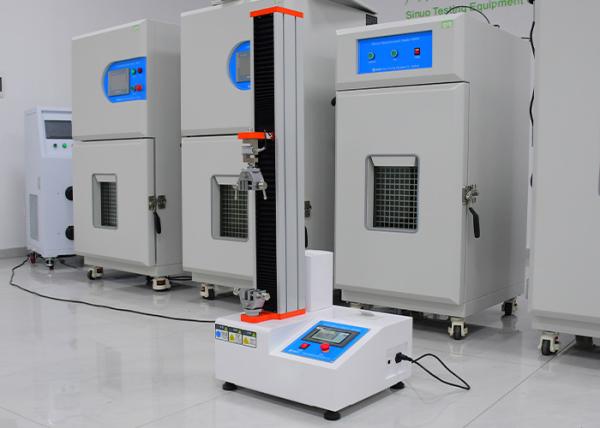

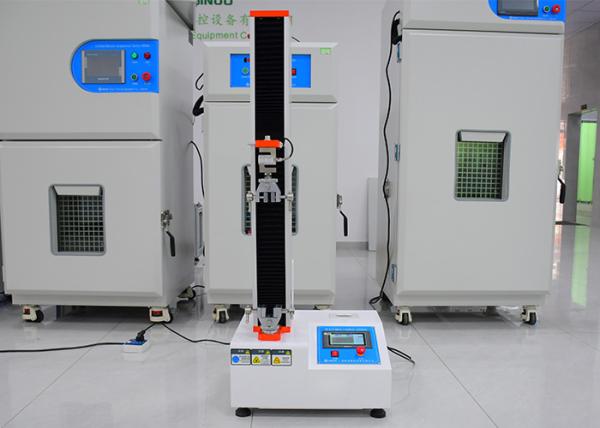

Structure and Features: Single-arm force-applying mechanism with adjustable force value and LCD display.


Operating environment: AC220V, 50Hz

Technical Parameters:

Item Specification
Test Station Single station

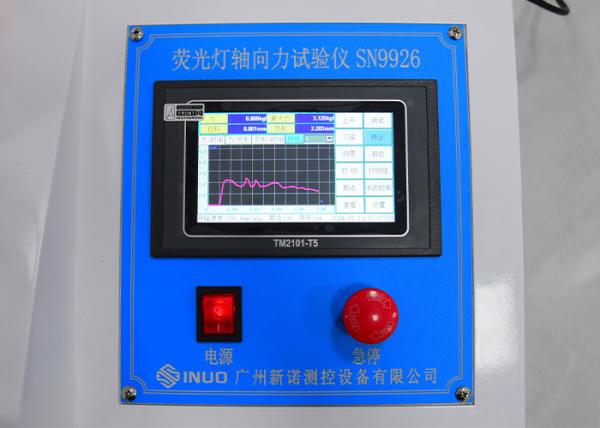

Electrical Control LCD interface operation and display, with force–time curve
Drive Mode Motor-driven
Specimen Clamping

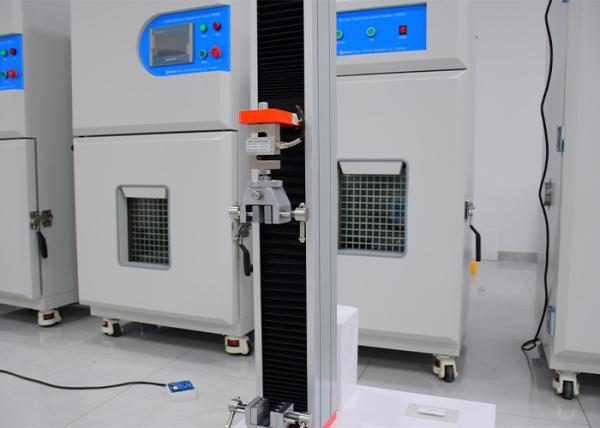

Mechanical clamping, adjustable clamping point position

IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test
Force Range 0–500 N, resolution 0.1 N, accuracy ±1% F.S. Capable of meeting IEC 60598-1 requirements (15 N & 30 N) and IEC 62560:2015 requirements (80 N & 120 N)
Test Lampholders

7006-6-1, 7006-27H-1, 7006-27F-1, 7006-27B-1, 7006-27-7 (one of each)

IEC 60598-1 Fluorescent Lamp Axial Force Tester for mechanical strength of lamp holder test
Force Speed 0–300 mm/min
Stroke 0–500 mm, resolution 0.01 mm
Result Display Force–time curve display; test results can be output via mini printer
