Specifications
Brand Name :
Sinuo
Model Number :
SN446B
Certification :
Calibration Certificate(Cost Additional )
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
100 sets per month
Delivery Time :
5 Days
Packaging Details :
Exporting package
Compliance Standard :
IEC 60529-2013 Figure 5
IP Code :
IPX3 and IPX4
Nozzle Design :
121 holes (Ø0.5mm)
Nozzle Material :
Brass
Water Flow :
10L/min ±5%
Pressure Range :
50～150Kpa
Description

IPX3 And IPX4 Water Ingress Testing For Lighting Fixtures IEC 60529 Figure 5

Product information:

It meets the requirements of IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX3 and IPX4, Figure 5.

The spray nozzle is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water spraying and splashing at degree IPX3 and IPX4.

Technical parameters:

Spray Nozzle Dimensions:Outer Ø102mm, spherical Ø75.5mm
Holes:121 (1 center, 2 inner rings of 12 holes @30°, 4 outer rings of 24 holes @15°), all Ø0.5mm
Material:Brass
Water Flow 10L/min ±5% (adjustable via flow meter)
Pressure 50–150 kPa (gauge range: 0–0.25 MPa)
Moving Shield

Material: Aluminum (detachable)

Note: Handle with care to avoid deformation

Structure:

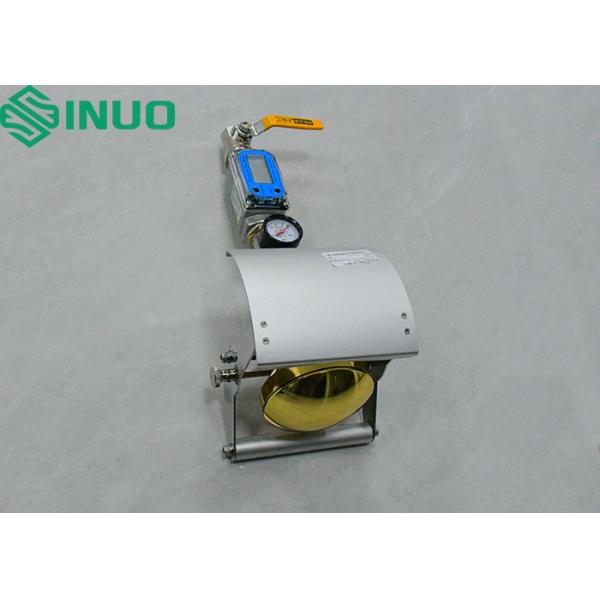

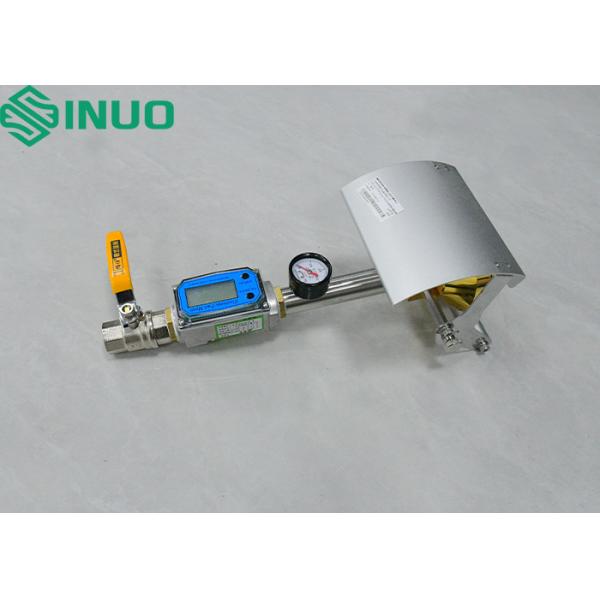

This device is manufactured in accordance with IEC 60529, Figure 5. Equipped with a digital flowmeter and a handle-mounted pressure gauge, it enables IPX3/IPX4 hand-held spray testing when connected to a water pipe (to be provided by the user). By regulating the water supply flow, the system ensures that the spraying and splashing rate meets the standard requirements, allowing the specimen’s enclosure to be uniformly splashed from all directions.
