Specifications
Brand Name :
Sinuo
Model Number :
SNQC1009
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 Sets Per Month
Delivery Time :
30 days
Packaging Details :
Plywood Case
Test Station :
Single station
Drive Mode :
Servo motor
Clamping Method :
Mechanical clamping
Control Method :
PLC control
Flexing Angle :
0-360°, adjustable
Flexing Rate :
0-60 cycles/min
Flexing Cycles :
0~999999 can be preset
Load Power :
Built-in, with adjustable phase
Description

IEC 62196-1 Non-Rewireable Accessories Flexing Test Apparatus For Vehicle Plugs Test

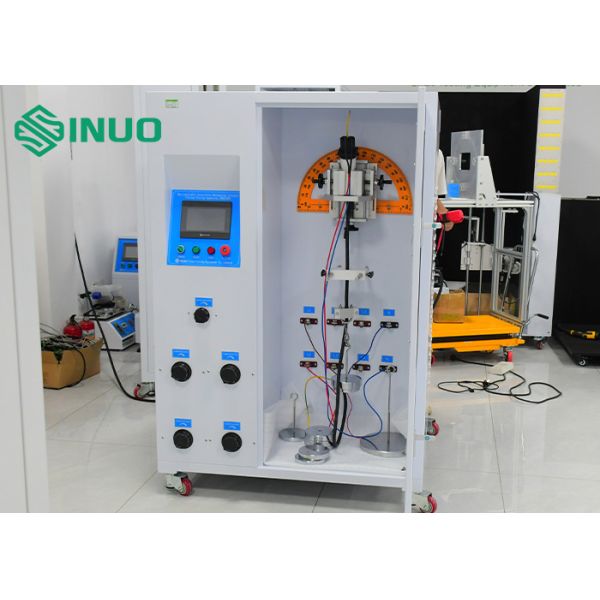

Product Overview:

The Non-Rewireable Accessories Mechanical Strength Flexing Testing Apparatus is specially designed according to IEC 62196-1:2022 clause 26.4 table 14 and IEC 60309-1:2012 clause 24.4 figure 9.
It is used for conducting mechanical load flexing tests on vehicle plugs, socket-outlets, and couplers for non-rewireable accessories.

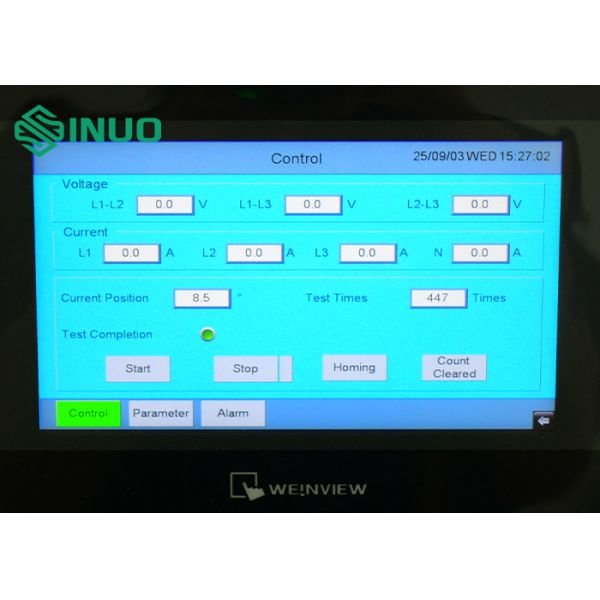

Equipped with PLC intelligent control, a 7-inch color HMI, and a high-precision servo motor, the system ensures accurate angle control, stable flexing frequency, and fully automated testing.
The operator can preset the flexing angle, flexing speed, and test cycles directly from the touch screen. The machine automatically runs the test and stops when reaching the preset cycle count.

The apparatus includes built-in load power, allowing adjustable phase voltage and current during testing. Modular fixtures, digital display, frequency conversion control, and high-precision speed adjustment make it ideal for professional laboratories and certification centers.

Features:

✔ Fully compliant with IEC 62196-1 & IEC 60309-1 test standards

✔ Servo motor drive for precise and stable flexing motion

✔ PLC control with 7-inch color touchscreen

✔ Adjustable flexing angle 0–360° (default 90°, 45° each side)

✔ Preset flexing rate up to 60 cycles/min

✔ Up to 999,999 programmable test cycles

✔ Built-in load voltage (0–250V) and AC 0–400A adjustable

✔ Automatic test completion signal

✔ Modular fixtures with adjustable clamping point

✔ Six-digit memory settings & digital precision control

Technical Parameters:

Test Station Single
Electrical Control Method PLC intelligent integrated control, 7-inch humanized touch interface operation
Drive Mode Servo motor

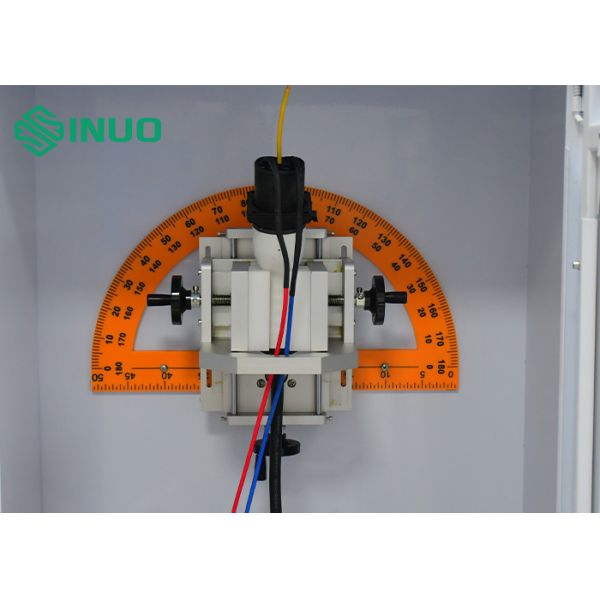

Sample Clamping Method Mechanical clamping, the position of clamping point is adjustable
Flexing Angle 0-360° can be adjusted freely (default 90°, 45°on either side of the vertical)
Flexing Rate 0-60 cycles / min, can be preset
Flexing Cycles 0~999999 can be preset, default 20000 cycles
Load Weights 20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Load Power

Built-in, with adjustable phase voltage between conductors 0-250V and current AC0-400A adjustable

Note: for load >400A, please use an external power source
Test Judgment Judging by the signals given when the current is conducted or not
Equipment Dimensions & Weight L 850mm *W 800mm *H 1500mm, the whole machine is about 300Kg
Power Supply Three phase AC380V±10%, 50/60Hz
Common Faults and Treatments:
No. Fault Reason Treatment

1

 Turn on the POWER switch, but the indicator light not turn on The external power supply is not connected Please connect to the external power supply
The fuse is broken Find out the reason and change the fuse.
The indicator light damaged Replace the light

2

 Turn on the POWER switch, Touch screen not work The internal DC24V power supply is in problem Replace the DC24V power supply
Touchscreen damaged Replace the touchscreen
3 Touch screen no response Connection to PLC loose Reconnect
Touchscreen damaged Replace the touchscreen
4 Load power no power supply Load socket damaged Replace the socket
The fuse is broken Change the fuse

5

Press down Start button, but the fixture do not work.

 The display value and preset value of test times are the same Press Count Cleared
The E-STOP button is not reset Release E-STOP button
There is foreign object in the machine, the machinery is stuck Remove the foreign object
It is not under auto test mode Press Start button
Connection to motor loosen Reconnect
Not in starting position Homing
6 Motor rotates but the manipulator does not rotate Check whether the motor output shaft connector is loose Re-connect
Check whether the drive belt is broken or too loose Replace the drive belt
7 Noise Swivel speed low or too high Reset the speed
Connection to motor loosen Reconnect
