IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SNQC1009
Certification :
Calibration Certificate(Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
Plywood case
Test Station :
Single
Drive Mode :
Servo motor
Flexing Angle :
0-360° can be adjusted
Flexing Rate :
0-60 cycles / min, can be preset
Flexing Cycles :
0~999999 can be preset, default 20000 cycles
Load Weights :
20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N
Description

IEC62196-1 Charging Gun Mechanical Strength Flexing Testing Apparatus


Product information:

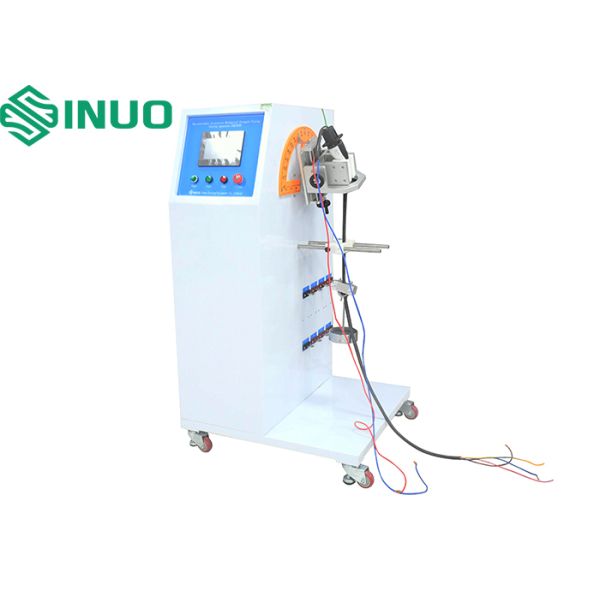

The flexibility testing apparatus is designed and manufactured according to requirements of IEC62196-1: 2022 clause 26.4 table 14, IEC60309-1: 2012 clause 24.4 figure 9, etc. It is used to process the mechanical load flexing test of the vehicle plugs, socket-outlets and couplers non-rewireable accessories.


The equipment adopts PLC control and operated by 7-inch colour human-machine interface, uses a servo motor to control the flexing angle. The flexing angle, flexing speed and the test cycles can be preset on touch screen. The test is automatically carried out according to the set parameters. When the test times reach the preset number of test times, the device automatically stops and gives the test completion signal prompt. The test equipment has the advantages of high-precision digital display, high-efficiency digital frequency conversion, precise speed adjustment, six-digit memory setting, multi-function modular fixture, rotating center centering measuring tool, and built-in load which can supply load voltage to test sample during test.


Technical parameters:

Test Station

Single

Electrical Control Method

PLC intelligent integrated control, 7-inch humanized touch interface operation

Drive Mode

Servo motor

Sample Clamping Method

Mechanical clamping, the position of clamping point is adjustable

Flexing Angle

0-360° can be adjusted freely (default 90°, 45°on either side of the vertical)

Flexing Rate

0-60 cycles / min, can be preset

Flexing Cycles

0~999999 can be preset, default 20000 cycles

Load Weights

20N, 25N, 50N, 75N, 100N, 120N, 140N, 180N

Load Power

please use an external power source

Test Judgment

Judging by the signals given when the current is conducted or not

Equipment Dimensions & Weight

L 850mm *W 800mm *H 1500mm, the whole machine is about 300Kg

Power Supply

Three phase AC380V±10%, 50/60Hz
