Standard: Conforms to SAE J2464 Standard (Clause 4.3.3.1: Penetration Test; Clause 4.3.6.1: Crush Test), AIS 038 crush test in page no. 79 of 106 cl.no. 3.2, Nail penetration test in page no. 101 of 106 cl.no. 3.3.2 (a), IEC62133-2012, IS0 12405-4:2018, etc.

• The test software has a voltage acquisition function: automatically collects battery voltage changes during testing and stops when voltage reaches zero.
• Three test modes (pressure, deformation, and voltage) can be used as control variables in any combination.

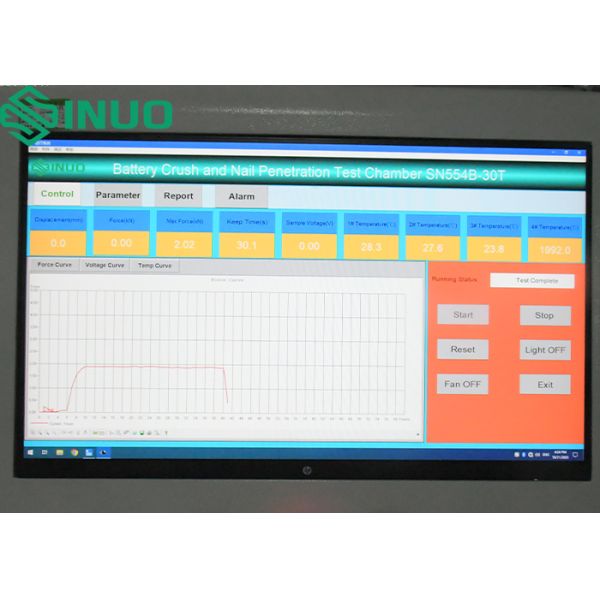

• Computer operating system with Windows dialog box interface provides data saving, comparison and tracking functions.
• Dedicated test control motherboard records force, displacement and voltage simultaneously with real-time monitoring.
• Test can be controlled by collecting voltage signals - stops when set voltage value is reached.
• Displays test speed and allows speed setting in computer software.
• Three test conditions (pressure, deformation, voltage) can be set simultaneously - stops when any condition is met.

• Power supply: AC380(1±10%)V (50±0.5)Hz three-phase four-wire with protective ground wire
• Installation site requirements: flat ground, good ventilation, no strong vibration or electromagnetic fields
• Environmental conditions: Temperature: 20℃±5℃; Relative humidity: ≤85%RH; Atmospheric pressure: 80kPa～106kPa
• Ground load-bearing capacity: ≥650kg/m² (for equipment weight ≤500kg)
• Maintenance space: ≥600mm around equipment for access and door operation

• Reliable grounding system
• Emergency stop switch on control panel
• Threshold protection: stops when test chamber door is opened
• Input protection: undervoltage, overvoltage, overcurrent, phase loss protection
• Operator protection: control system separated from test box for safety

• Doors equipped with 6mm diameter explosion-proof chains and explosion-proof nets
• Pressure relief port automatically releases pressure if exceeds 1KG
• Top-mounted exhaust port for gas discharge
