Specifications
Brand Name :
Sinuo
Model Number :
SNQC1015(750L)
Certification :
Calibration Certificate(Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
30 days
Packaging Details :
plywood case
Inner Dimensions :
1500×500×1000mm
Temperature range :
Room temp ~ 100℃
Temperature stability :
<1.5℃
Heating power :
18kW
Insulation power :
5kW
Temperature Circulation :
Circulating pump for uniform temperature
Description
Water Bath For PVC Cable Testing With Digital Temp Control & Circulating Pump

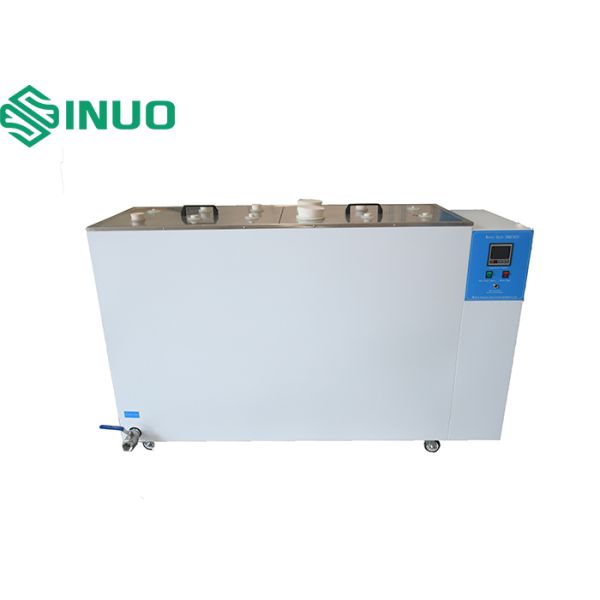

This stainless steel water bath equipment features electric heating with intelligent temperature control and digital display. Designed for PVC cable testing, it ensures temperature uniformity through optional circulating pump functionality, making it ideal for constant temperature applications with water or oil.
Key Features
  • Stainless steel construction for durability and corrosion resistance
  • Precision digital temperature control with LCD display
  • Optional circulating pump for uniform temperature distribution
  • Insulation ports for cable threading during tests
  • Compliant with IEC 60811-402:2012 and IEC502-83 standards
  • Low water level alarm and automatic shut-off protection
  • Automatic water replenishment system
  • Computer interface (485) for data monitoring
Technical Specifications
Parameter Specification
Inner Dimensions (L×W×H) 1500 × 500 × 1000 mm
Temperature Control Range Room temperature to 100°C (user adjustable)
Temperature Stability <1.5°C
Electric Heating Power 18kW
Insulation Power 5kW
Input Voltage AC 380V/50HZ

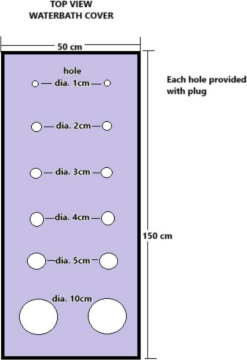

Cover Hole Configuration 12 holes (2 each of 1, 2, 3, 4, 5, 10 cm)
Water Bath For PVC Cable Testing With Digital Temp Control & Circulating Pump
Usage Instructions
Before operation, carefully review the manual and verify instrument insulation using a megohmmeter. This equipment requires distilled water for operation - river water, hard water, or untreated tap water may cause scale buildup and affect performance. Regular cleaning is recommended when using tap water.
Note: This equipment is specifically designed for electrical performance testing of PVC plastic cables and is suitable for quality inspection agencies and wire/cable manufacturers.
