Specifications
Brand Name :
Sinuo
Model Number :
SNM01
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Test station :
Single station
Control method :
PLC control
Test size range :
WDH=120cm*200cm*130cm
Sample clamping method :
Mechanical clamping
Loading force value :
0-4000N
Constant force time :
0-9999min
Force application speed :
0-300mm/min
Test frequency :
0~999999 times
Description
Intelligent Medical Bed Comprehensive Test System for IEC60601-1 for Hospital Bed Safety Test

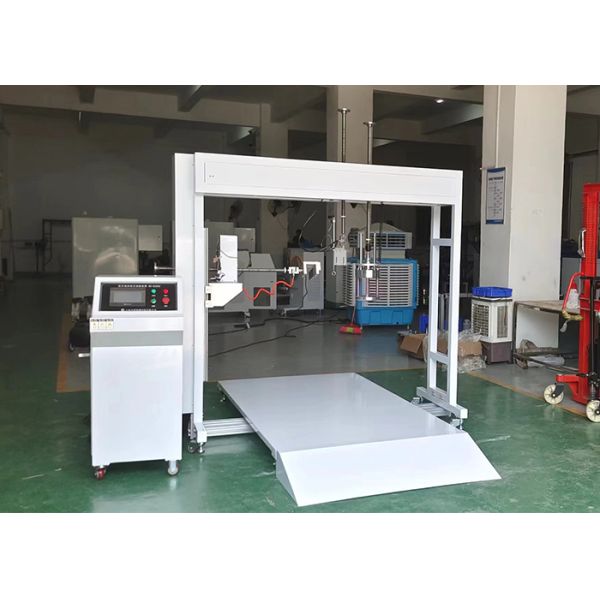

The Fully Automated Medical Bed Comprehensive Test Device is designed for performance, safety, and durability testing of electrically operated medical beds in accordance with IEC 60601-1 standards. The system integrates multiple testing functions into one intelligent platform, helping manufacturers and laboratories efficiently complete medical bed compliance verification.
This advanced testing system adopts automatic control technology, precision sensors, and programmable testing procedures to improve testing accuracy and reduce manual intervention. It is suitable for hospital beds, nursing beds, rehabilitation beds, and other electrically adjustable healthcare furniture.
Key Features
  • Compliant with IEC 60601-1 Testing Requirements: Developed according to IEC 60601-1 standards for medical electrical equipment safety and performance evaluation.
  • Fully Automated Testing Process: The equipment supports automatic execution of multiple testing procedures, improving testing consistency and operational efficiency.
  • Multi-Function Integrated Design: Combines various testing functions for medical beds into a single system, reducing laboratory equipment requirements.
  • Intelligent PLC Control System: Equipped with a PLC and touch screen interface for parameter setting, data monitoring, and automatic test operation.
  • High Precision Force and Displacement Measurement: Integrated sensors provide accurate measurement of load, movement, and displacement during testing.
  • Durable Mechanical Structure: The heavy-duty frame structure ensures long-term stable operation under continuous testing conditions.
  • Customizable Testing Configuration: Different fixtures, loading systems, and software functions can be customized according to customer requirements.
Main Testing Functions
  • Medical bed stability testing
  • Side rail strength testing
  • Bed frame durability testing
  • Actuator performance testing
  • Load capacity verification
  • Movement and lifting cycle testing
  • Mechanical safety evaluation
  • Functional operation testing
Working Principle
The medical bed is positioned on the testing platform and connected to the automated control system. According to preset testing programs, the equipment performs various mechanical and functional tests such as lifting, cyclic movement, load application, and stability evaluation. Test data is automatically collected and displayed through the control interface for analysis and compliance assessment.
Technical Specifications
Equipment dimensionsAbout: 1500*2300*2100 (mm) W*D*H
Equipment weight500kg
Usage environmentPower supply: AC220V±10%/50-60Hz, power 3.0KW
StationSingle station can be customized
Electrical control methodPLC intelligent integrated control, color human-machine touch interface operation
Test size rangeNot larger than WDH=120cm*200cm*130cm
Specimen clamping methodMechanical clamping
Test items and action processes
  • Human body static load test (201.9.8.3.2): loading force value 0-4000N, constant force time: 0-9999min
  • Human body dynamic load test (201.9.8.3.3.1): loading force value 1350N, number of tests: 10,000 times
  • Side rail strength and latch reliability test (201.9.8.3.3.3): Loading force value 1350N with multiple directional force applications and cycles
  • Tensile rod dynamic load test: 750N, 1000 times
  • Impact test on mattress support platform (CC.2.2): Figure CC.2 impactor, impact test of 180mm free fall through automatic lifting device, 20 times
Mechanical action device
  • 1 set of vertical manipulators: force range 0-4000N
  • 1 set of lateral manipulators: force range 0-2000N, 90° direction can be switched
  • 1 set of lifting robotic arms: lifting height 180mm, automatic instant release to achieve free fall impact
Drive modeServo motor + precision reducer drive
Applied force range0-4000N, adjustable, force sensor real-time detection and display
Force application speed0-300mm/min
Constant force time0-9999s can be set
Test frequency0~999999 times can be preset, different tests can be preset according to the standard
Load padFigure 201.104 All-steel load pad
Intelligent Medical Bed Comprehensive Test System for IEC60601-1 for Hospital Bed Safety Test

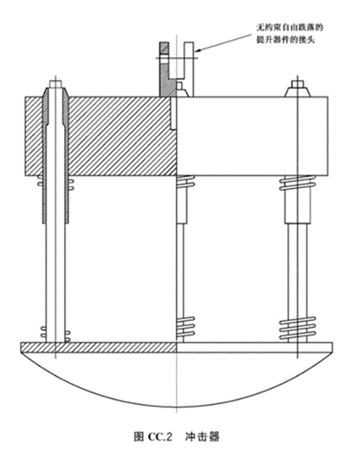

Figure CC.2 ImpactorIntelligent Medical Bed Comprehensive Test System for IEC60601-1 for Hospital Bed Safety Test
FrameAluminum profile frame, suitable for fixing different specimens
Pressure plateStandard 0.1m² piece, the connector is M20 threaded, and the pressure plate can be switched for use
Safety protectionOverload protection, leakage protection
Application Industries
  • Medical bed manufacturers
  • Hospital equipment suppliers
  • Medical device testing laboratories
  • Certification organizations
  • Healthcare product R&D centers
Product Advantages
  • Improves testing efficiency and repeatability
  • Reduces manual testing workload
  • Supports medical device compliance certification
  • Provides stable and accurate testing performance
  • Suitable for different types of healthcare beds
  • Custom engineering solutions available
Frequently Asked Questions
Q1: What types of beds can this equipment test?
A: The system is suitable for hospital beds, nursing beds, rehabilitation beds, electric adjustable beds, and similar medical furniture.
Q2: Does the equipment support fully automatic operation?
A: Yes. The device adopts a PLC-based automatic control system that can execute programmed testing procedures automatically.
Q3: Can the testing functions be customized?
A: Yes. Fixtures, loading methods, and software functions can be customized according to customer testing requirements.
Q4: What standards does the equipment comply with?
A: The system is mainly designed according to IEC 60601-1 requirements for medical electrical equipment safety testing.
Q5: Does the equipment include data recording functions?
A: Yes. The control system supports real-time data monitoring and test result recording.
Q6: Is operator training provided?
A: Yes. We provide operation manuals, remote technical guidance, and training support.
Q7: Can the machine perform cyclic durability tests?
A: Yes. The system supports programmable cyclic testing for long-term durability evaluation.
Q8: Is installation support available?
A: Yes. Remote installation guidance and technical support can be provided after delivery.
