Specifications
Model Number :
SN447B-IPX6
Jet Distance :
2.5~3m
MOQ :
1
Delivery Time :
5 Days
Delivery Rate :
100±5L/min
Price :
Customized
IP Code :
IPX6 grade
Certification :
Calibration Certificate (Cost Additional)
Pressure Gauge :
0~0.25MPa
Supply Ability :
100 Sets Per Month
Applied Standard :
IEC60529
Packaging Details :
Carton Box
Brand Name :
Sinuo
Nozzle Material :
Stainless steel
Place of Origin :
China
Nozzle Internal Diameter :
Ф12.5mm
Payment Terms :
T/T,Western Union
Digital Flow Meter :
8L/min ~120L/min
Description
IEC60529 Figure6 IPX6 Digital Flow Meter Jet Nozzle Ф12.5mm 100±5 L/min
IEC60529 Figure6 IPX6 Digital Flow Meter Jet Nozzle Ф12.5mm 100±5 L/min
Standards Compliant
IEC 60529-2013 "Degrees of protection provided by enclosure (IP code)" IPX6.
Product Overview
The IPX6 Jet Nozzle Set with Digital Flow Meter is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX6.

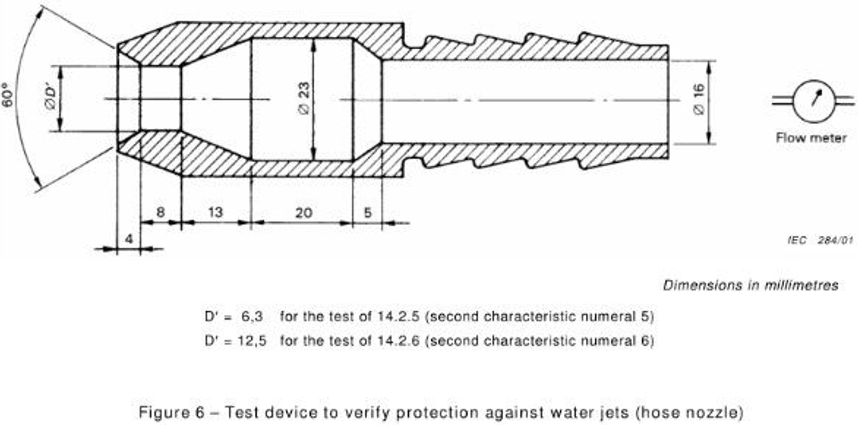

It ensures that the water spray speed reaches the standard required value by controlling the water supply flow, the enclosure is sprayed from all practicable directions with a stream of water from the standard test nozzles as shown in IEC 60529 figure 6.
IEC60529 Figure6 IPX6 Digital Flow Meter Jet Nozzle Ф12.5mm 100±5 L/min
Key Features

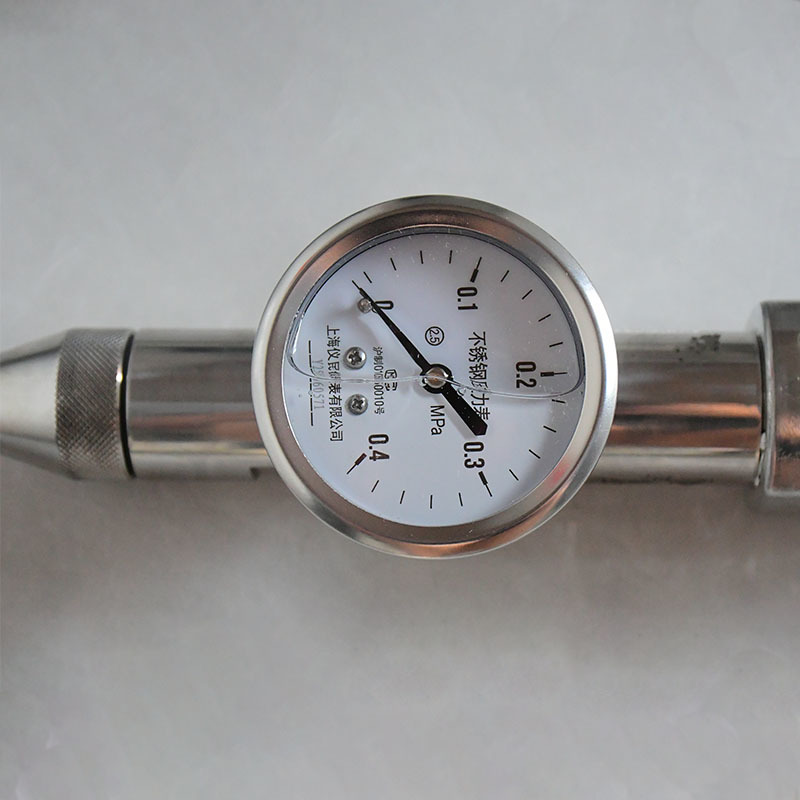

The Jet Nozzle IPX6 Set consists of a jet handle that is equipped with a digital flow mater and a pressure gauge.
  • Ф12.5 mm nozzle assemble easily to the gun
  • Stainless steel joint, easy to butt fiber hose
Technical Parameters
IP Grade IPX6
Nozzle Internal Diameter Ф12.5mm
Water Flow per Standard requirements 100±5 L/min
Distance from Nozzle to Enclosure Surface 2.5~3m
Core of the Substantial Stream Circle of approximately 120 mm diameter at 2.5 m distance from nozzle
Test Duration Likely 1min/m² (minimum: 3 min)
Pressure Gauge Measuring range: 0~0.25MPa
Digital flow meter 8L/min ~120L/min
Operation Instructions
IEC60529 Figure6 IPX6 Digital Flow Meter Jet Nozzle Ф12.5mm 100±5 L/min
Install the water pipe, water pump and hose nozzle as above picture shown, and then adjust the handle to open the valve to adjust the water flow to be 100±5 L/min for IPX6 test.
Make distance from the nozzle to the enclosure surface of the sample to be 2.5~3m, and the enclosure is sprayed from all practicable directions with a stream of water.
IEC60529 Figure6 IPX6 Digital Flow Meter Jet Nozzle Ф12.5mm 100±5 L/min
