IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
Specifications
Model Number :
SN447B-IPX5
Nozzle Material :
Stainless steel
MOQ :
1
Delivery Time :
5 Days
Pressure Gauge :
0~0.25MPa
Price :
Customized
Nozzle Internal Diameter :
Ф6.3mm
Certification :
Calibration Certificate (Cost Additional)
Payment Terms :
T/T,Western Union
IP Code :
IPX5 grade
Digital Flow Meter :
8L/min ~120L/min
Delivery Rate :
12.5±0.625L/min
Supply Ability :
100 Sets Per Month
Applied Standard :
IEC60529
Brand Name :
Sinuo
Jet Distance :
2.5~3m
Packaging Details :
Carton Box
Place of Origin :
China
Description
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min

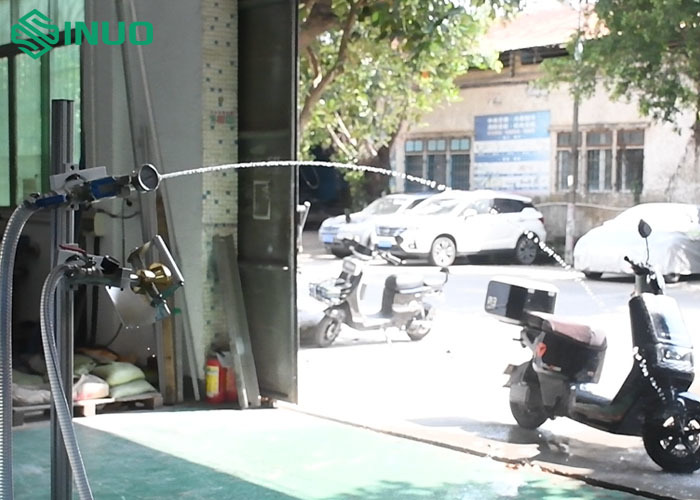

Handheld IPX5 water spray nozzle with flow meter complies with IEC60529 & GB/T4208 standards. The built-in flow meter precisely adjusts and monitors the standard 12.5L/min water flow. It is used to perform IPX5 waterproof spray test on electrical products, chargers, lighting and auto parts. The handheld design enables all-directional spraying to simulate rain and washing conditions, verifying enclosure sealing performance for certification and production inspection.

IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min

This equipment is used to verify the protective performance of the enclosure for electronic and electrical products, automobiles, motorcycle parts, household appliances, seals and lamps under water jets at degree IPX5.

Technical Parameters
Parameter Specification
IP Grade IPX5
Nozzle Internal Diameter Ф6.3mm
Water Flow per Standard requirements 12.5±0.625L/min
Distance from Nozzle to Enclosure Surface 2.5~3m
Core of the Substantial Stream Circle of approximately 40 mm diameter at 2.5 m distance from nozzle
Test Duration Likely 1min/m² (minimum: 3 min)
Pressure Gauge Measuring range: 0~0.25MPa
Digital flow meter 8L/min ~120L/min
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
Operation Steps

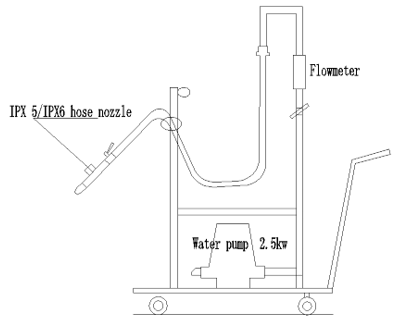

  • Assemble water pipe, water pump and spray nozzle as shown in the reference drawing

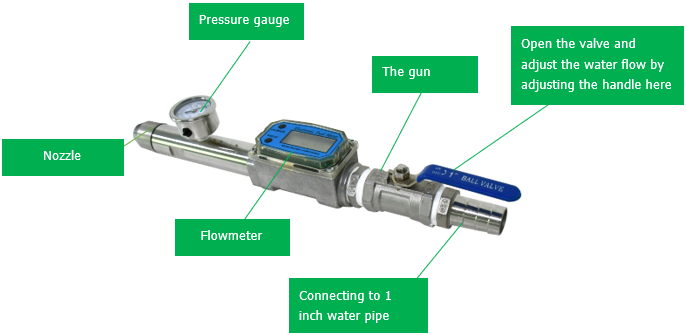

  • Turn the valve handle to regulate water flow
  • Adjust flow rate to 12.5±0.625 L/min via the flowmeter to meet IPX5 test requirements
IEC 60529 IPX5 Spray Nozzle With Digital Flow Meter Ф6.3mm 12.5L/Min
