IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
Specifications
Payment Terms :
T/T,Western Union
Alarm range :
60/34V
Model Number :
SN-SY2000W
Applied clause :
Clause 8.2.7
MOQ :
1
Delivery Time :
7 business days
Residual range :
5~150V
Price :
Negotiable
Testing time :
1s
Certification :
Calibration certificate(cost additionally)
Test impedance :
≥ 100 MΩ
Supply Ability :
15 sets/month
Output power :
2000W
Brand Name :
SINUO
Applied standard :
IEC 60598-1,etc.
Packaging Details :
Export package
Place of Origin :
CHINA
Output voltage :
AC 0~242V
Description

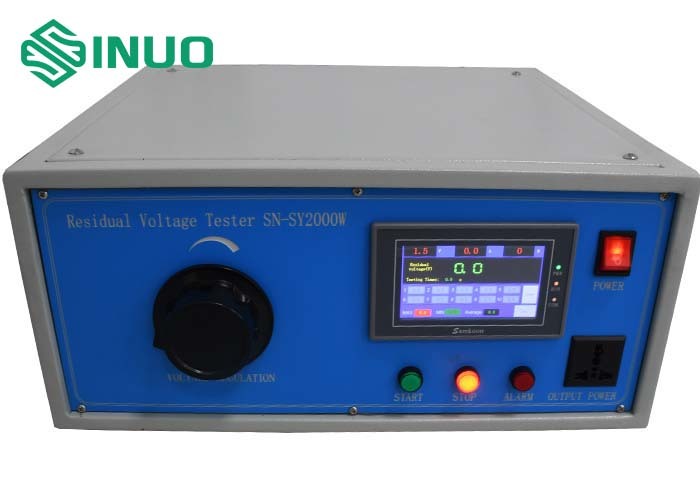

IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
The Residual Voltage Tester complies with clause 8.2.7 of IEC 60598-1:2020 and multiple international standards including IEC 60335-1 Clause 22.5, IEC 60065 Clause 9.1.6, IEC 60601-1, IEC/EN 60598-1 Clause 8.2.7, and IEC 60950-1.
Key Features
  • Performs power interruption testing at peak supply voltage for reliable, repeatable measurement results
  • Test impedance ≥ 100 MΩ, fully compliant with impedance requirements for residual voltage and capacitance measurements
  • Comprehensive testing capabilities including:
    • Residual voltage measurement between power terminals
    • Residual voltage measurement between power terminals and equipment enclosure
    • Residual voltage and capacitance testing of externally accessible capacitors
  • Supports both manual and automatic test modes
    • Manual mode: Phase-to-phase testing with 10 consecutive measurements per pole combination
    • Automatic mode: Sequential three-pole combination tests with 10 measurements per combination
  • Automatically records and retains highest measured residual voltage value
  • Triggers alarm when residual voltage exceeds 60 V or 34 V
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
Technical Parameters
Parameter Specification
Output voltage AC 0~242V
Residual voltage testing range 5~150V
Testing time 1s
Testing impedance 100 MΩ
Testing alarm range 60/34V
Output power 2000W
Testing discrimination Audible and visual alarm, simultaneously cutting off voltage
IEC 60598-1 Clause 8.2.7 Requirements
  • Luminaires (with exceptions) incorporating capacitors exceeding 0.5 μF must include a discharge device ensuring voltage across the capacitor does not exceed 50 V within 1 minute after disconnection at rated voltage
  • Portable luminaires connected via plug, track adaptors, or luminaires with accessible supply connectors containing capacitors exceeding 0.1 μF (or 0.25 μF for luminaires rated below 150 V) must discharge to ≤34 V within 1 second after disconnection
  • Other plug-connected luminaires with capacitors exceeding 0.1 μF (or 0.25 μF for luminaires rated below 150 V) and track adaptors must discharge to ≤60 V RMS within 5 seconds after disconnection
  • Testing must be conducted with the lamp in circuit when measuring voltage from compensation capacitors if it leads to more onerous results
  • Residual voltage measurements are performed on individual luminaires, even when installed in multiple luminaire systems
IEC 60598-1 Clause 8.2.7 Portable Luminaire Residual Voltage Tester
