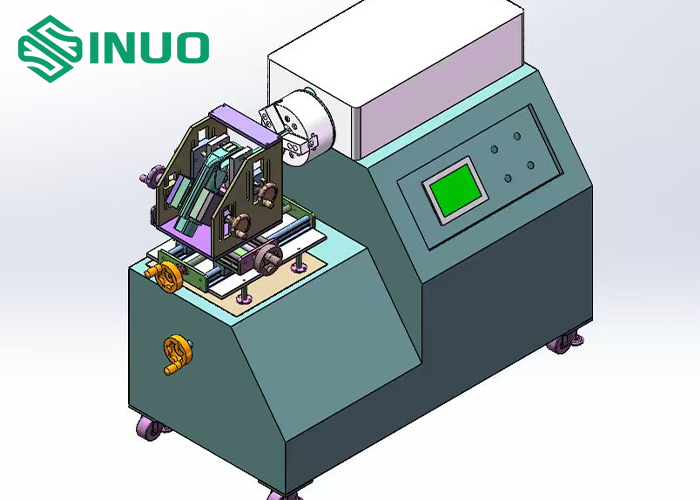

IEC 62196-1 Automatic Charging Gun Cable Torsion Test Machine For EV Charging Gun Cables Testing
IEC 62196-1 Automatic Charging Gun Cable Torsion Test Machine For EV Charging Gun Cables Testing
Specifications
Supply Ability :
5 Sets Per Month
Torque Measuring range :
0–30 N·m
Model Number :
SNQC1007D
Compatible Specimens :
AC & DC charging guns
Payment Terms :
T/T
Rotation Angle :
0 to ±n×360°
Certification :
Calibration Certificate (Cost Additional)
Test Station :
Single station
Price :
Customized
Packaging Details :
Plywood Case
Rotation Speed :
1–360 °/s
Delivery Time :
30 Days
Torque Holding Time :
0–999.9 s
Brand Name :
Sinuo
Test Item :
EV charging gun cables
MOQ :
1
Control System :
Integrated PLC
Description
IEC 62196-1 Automatic Charging Gun Cable Torsion Test Machine For EV Charging Gun Cables Testing
Product Overview

Our charging gun cable torsion test machine is professional laboratory testing equipment specifically developed for new energy electric vehicle charging connector manufacturers, third-party testing laboratories, and auto parts quality inspection centers.

This EV cable torque torsion tester fully meets global mainstream EV charging certification standards. It is widely used for durability torsion torque aging tests of GB, EU, and US standard AC & DC charging gun cables, verifying cable accessory torsion bearing capacity under specified torque loads. The equipment effectively detects hidden risks such as wire breakage, cable cracking, and terminal loosening after long-term twisting.

Global Compliance Standards
  • GB/T 20234.1-2023 Electric vehicle conductive charging couplers - Part 1: General requirements, Clause 7.7
  • IEC 62196-1:2022 Plugs, socket-outlets, vehicle connectors and vehicle inlets - Conductive charging of electric vehicles - Part 1: General requirements
  • UL 2252-2022 Standard for Vehicle Charging Connectors, Clause 25.4
Working Principle & Core Advantages
Working Principle

The machine adopts Mitsubishi PLC closed-loop intelligent control system, matched with servo motor and precision reducer to drive torsion movement. Built-in high-speed dynamic torque sensor real-time collects torque data, automatically stopping when reaching preset torque values. The system continuously records torque change curves during the entire torsion test process, enabling fully automatic unattended testing.

Product Highlights
Integrated all-in-one cabinet, stable structure, low noise for long-hour lab continuous test
3-axis adjustable fixture, fits all sizes of AC/DC EV charging guns (GB/IEC/UL)
7-inch color touch screen, manual & program dual operation modes
0.1% high precision torque sensor, 1000Hz high-speed data acquisition
Overload & grounding double safety protection, avoid equipment & sample damage
Support customized constant torque holding time, arbitrary rotation angle setting
Single station compact design, save laboratory space, easy transportation & installation
Application Scenarios
  • New energy vehicle parts factory QC lab
  • Third-party certification testing laboratory
  • EV charger manufacturer R&D test room
  • Auto inspection institution
  • EV connector certification test center
Complete Technical Specifications
Test Item Torsion resistance test for EV charging gun cables
Compatible Specimens GB, IEC, UL AC & DC charging guns
Test Station Single station
Electrical Control System Mitsubishi integrated PLC, 7-inch color HMI touch panel
Operation Mode Manual mode / Programmed automatic mode
Driving Unit Servo motor + precision reduction gearbox
Specimen Clamping System Mechanical clamping structure; gun fixture adjustable on Y/Z axes, cable fixture adjustable on X axis; adjustable clamping positions to keep cables horizontal; dedicated charging gun fixtures included
Rotation Speed 1-360 °/s, configurable via touchscreen
Rotation Angle 0 to ±n×360°, origin point freely configurable via touchscreen
Dynamic Torque Sensor Measuring range: 0-30 N*m
Covers UL 2252 standard torque values: 0.41 N*m, 0.54 N*m, 0.68 N*m, 1.4 N*m, 2.7 N*m, 5.4 N*m, 10.8 N*m, 16.3 N*m, 22 N*m
Accuracy: 0.1% of reading
Sampling rate: 1000 Hz
Built-in data communication function
Constant Torque Holding Time 0-999.9 s, preset via touchscreen
Safety Protection Functions Earth protection, overload protection
