IEC 62368-1 Annex T.7 Horizontal Surface For Drop Test
IEC 62368-1 Annex T.7 Horizontal Surface For Drop Test
IEC 62368-1 Annex T.7 Horizontal Surface For Drop Test
IEC 62368-1 Annex T.7 Horizontal Surface For Drop Test
IEC 62368-1 Annex T.7 Horizontal Surface For Drop Test
IEC 62368-1 Annex T.7 Horizontal Surface For Drop Test
Specifications
Brand Name :
Sinuo
Model Number :
SN2210-76
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
60 PCS Per Month
Delivery Time :
10 Days
Packaging Details :
Standard Exporting Boxed
Applied standard :
IEC 62368-1
Applied clause :
Annex T.7
Material :
Hardwood
The height drop of 750mm :
Desk-top equipment and movable equipment
The height drop of 1000mm :
Hand-held, direct plug-in and transportable equipment
The height drop of 350mm :
A part acting as a fire enclosure
Description

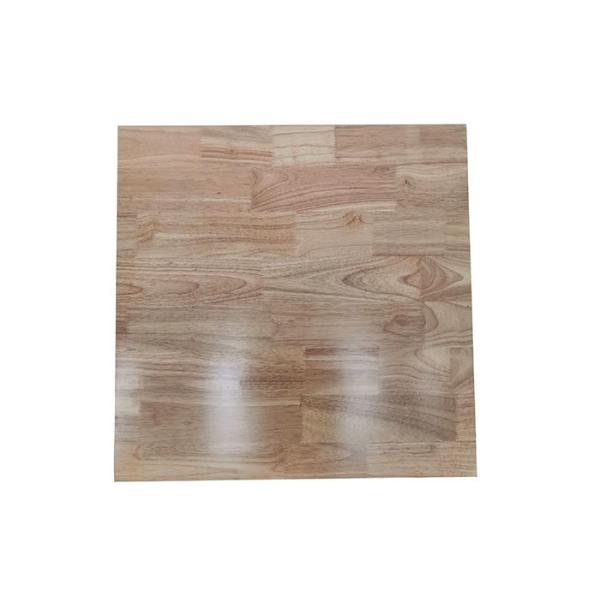

IEC 62368-1 Annex T.7 Horizontal Surface for Drop Test

Product information:

This horizontal surface is required by IEC 62368-1:2018 Annex T.7, IEC 60065-1:2014 clause 12.1.5, IEC 60950-1: 2013 Clause 4.2.6 and etc.

The horizontal surface consists of hardwood at least 13 mm thick, mounted on two layers of plywood each 19 mm to 20 mm thick, all supported on a concrete or equivalent non-resilient floor.

The height of the drop shall be:

- 750mm±10mm for desk-top equipment and movable equipment;

- 1000mm±10mm for hand-held equipment, direct plug-in equipment and transportable equipment;

- 350mm±10mm for a part acting as a fire enclosure only of desk-top equipment and movable equipment;

- 500mm±10mm for a part acting as fire enclosure only of hand-held equipment, direct plug-in equipment and transportable equipment.
