IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
Specifications
Current Voltage Accuracy :
Class 1; C: 0.1mA; V: 0.1V
Output Voltage :
AC 3 PH 10~415V
Power Consumption :
Maximum 1500W
Timing Accuracy :
5mS, resolution 1mS
Brand Name :
Sinuo
Model Number :
SN2502
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
5 Sets Per Month
Delivery Time :
1 Months
Packaging Details :
Plywood
Applied Standards :
IEC61009-1,IEC60898-1,IEC61008-1
Current Output Range :
AC：5~2000mA
Description
IEC 61009-1 Residual Current Protector Device Action Characteristic Tester
The IEC 61009-1 Residual Current Protector Device Action Characteristic Tester is designed for automatic verification of the operating characteristics of small leakage circuit breakers, ensuring the safety performance of circuit breakers. This instrument complies with IEC 61009-1:2012 and IEC 61008-1:2010 standards.
The instrument features an ARM-7 high-speed processor core, high-speed true effective value A/D converter, DSS sinusoidal signal generator, and power amplifier with mains tracking. It automatically outputs current and performs comprehensive testing including action current and action time measurements.
Key Features
  • 24-bit high-speed, high-precision true RMS AD conversion for accurate sampling of operating current and voltage
  • High-speed processor for precise action time sampling
  • Support for standard Modbus-RTU communication protocol
  • Quick selection of operating current for conventional products and separate setting for unconventional products
  • 32-bit embedded processor for high-speed processing of large communication data volumes
  • RS232/485 full-rate asynchronous serial communication interface with maximum baud rate of 115200bps
  • Isolation protection for input and output signals ensuring safe operation
  • Software and hardware watchdog WDT design for system stability
  • Configuration parameters stored in flash memory with permanent retention during power loss
  • Comprehensive anti-jamming design for harsh electromagnetic environments
Technical Specifications

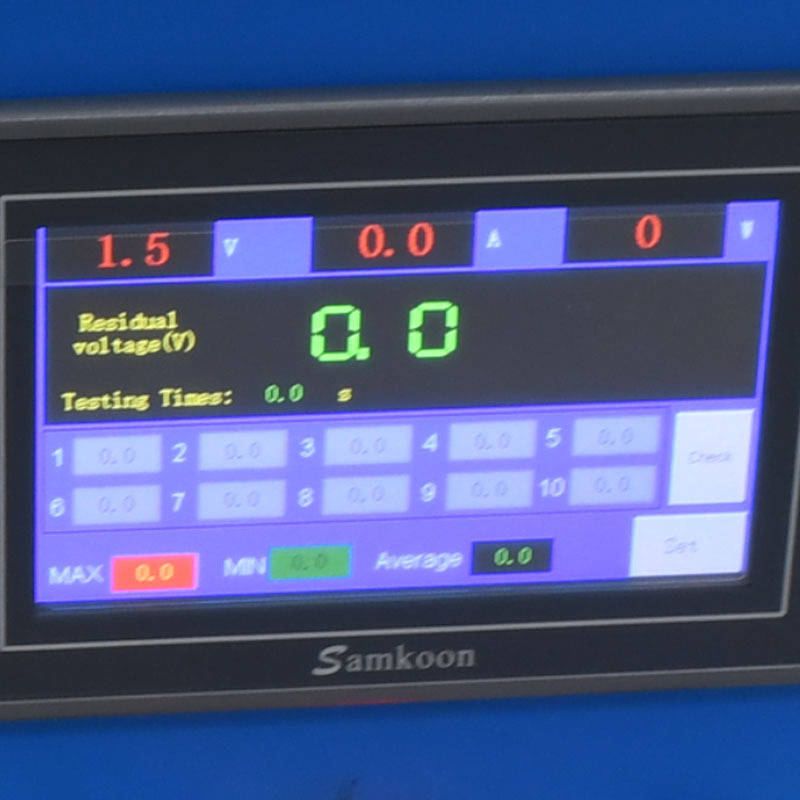

Electrical Control Method Man-machine touch interface operation
Detection Platform Equipped with three-phase leakage protection circuit breaker test interface with manual wiring and independent testing capability
Working Power Consumption Maximum 1500W
Current and Voltage Display Accuracy Class 1; current resolution 0.1mA; voltage resolution 0.1V
Current Output Range AC: 5~2000mA
Output Voltage AC 3 PH 10~415V
Timing Accuracy 5mS, resolution 1mS
Type A Phase Selection 0° (2000mA), 90° (2000mA), 135° (30mA)
Indicators Self-locking power switch with indicator light; running indicator light on equipment panel
Dimensions 430mm * 370mm * 280mm
Weight Approximately 50 KG
