Specifications
Brand Name :
Sinuo
Model Number :
SN2110 & SN2110-A
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Customized
Payment Terms :
T/T
Supply Ability :
20 Sets Per Month
Delivery Time :
10 days
Packaging Details :
Plywood
Standars :
IEC 60884-1
Clause :
10.5, figure 9 and 10
BF2110 :
Test probe with force of 20N
BF2110-A :
Test probe with force of 1N
Description

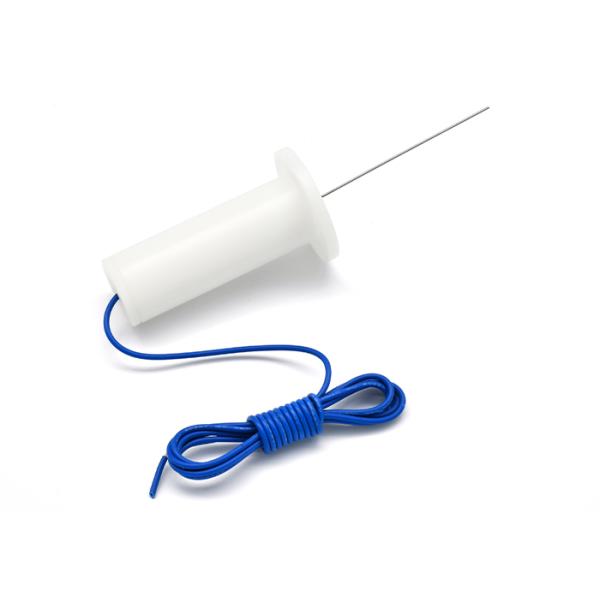

Gauge for Checking Non-accessibility of Live Parts, Through Shutter

Product information:

These two test probes separately confirm to the IEC 60884-1:2013 clause 10.5, figure 9 and figure 10. The SN2110 test probe with 20N force is used to test whether the live parts inside can be touched. The SN2110-A test probe with 1N force is for testing whether the live parts with the protection of socket can be touched.

Technical parameters:

1. Test probe with force of 20N SN2110:

The probe part: 3+0.03 0 ×1+0.015 0 ×80±0.5; end rounded: R0.2±0.05, with 20N force.

2. Test probe with force of 1N SN2110-A:

The probe part: Φ1+0.015 0 ×80±0.5; end rounded: R0.05, with 1N force.

Application method:

Touching the specimen with the end of the probe and then respectively exert the force of 20N or 1N until the probe is bulged and the A-A surface is abreast with the B-B surface.
