Specifications
Brand Name :
Sinuo
Model Number :
SN3317
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Tailored
Payment Terms :
T/T
Supply Ability :
1 Set Per Month
Delivery Time :
2 Months
Packaging Details :
Plywood
UUT :
Electric rice cookers
Test Benches :
2
Test Corners :
6
Control :
Computer
Frequency Power :
15kVA
Standard :
15kVA
Description

Energy Efficiency Testing System with 2 Test Benches 6 Black Corners for Electric Rice Cookers

Overview:

This testing laboratory provides test conditions for energy efficiency testing of rices cookers, meets following standard requirements:

GB 12021.6-2008 (2017) Minimum allowable values of energy efficiency and energy efficiency grades for electric rice cookers.

Heating efficiency calculation for electric rice cookers:

Electric Rice Cookers Energy Efficiency Lab 2 Test Benches 6 Black Corners

Where:

η Heating efficiency, accurate to one decimal place

1.16 Constant, dimensionless

λ Correction factor. For specimen which is heated by electromagnetic induction, λ value is 1.15, which is heated by the electric heating element, λ value is 1.0; which inner pot material is non-metal product, λ value is 1.13; which inner pot material is non-metal and is heated by electromagnetic induction, λ value of 1.15.

G The amount of water before the test, unit is KG

t2 Maximum water temperature after the test, unit is Celsius (℃), accurate to one decimal place

t1 Initial water temperature before the test, unit is Celsius (℃), accurate to one decimal place

E Power consumption, unit is watt hours (W.h), accurate to two decimal places

Standards:

Can be designed according to the following standards:

► GB 12021.6-2008 (2017)

► Other international standards

Types of UUT :

Electric Rice Cookers

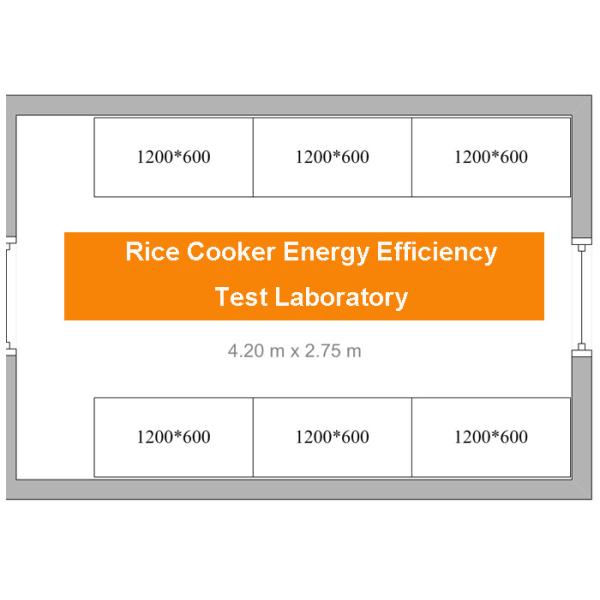

Test Room Size:

4.2M (Length) *2.75M(Width),The schematic layout is as follows:

Note: The air-conditioning environment in the room is realized by the existing air-conditioning of User, and the structure of the house is completed by User.

Electric Rice Cookers Energy Efficiency Lab 2 Test Benches 6 Black Corners

Configuration List:

No.: Name Specification QTY Unit
Test Stations
1 Test benches Plates, with drawers and cabinets (a set of 3 stations) 2 SET
2 Test corners 1M* 0.8M* 0.6M (H*L*W),20mm thickness plywood, surface coated with a matt black finish 6 PC
Electrical Testing
4 Thermocouple T type -20~150℃ Accuracy 0.1class 40 M
5 Isothermal terminal Omega 12 GROUP
6 Electrical parameter meter (single phase) WT310E 6 SET
7 Data collector Yokogawa GM10 (two channels per each station) 2 SET
8 Frequency Power 15kVA 1 SET
9 Power box and terminal box Stainless steel 6 SET
10 Electrical parts and wire conduit, etc. Air switch, contactor, relay, power supply switch, etc. 1 SET
11 Test software The latest version, matching hardware transformation, in line with the latest standards 1 SET
12 Computer Lenovo business machine 1 SET
13 UPS Santak 500VA 1 SET
14 Electronic scale (±0.1%), 5g resolution,20kg measuring range 2 SET
