Specifications
Brand Name :
Sinuo
Model Number :
SNQC1007
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Operation Method :
PLC control
Drive Mode :
Motor and cylinder
Pull Force Weights :
One set
Torque Weights :
One set
Pull Frequency :
1 cycle/s
Torque Arm :
R100mm
Torque Time :
0-99H59M59S
Pull Cycles :
1-9999 cycles
Description

IEC60309-1 Cable Anchorage Pull Force And Torque Test Apparatus Test EV Charging Interface

Product Information​:

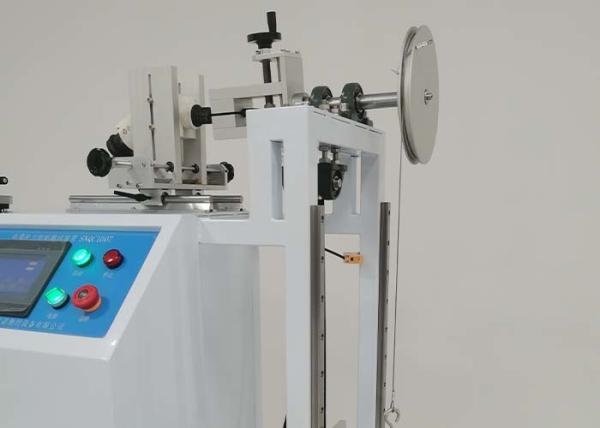

This pull force and torque test equipment is used to test the vehicle plugs, and socket-outlets, connectors to withstand the specified pull force and torque.

It is designed and manufactured according to IEC62196-1: 2020 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc.

Samples and restrictions: electric vehicle charging interfaces, electric vehicle power equipment, industrial plugs and sockets and couplers.
Test purpose: used to test the ability of charging vehicle plug and socket connection cable accessories to withstand specified pulling force and torque.
Test principle: The pulling force is realized by using a single-phase speed-regulating motor to drive the eccentric mechanism. The motor speed is adjustable to ensure that the time of each pulling force is accurate. Torque is achieved using cylinders, pallets, weights and time relays.
Structure and features: Weights are used to apply tension, and the weights and torque arms achieve torque. Preset number counter and digital display time relay are used to control the number of times of pulling force and torque test time. The equipment will automatically stop when the number of tests or test time is reached. After the test, the maximum allowable displacement of the flexible cable of the charging gun connector shall not exceed the standard requirements.

Technical Parameters For Vehicle Plugs An​d Connectors Cable Anchorage Pull Force And Torque Test Apparatus​:

Operation Method PLC control
Drive Mode Motor and cylinder
Tension schematic diagram IEC60309-1 Cable Anchorage Pull Force And Torque Test Apparatus Test EV Charging Interface
Pull Force Weights

50N, 60N, 110N, 1 each, 40N, 2 pcs, 100N, 3 pcs, can test 160N, 200N, 240N, 250N, 500N, 600N

IEC60309-1 Cable Anchorage Pull Force And Torque Test Apparatus Test EV Charging Interface
Torque Weights

0.1 N.m, 0.15 N.m, 0.20 N.m,, 0.25 N.m, 0.3 N.m, 0.35 N.m, 0.4 N.m, 0.425 N.m, 0.6 N.m, 0.7 N.m, 1.2 N.m, 1.5 N.m, 2.3 N.m, 11.0 N.m
In addition, it complies with UL2594 Table 25: 0.41 N.m, 0.54 N.m, 0.68 N.m, 1.4 N.m, 2.7 N.m, 5.4 N.m, 10.8 N.m, 16.3 N.m, 22 N.m

IEC60309-1 Cable Anchorage Pull Force And Torque Test Apparatus Test EV Charging Interface
Torque Arm R100mm(Ф200mm)
Pull Frequency 1cycle/s
Pull Cycles 1-9999 cycles, can be preset, default 100 cycles
Torque Applied Time 0-99H59M59S, can be preset, default 1min
Fixture One set of universal fixtures
Equipment Dimensions & Weight W1600*D500*H1135mm, the whole machine is about 100Kg
Power Supply Single phase AC220V±10%, 60Hz, 1KW

IEC60309-1 Cable Anchorage Pull Force And Torque Test Apparatus Test EV Charging Interface

IEC60309-1 Cable Anchorage Pull Force And Torque Test Apparatus Test EV Charging Interface

IEC60309-1 Cable Anchorage Pull Force And Torque Test Apparatus Test EV Charging Interface
