IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
IEC62196-1 EV Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus
Specifications
Brand Name :
Sinuo
Model Number :
SNQC1007
Certification :
Calibration Certificate (Cost Additional)
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5 Sets Per Month
Delivery Time :
30 Days
Packaging Details :
Plywood Case
Operation Method :
Button operation
Drive Mode :
Motor and cylinder
Torque Arm :
R100mm
Pull Frequency :
1 cycle/s
Pull Cycles :
1-9999 cycles
Torque Time :
0-99H59M59S
Pull Force Weights :
One set
Torque Weights :
One set
Description

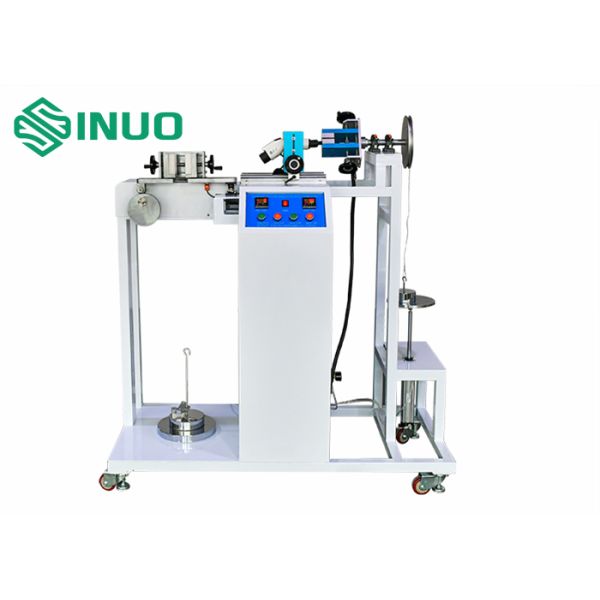

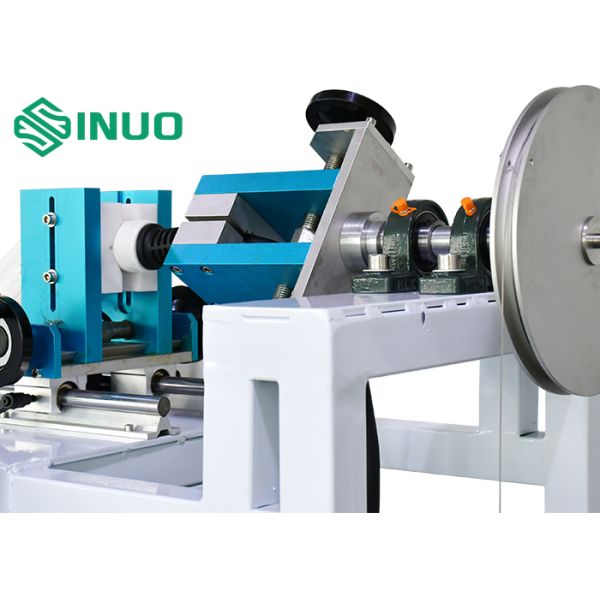

IEC 62196-1 Vehicle Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus​

Product Information For Vehicle Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus​:

This pull force and torque test equipment is used to test the vehicle plugs, and socket-outlets, connectors to withstand the specified pull force and torque.

It is designed and manufactured according to IEC62196-1: 2020 clause 25.3 Figure 17 and table 11, IEC60309-1: 2012 clause 23.3, etc.

Principle For Vehicle Plugs And Connectors Cable Anchorage Pull Force And Torque Test Apparatus​:

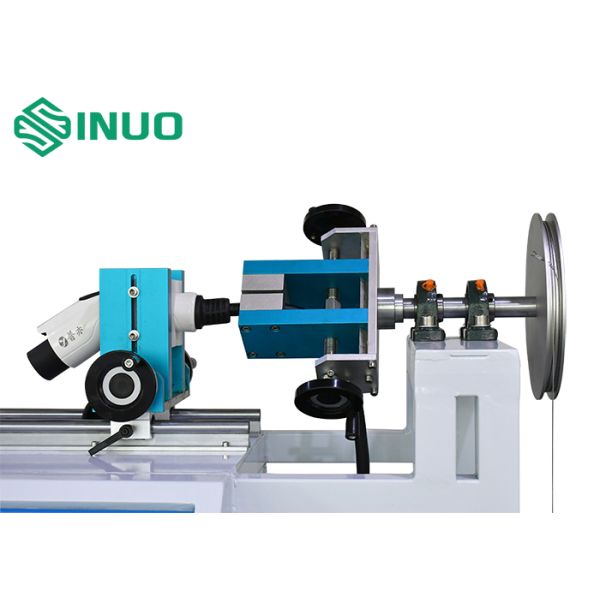

Pull is realized by single-phase speed-regulating motor to drive the eccentric mechanism, the motor speed is adjustable, to ensure the accurate time for each pull force applied; torque is achieved by releasing the torque weight by air cylinder.

Technical Parameters For Vehicle Plugs An​d Connectors Cable Anchorage Pull Force And Torque Test Apparatus​:

Operation Method Button operation
Drive Mode Motor and cylinder
Pull Force Weights

One set of pull force weights

Can achieve 160N, 200N, 240N, 250N,500N, 600N
Torque Weights

One set of torque weights

Can achieve 0.6N.m, 0.7N.m, 1.2N.m, 1.5N.m, 2.3N.m, 11N.m
Torque Arm R100mm(Ф200mm)
Pull Frequency 1cycle/s
Pull Cycles 1-9999 cycles, can be preset, default 100 cycles
Torque Applied Time 0-99H59M59S, can be preset, default 1min
Fixture One set of universal fixtures
Equipment Dimensions & Weight W1300*D800*H1300mm, the whole machine is about 150Kg
Power Supply Single phase AC220V±10%, 60Hz, 10A
