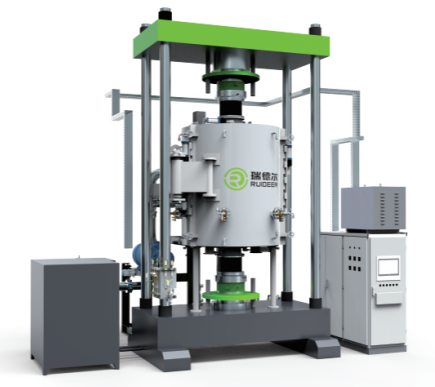

Vacuum Hot Press Sintering Furnace Providing Horizontal Vertical Configurations and Adjustable Maximum Temperatures up to 2400 Celsius
Vacuum Hot Press Sintering Furnace Providing Horizontal Vertical Configurations and Adjustable Maximum Temperatures up to 2400 Celsius
Specifications
Brand Name :
Ruideer
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
3 Sets / Month
Delivery Time :
4-5 Months
Packaging Details :
Wooden Case
Type :
Vacuum Furnace
Ram Material :
Graphite or TZM
Vacuum Pump :
Pre-Stage Pump+Roots Pump+Diffusion Pump
Product Name :
Vacuum Hot Press Sintering Furnace
Control System :
PLC
Max. Working Temperature :
2200℃
Description
100T Vacuum Hot Press Sintering Furnace, Standard Effective Working Area 500*500*600mm

The equipment features a double-wall water-cooling structure with horizontal or vertical configurations. Available in various sizes for laboratory and industrial production applications, it supports single or dual pressure head configurations with dual force/displacement control modes.
Maximum temperatures can be adjusted to multiple levels including 1400°C, 1600°C, 2000°C, 2200°C, and 2400°C. The hot pressing sintering furnace is widely used for processing ceramic materials such as silicon carbide, boron carbide ceramics, and metal powders.


Features:

  • Product Name:Vacuum Hot Press Sintering Furnace
  • Max Temperature : 2200℃
  • Vacuum Pump:Pre-Stage Pump+Roots Pump+Diffusion Pump
  • Type: Vacuum Furnace
  • Ram Material:Graphite or TZM
  • Vacuum Sintering Furnace
  • High-Pressure Sintering Furnace
  • High-Temperature Sintering Furnace


The Main Parameters Of The Equipment:


Loading Standard Effeective Space Dimension 500*500*600mm
Vacuum Capability Cold State Limit Vacuum <6.67x10- Pa (under conditions of empty furnace, cold state, clean environment, and post-firing)
Pressure Rise Rate <2 Pa/h (average value at 3 hours after furnace shutdown, cold state, clean condition, and furnace drying)
Work Efficiency Atmospheric pumping to 1 Pa for <40 minutes (cold state, under no-load conditions)
Temperature Indicator Maximum Operating Temperature 2200°C (temperature measured jointly by thermocouple and linfrared thermometer)
Heating Rate Emptyfumace:RT~1500C:>8°C/min; 1500-2200°C:≥7°C/min.
Insulation/Heating Element Material Soft-hard composite felt/high-purity isostatic graphite
Cooling Speed Empty furnace,2200C to 150Cwithin 430 minutes, with fast cooling below 8oo'C. (Coolingwater conditions: water pressure 2 bar, water temperature26°C in summer, flow rate 30-35 m²/h).
Press System Maxiumum Mechanical Pressure 100T
Pressure Control Accuracy 0.1MPa
Navar Temperature Control PID intelligent program control and manual control; 30-stage programmable temperature control.


Applications:

  • Ruideer Vacuum Hot Press Sintering Furnace is widely used for processing ceramic materials such as silicon carbide, boron carbide ceramics, and metal powders.
  • The packaging is also highly secure, with wooden cases ensuring safe delivery and an estimated delivery time of 4-5 months.


Support And Services:


Convenience And Intelligence

  • The sintering furnace control interface can be monitored via mobile phone, enabling real-time monitoring and understanding of equipment operation status anytime, anywhere.
  • The fully automated one-click operation function supports single-operator supervision of multiple devices and intelligent production, with compatibility for ERP management systems.

Comprehensive After-sales Service System

  • Features a 24/7 hotline. Within 2 hours of receiving a customers fault report, we provide solutions, with on-site repairs arriving within 12 hours for urgent cases.
  • Our team of 32 experienced professionals handles not only product installation and commissioning but also offers after-sales services and maintenance for sintering furnaces from domestic and international manufacturers.
