Sintered Mesh Filter With Extremely High Mechanical Strength And Stability

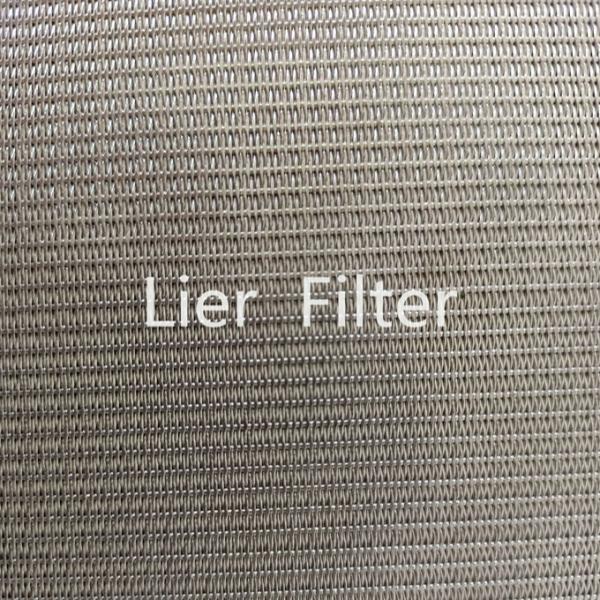

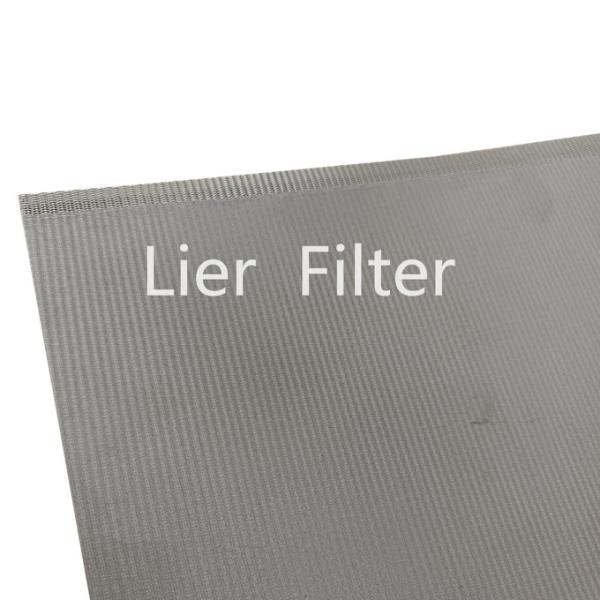

Sintered Mesh Filter Standard five-layer sintered mesh
Usually standard sintered mesh consists five layers, the protective layer, the filter layer, the dispersion layer, and two reinforcing meshes. It provides excellent persormances such as high precision and strength, so it is ideal filter medium for applications requiring high strength and precision.
Thanks to its surface filtration construction, and smooth wire of the mesh, it is good at backwashing and regeneration.
Therefore, it can be reused for a long time, and is especially suitable for continuous and automatic operation, which exceeds any other kind of filter material.
Furthermore, this mehs is easy to be formed, machined and welded. It can be produced into many kinds of shapes such as circular, cartridge, cone and pleats.



Sintered Mesh Filter Features
1. High strength:extreme mechanical strength and pressure tolerance, can be machined, welded and assembled.
2. High precision: consisant filter property in media grades, without apertures changing during operation.
3. Heat resistant: can be continuously used in temperature ranging from -200℃ to 600℃ and filtering in acid and alkali conditions.
4. Cleanable: backwash and clean easily, can be reused with longer service span, and can be cleaned by means of ways, such as backstream,

filtration liquid,ultrasonic, dissolution and baking.
Standard size:1200*1000mm
Standard thickness:1.7mm
Standard material: 316L.Stainless stell like can be used either.

parameter of Sintered Mesh Filter

Sintered Mesh Filter Specification

transportation

Package for
1. Standard export wooden case `
2. Steel pallet waterproof cloth package
3. Other package to meet your requirements

Package for

Export wooden case packing

Bare package with steel pallet

Other export package

FAQ

Q: What parameters need to provide for the design of the filter element?
A: Length, width, height, material, diameter, precision, connection method, etc. If there are other necessary parameters, please explain together.

Q: Are you trading company or manufacturer

A: We have our own factory and production line. Everything is very flexible, no need to worry about additional costs. At the same time, quality can also be guaranteed.
Q: How many years of production and export experience do you have?
A: We have more than 20 years of production experience and 15 years of export experience. Our products have been used all over the world and have a good reputation, please rest assured to use
