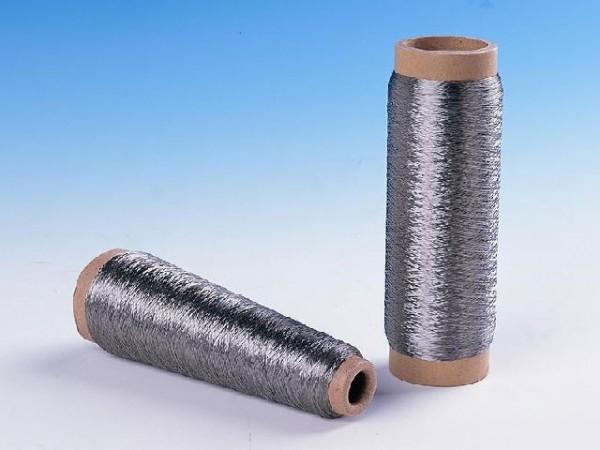

12um Stainless Steel Conductive Fiber , 0.78g/M Ultrafine Composite Wire
12um Stainless Steel Conductive Fiber , 0.78g/M Ultrafine Composite Wire
Specifications
Brand Name :
huitong
Model Number :
12um
Certification :
ROHS
Place of Origin :
Yiyang,China
MOQ :
10kg
Payment Terms :
L/C, T/T
Supply Ability :
10tons per months
Delivery Time :
depends on quantity
Packaging Details :
paper carton
Price :
Negotiable
Diameter :
12um
Type :
12um*275f*3
filament :
275f
weight :
0.78g/m
break force :
125N
resistace :
9
Description

Ultrafine Metal Fiber Composite Wire-- Applicated In Textileintelligent heating fields

Product:

Product description
【Description】
The ultra-fine metal fiber composite wire is made of a single or multi-strand microfiber wire twisted to form a flexible wire.
Features:
* Good electrical conductivity
* High strength, high elastic modulus
* Abrasion resistance, corrosion resistance
* Excellent thermal stability in an oxidizing atmosphere
* High durability, easy to process, easy to woven into textiles
* Wide range of resistance, customized heating resistance
The intelligent heating element made of ultra-fine metal fiber composite wire produced by our company has the advantages of softness, folding resistance, uniform heat generation and long service life.
【Application】
Intelligent heating clothing (heating gloves, heating belts, heating insoles, heating socks, heating vests, jackets, sleeping bags, etc.), heating pads, car seat heating, car steering wheel
【Parameters】

Type

Weight/Meter(g)

Break force(N)

Elongation(%)

Average Electricity Resistance()

14m×90×1

0.12

25

1.10%

61

12m×90×2

0.17

44

1.10%

42

12m×100×1

0.095

24

1.10%

59

12m×100×2

0.19

41

1.10%

38

12m×100×3

0.28

69

1.10%

22

12m×275×1

0.26

59

1.10%

27

12m×275×2

0.54

75

1.10%

14

12m×275×3

0.78

125

1.10%

9

12m×275×4

1.05

130

1.10%

7

12m×275×5

1.3

160

1.10%

5

12m×275×6

1.5

180

1.10%

4

8m×1000×1

0.42

69

1.10%

16

8m×1000×2

0.85

108

1.10%

8

12m×1000×1

0.95

100

1.10%

7

12m×1000×2

1.9

340

1.10%

4
【Other Application】
The ultrafine metal fiber composite wire has excellent electrical conductivity, high strength, high elastic modulus, abrasion resistance, corrosion resistance and excellent thermal stability in an oxidizing atmosphere, and can be widely applied to an antistatic brush and high temperature sewing thread, radio frequency identification, etc.
Corresponding parameter set not found, please add it in property template of background
,
,
