Specifications
Brand Name :
Nuotian
Model Number :
NTI-SML-12/W
Certification :
CE
Place of Origin :
Hunan, China
MOQ :
1 Set
Price :
$60000-100000
Payment Terms :
,T/T
Supply Ability :
20 Sets/ Month
Delivery Time :
90 Days
Packaging Details :
Standard packing by sea
type :
Induction Furnace
Power supply control type :
IGBT control
usage :
Heat Treatment Furnace
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC
voltage :
380V
dimension(l*w*h) :
Customization
weight (t) :
2
warranty :
1 Year
key selling points :
Accurate Temperature Control
After-sales Service Provided :
Engineers available to service machinery overseas
Model no. :
NTI-SML-576W
Maximum temperature :
2800℃
Power :
250KW
Input voltage :
380V
Working area :
400x400x800mm
Working environment :
Vacuum or Argon atmosphere protection( micro positive pressure)
Furnace type :
Horizontal
Description

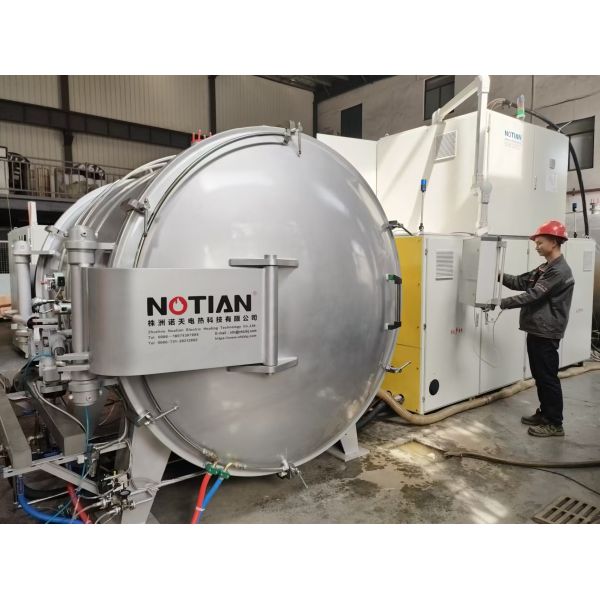

2800℃ Vacuum Induction Graphitization Furnace for Negative Electrode Material

Description:

  • Power System: The 2800℃ vacuum induction graphitization furnace uses IGBT power control, which has the advantages of stable operation, low noise and long service life. It can provide continuous and stable power support for high-temperature graphitization processing.
  • Sealing & Atmosphere: The furnace body adopts high-quality sealing components, which has excellent air tightness. It can realize vacuum environment and argon/nitrogen protective atmosphere (micro positive pressure) to ensure the quality of material processing.
  • Material Adaptability: Specially designed for the graphitization of high-performance materials, such as carbon fiber, carbon materials, carbon nano materials, negative electrode materials, graphite powder, rare earth, rhenium materials, pet coke, green coke, radiation-proof materials and contacting terminal materials.
  • Operational Safety: Equipped with complete safety protection devices, including over-temperature alarm, vacuum leakage detection, power failure protection, etc. It ensures the safety of the operation process. The user-friendly interface makes the operation simple and easy to master.

2800℃ Vacuum Induction Graphitization Furnace for Negative Electrode Material

Application:

This 2800℃ Vacuum Induction Graphitization Furnace is widely applicable in multiple high-temperature material processing scenarios:
  • Carbon fiber processing: Carbonization and graphitization treatment of carbon fiber precursors to enhance their thermal stability and mechanical strength.
  • Battery material production: High-temperature treatment of battery negative materials (e.g., graphite negative electrodes) to optimize their electrochemical performance.
  • Advanced material manufacturing: Graphitization of graphite powder and graphene.
  • Protective atmosphere processing: Finishing graphitization of products under Argon protective atmosphere to meet the requirements of carbon material internal molecular structure modification and performance.

2800℃ Vacuum Induction Graphitization Furnace for Negative Electrode Material

Specification:


Graphitization Furnace -- Technology Parameter

Lab usage

Production usage

NTI-SML-54W

NTI-SML-98W

NTI-SML-128W

NTI-SML-400W

NTI-SML-576W

Working size

mm

300×300×600

350×350×800

400×400×800

500×500×1600

600×600×1600

Heating type

/

IF induction heating

Control type

/

SCR control or IGBT control(optional)

HT zone capacity

L

54

98

128

400

576

Loading weight

g

HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³

IF power

Kw

150

200

250

350

500

Ultimate vacuum

Pa

20

Max. temperature

℃

3000

3000

3000

2900

2900

working

temperature

℃

2800

2800

2800

2800

2800

Temperature

uniformity

℃

±10

±10

±10

±10

±15

Working

environment

/

Vacuum or Ar. Nitrogen atmosphere protection(micro positive pressure)


Feature Advantages:

  • Extreme High-Temperature Capability: Reaches up to 2800℃, ideal for processing carbon fiber, graphite, etc.
  • Precision Temperature Control: ±1℃ control accuracy and ≤±10℃ furnace uniformity.
  • Flexible Operation: Switch between automatic process control and manual mode to fit different production processes.
  • Clean Processing Environment: High vacuum and protective atmosphere support.
  • Scalable Models: 5 options (from 54L to 576L) → suits lab tests and large-scale industrial production.

Furnace Configuration:

  • Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.

Key standard & optional components:

  • Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
  • Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
  • Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
  • Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2400℃).
  • Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.

    2800℃ Vacuum Induction Graphitization Furnace for Negative Electrode Material

After-sales Service:

We provide comprehensive after-sales support to ensure your equipment operates smoothly:
  • Warranty: 1-year warranty for core electrical components against manufacturing defects.
  • Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
  • Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
