Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing
Specifications
Brand Name :
Nuotian
Model Number :
NTI-SML-128W
Certification :
CE
Place of Origin :
Hunan, China
MOQ :
1 Set
Price :
$60000-100000
Payment Terms :
,T/T
Supply Ability :
20 Sets/ Month
Delivery Time :
90 Days
Packaging Details :
Standard packing by sea
type :
Induction Furnace
Power supply control type :
IGBT control
usage :
Heat Treatment
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
PLC
voltage :
380V 3 phase
dimension(l*w*h) :
Customization
weight (t) :
1.5
warranty :
1 Year
key selling points :
Accurate Temperature Control
After-sales Service Provided :
Engineers available to service machinery overseas
Model no. :
NTI-SML-128W
Maximum temperature :
2800℃
Power :
250KW
Usage :
Graphitization Purification
Working area :
400x400x800mm
Working environment :
Vacuum or Argon atmosphere protection( micro positive pressure)
Furnace type :
Horizontal
Description

Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing

Description:

  • Core Power System: Adopting IGBT power control technology, this 2800℃ vacuum induction graphitization furnace has the advantages of high power density, stable output and low energy loss, ensuring the reliability of high-temperature graphitization processing.
  • Vacuum Environment Guarantee: The furnace body has excellent vacuum performance, which can effectively remove air and impurities. It can also be filled with argon or nitrogen (micro positive pressure) to form a protective atmosphere, ensuring the purity of the graphitized products.
  • Processable Materials: Covers a variety of key materials, including carbon fiber, negative electrode materials, carbon nano materials, graphite powder, rare earth, rhenium materials, pet coke, green coke, radiation-proof materials and contacting terminal materials.
  • Operational Convenience: Equipped with an intelligent control system and a user-friendly operation interface, which can realize automatic control of the entire process. The built-in safety protection mechanisms ensure the safety of operation. It is suitable for both professional and non-professional operators.

Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing

Application:

This 2800℃ Vacuum Induction Graphitization Furnace is widely applicable in multiple high-temperature material processing scenarios:
  • Carbon fiber processing: Carbonization and graphitization treatment of carbon fiber precursors to enhance their thermal stability and mechanical strength.
  • Battery material production: High-temperature treatment of battery negative materials (e.g., graphite negative electrodes) to optimize their electrochemical performance.
  • Advanced material manufacturing: Graphitization of graphite powder and graphene.
  • Protective atmosphere processing: Finishing graphitization of products under Argon protective atmosphere to meet the requirements of carbon material internal molecular structure modification and performance.

Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing

Specification:


Graphitization Furnace -- Technology Parameter

Lab usage

Production usage

NTI-SML-54W

NTI-SML-98W

NTI-SML-128W

NTI-SML-400W

NTI-SML-576W

Working size

mm

300×300×600

350×350×800

400×400×800

500×500×1600

600×600×1600

Heating type

/

IF induction heating

Control type

/

SCR control or IGBT control(optional)

HT zone capacity

L

54

98

128

400

576

Loading weight

g

HT zone capacity×density (g/cm³)×1000 Remark:1L=1000cm³

IF power

Kw

150

200

250

350

500

Ultimate vacuum

Pa

20

Max. temperature

℃

3000

3000

3000

2900

2900

working

temperature

℃

2800

2800

2800

2800

2800

Temperature

uniformity

℃

±10

±10

±10

±10

±15

Working

environment

/

Vacuum or Ar. Nitrogen atmosphere protection(micro positive pressure)


Feature Advantages:

  • Extreme High-Temperature Capability: Reaches up to 2800℃, ideal for processing carbon fiber, graphite, etc.
  • Precision Temperature Control: ±1℃ control accuracy and ≤±10℃ furnace uniformity.
  • Flexible Operation: Switch between automatic process control and manual mode to fit different production processes.
  • Clean Processing Environment: High vacuum and protective atmosphere support.
  • Scalable Models: 5 options (from 54L to 576L) → suits lab tests and large-scale industrial production.

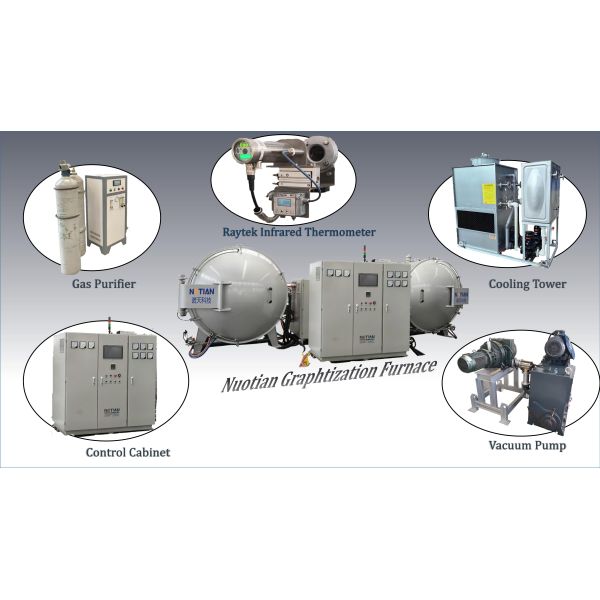

Furnace Configuration:

  • Control System: Optional 1-to-1 (one control cabinet for one furnace) or 1-to-2 (one control cabinet for two furnaces) control modes, equipped with Delta PLC for stable, intelligent operation.

Key standard & optional components:

  • Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
  • Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
  • Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
  • Temperature Measurement: Equipped with Raytek (US) infrared thermometer for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2400℃).
  • Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.

    Vacuum Induction Graphitization Furnace 2800℃ for Rare Earth Processing

After-sales Service:

We provide comprehensive after-sales support to ensure your equipment operates smoothly:
  • Warranty: 1-year warranty for core electrical components against manufacturing defects.
  • Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
  • Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).
