Specifications
Supply Ability :
20 Sets/ Month
type :
Resistance Furnace
Brand Name :
Nuotian
weight (t) :
2
After-sales Service Provided :
Engineers available to service machinery overseas
Maximum temperature :
2300 degree celsius
Model Number :
NTI-RYL-500T
dimension(l*w*h) :
Customization
Model no. :
NTI-RYL-500T
MOQ :
1 Set
Delivery Time :
90 Days
voltage :
380V
Working area :
Ø620xH500mm
Payment Terms :
T/T
Power control :
SCR
core components :
PLC
Price :
$80000-100000
video outgoing-inspection :
Provided
machinery test report :
Provided
Input voltage :
380v
warranty :
1 Year
Application :
Sic powder hot press sintering
Certification :
CE
Working atmosphere :
vacuum or inert gas atmosphere
Product Name :
Advanced Ceramic Hot Press Sintering Powder 2200°C Vacuum Treatment Furnace
Place of Origin :
Hunan, China
key selling points :
Accurate Temperature Control
Packaging Details :
Standard Packing by Sea
Description

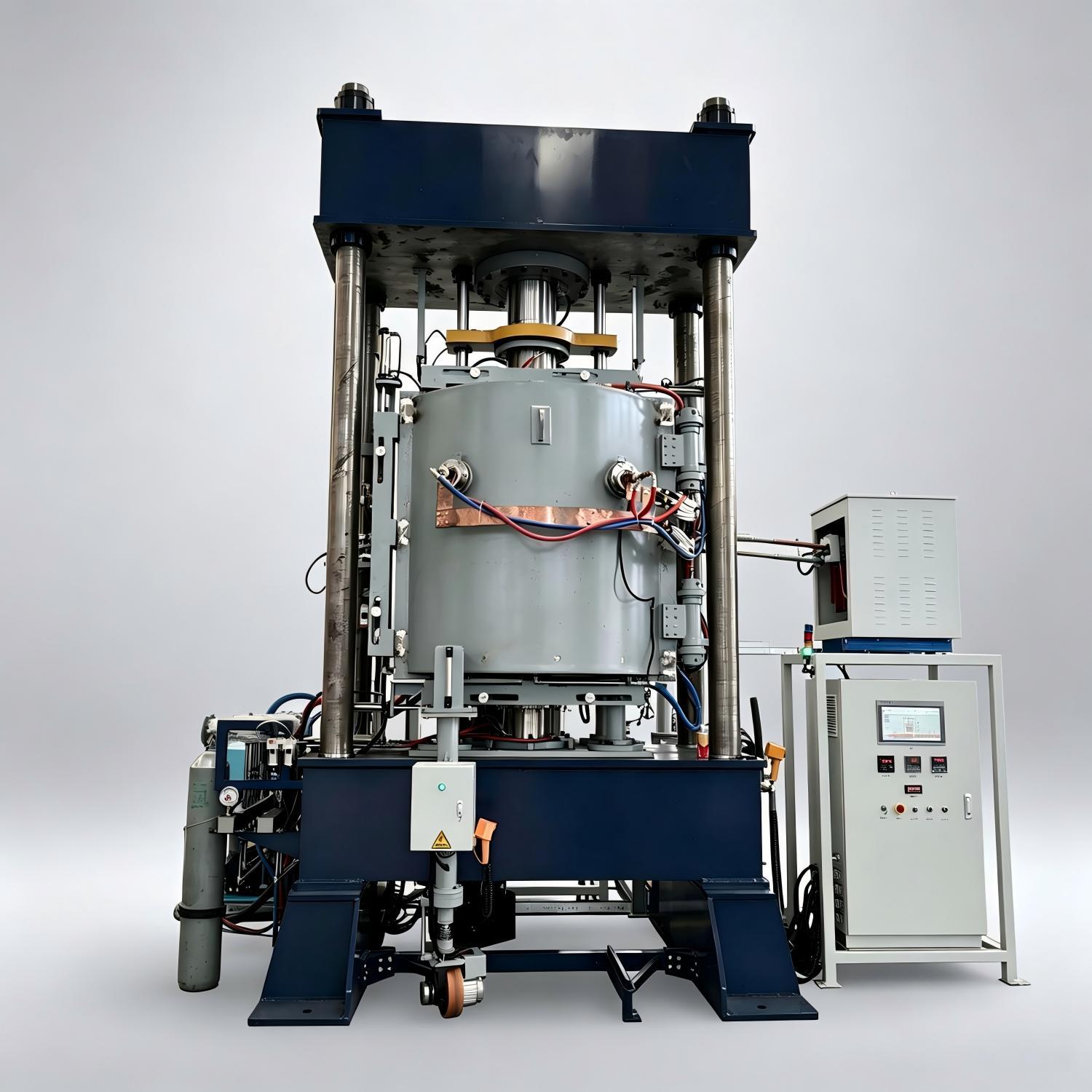

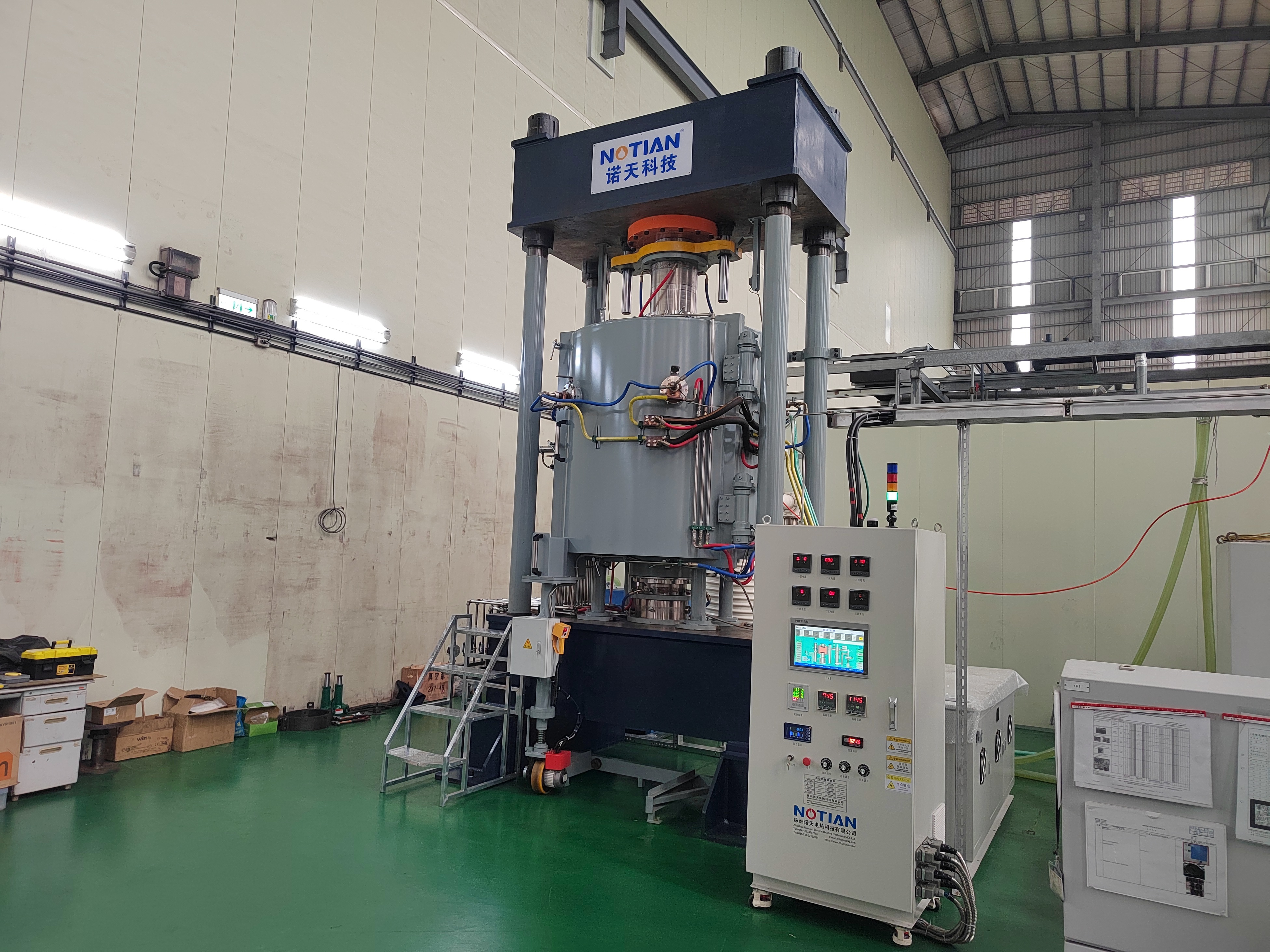

PLC Controlled Inert Gas Protection Hot Press Furnace for Diamond Copper Composite Sintering

Description:

  • This vacuum hot‑press furnace adopts batch‑mode resistance heating design, tailored for densification sintering of diamond‑copper composite materials.
  • Supported by inert gas shielding and high‑seal vacuum chamber, it delivers stable high‑temperature working conditions, minimizing oxidation risk for composite samples and securing consistent processing quality.
  • Built with heavy‑duty mechanical structure, the unit is fitted with intelligent PLC temperature control module. It supports flexible adjustment over heating rate, holding time and cooling curve, realizing uniform heating across workpieces and reducing local temperature deviation during hot pressing procedure.
  • Multiple chamber dimension options are available, covering lab small‑batch trials as well as pilot‑scale production. Apart from diamond‑copper composites, it can also serve various powder metallurgy and ceramic composite sintering tasks for different R&D and manufacturing demands.
  • Equipped with intuitive human‑machine operation panel, the furnace integrates comprehensive safety mechanisms including over‑temperature warning and vacuum leakage monitoring. It can be well deployed in material research laboratories and industrial production workshops.

PLC Controlled Inert Gas Protection Hot Press Furnace for Diamond Copper

Application:

  • Ceramic Materials: Boron carbide powder, silicon carbide powder, alumina powder, silicon nitride powder, and other advanced ceramic components.
  • Hard Alloys & Metals: Processing of tungsten carbide powder, carbide alloys powder, metal billets, and powder metallurgy products (e.g., neodymium magnets, NdFe14B).



    PLC Controlled Inert Gas Protection Hot Press Furnace for Diamond Copper


Specification:

Hot Press Furnace -- Technology Parameter

Production usage

NTI-RYL-20T

NTI-RYL-50T

NTI-RYL-100T

NTI-RYL-200T

NTI-RYL-400T

NTI-RYL-600T

NTI-RYL-800T

Working size

mm

ф160x160

ф200x300

ф300x400

ф400x500

ф500x600

ф600x700

ф700x800

Heating type

Graphite resistance

Control type

/

SCR control

Pressure rise rate

Pa/h

3

5

6

6

6

6

6

IF power

Kw

40

75

150

250

400

550

700

Ultimate vacuum

Pa

6*10-3

Max.working

temperature

℃

2300

2300

2300

2300

2300

2300

2300

Pressure

Ton

20

50

100

200

400

600

800

Displacemenet

mm

0-100

0-150

0-250

0-350

0-450

0-550

0-650

Working environment

/

Vacuum or Ar, Nitrogen atmosphere protection(micro positive pressure)


Furnace Configuration:


  • Control System: Optional 1-to-1 (one control cabinet for one furnace) control modes, equipped with Delta PLC for stable, intelligent operation.

Key standard & optional components:

  • Vacuum System: Integrated high-performance vacuum unit (including vacuum pump, valve group) to maintain stable vacuum environment during sintering.
  • Gas Purifier: High-efficiency gas purification equipment (optional) to filter impurities and ensure clean gas supply for atmosphere-controlled processes.
  • Cooling Tower: Optional cooling equipment to achieve efficient heat dissipation, ensuring stable operation of high-temperature components.
  • Temperature Measurement: Equipped with Tungsten-rhenium thermocouple for real-time, accurate high-temperature monitoring (supports precise temperature control up to 2300℃).
  • Air Compressor: Optional auxiliary equipment to provide stable air supply for pneumatic components.

Feature Advantages:


  • High-Temperature Capability: Reaches up to 2300℃.
  • Vacuum & Resistance Heating: Vacuum environment prevents material oxidation.
  • Precise Control: Equipped with FP93 Japanese Shimaden High-Precise Temperature Control System, ensuring stable sintering processes and consistent product quality.
  • Versatility: Compatible with a wide range of materials (carbon,ceramics, alloys, c/c,special powders), meeting diverse production needs.
  • Safety & Reliability: Equipped with short circuit, over pressure, over-temperature, over current, water shortage, and other protection mechanisms for safe operation.

    PLC Controlled Inert Gas Protection Hot Press Furnace for Diamond Copper

After-sales Service:

We provide comprehensive after-sales support to ensure your equipment operates smoothly:
  • Warranty: 1-year warranty for core electrical components against manufacturing defects.
  • Lifetime Service: Lifetime technical support, including remote troubleshooting, maintenance guidance, and replacement part supply (charged for non-warranty parts).
  • Response Efficiency: 24-hour online consultation for urgent issues; on-site service (available globally) can be arranged based on your needs (travel costs extra).

PLC Controlled Inert Gas Protection Hot Press Furnace for Diamond Copper
