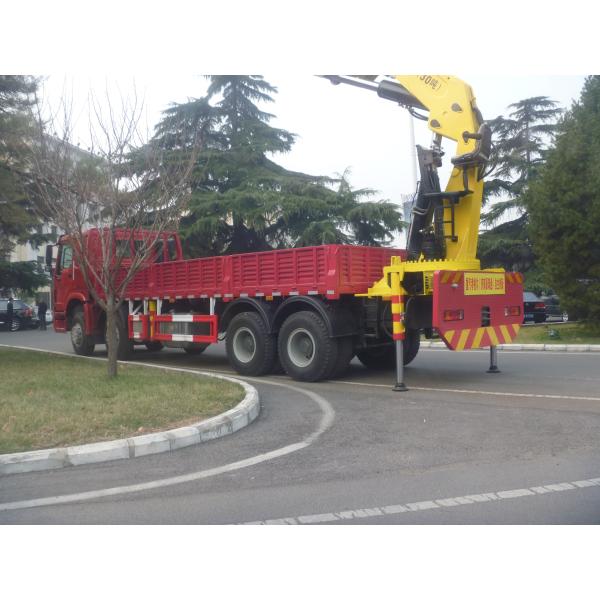

10 Tons Truck Mounted Crane XCMG Construction Machinery
10 Tons Truck Mounted Crane XCMG Construction Machinery
10 Tons Truck Mounted Crane XCMG Construction Machinery
10 Tons Truck Mounted Crane XCMG Construction Machinery
10 Tons Truck Mounted Crane XCMG Construction Machinery
10 Tons Truck Mounted Crane XCMG Construction Machinery
Specifications
Brand Name :
XCMG
Model Number :
SQ10SK3Q
Certification :
SGS/ISO/VGA
Place of Origin :
China
MOQ :
1unit
Price :
US$55000-70000/unit
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20units/month
Delivery Time :
40 working days after deposit or LC
Packaging Details :
Nude/Waxed
Crane Brand :
XCMG
Chassis Brand :
SINOTRUK
Type :
truck mounted crane
Arm :
Foldable type, 4 sections
Max. Loading :
10tons
Engine :
Euro II, 336/371hp
Engine Brand :
SINOTRUK/Weichai
Cargo Box :
8000*2300*800mm
Description

XCMG 10 tons Truck Mounted Crane with Foldable Arm, XCMG, crane, foldable arm, 10 tons

10 Tons Truck Mounted Crane XCMG Construction Machinery

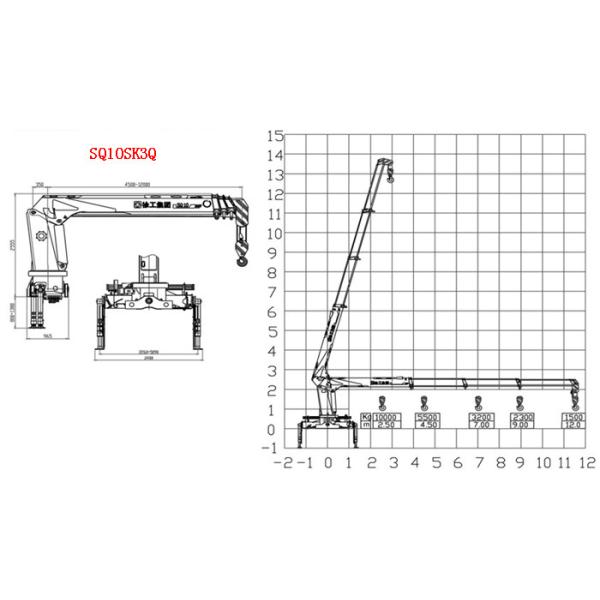

XCMG 10-ton 4-section straight arm truck-mounted crane: arm length 12 meters, maximum lifting height 14 meters.

10 Tons Truck Mounted Crane XCMG Construction Machinery

10 Tons Truck Mounted Crane XCMG Construction Machinery

  • 1. The extended arm technology can meet the needs of higher and farther operations;
  • 2. Operation linkage technology and hoisting and merging technology optimize the movement speed of each component and make the working efficiency higher;
  • 3. The new operation platform and humanized design make the operation more comfortable and convenient;
  • 4. The square box is fixed with outriggers, so that the whole vehicle has higher stability during operation;
  • 5. The new hydraulic system technology can realize the up and down self-locking; the action of the outriggers is parallel to improve efficiency;

10 Tons Truck Mounted Crane XCMG Construction Machinery10 Tons Truck Mounted Crane XCMG Construction Machinery10 Tons Truck Mounted Crane XCMG Construction Machinery

10 Tons Truck Mounted Crane XCMG Construction Machinery

Chassis Chassis Model ZZ1257N5841W (Left Hand Driving Type)
Cabin HW76 cab, with one sleeper
Engine Make: SINOTRUK
Engine WD615.69, Euro 2, 336HP
Transmission HW19710, 10F & 2R, with PTO
Steering ZF8118
Front Axle HF9, 9000 KGS
Rear Axle. HC16, 2X16000 KGS
Electrics Operating voltage: 24 V, negative grounded
Tires 12.00R20, Radial tires with one spare tire
Fuel Tank 400L
Crane Maximum lifting capacity (boom retracted ) 10,000kg
Boom Length 4700mm-12950mm
Maximum lifting height 13600mm
Rotation scope 360° rotation
Cargo Box Inside dimension 8000*2300*800mm, floor thickness 2.5mm, side corrugated sheets.
Overall Dimension 11970mm*2500mm*3850mm
Color Optional

10 Tons Truck Mounted Crane XCMG Construction Machinery

10 Tons Truck Mounted Crane XCMG Construction Machinery

  • 1, the whole truck warrenty is half year or 100000km, base on whichever comes first.
  • 2, professional sevice team, enough spare parts to make you away from future worries.
  • 3, professional trainning teachers for your drivers or engineers on repair and maintenance

10 Tons Truck Mounted Crane XCMG Construction Machinery

10 Tons Truck Mounted Crane XCMG Construction Machinery
